ZyXEL Communications ADSL2+ Access Router P-660R-T1 v2 Quick Start Manual

Adsl2+ access router
Hide thumbs Also See for ADSL2+ Access Router P-660R-T1 v2:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
P-660R-TxC Series
ADSL2+ Access Router

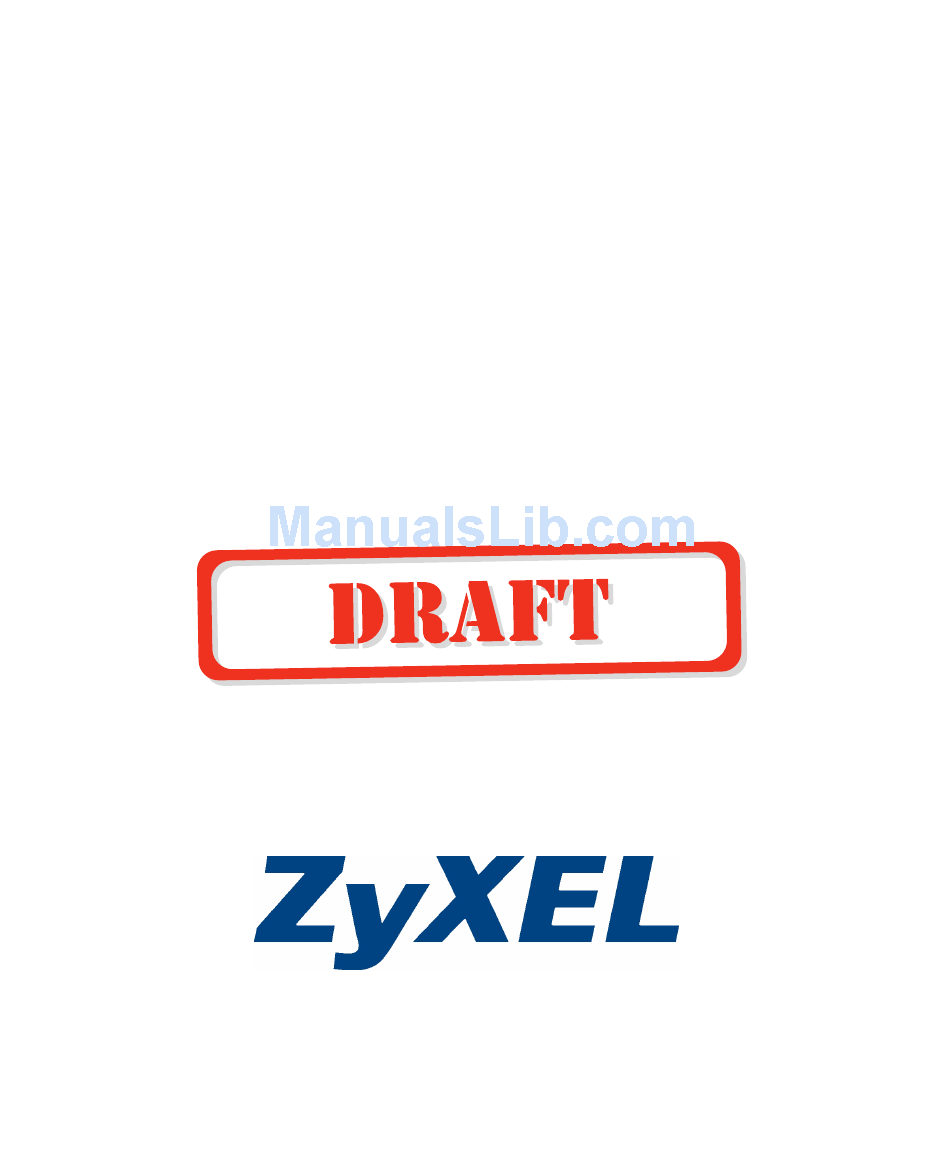

Quick Start Guide

Version 3.40
Edition 1
2/2006

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications ADSL2+ Access Router P-660R-T1 v2

Summary of Contents for ZyXEL Communications ADSL2+ Access Router P-660R-T1 v2

  • Page 1: Quick Start Guide

    P-660R-TxC Series ADSL2+ Access Router Quick Start Guide Version 3.40 Edition 1 2/2006...

  • Page 2: Hardware Connections

    Overview The P-660R-TxC ADSL2+ access router is the ideal device for small networks connecting to the Internet via ADSL. See your User’s Guide for background information on all features. 1 Hardware Connections If you prefer to see a multi-media animation of how to make hardware connections, see the included CD. 1 DSL: Use a telephone wire to connect your P-660R-TxC’s DSL port to a telephone jack (or to a splitter, if one is already installed).

  • Page 3: Zero Configuration

    Note: Configuration genie and Zero configuration are only able to configure the device automatically for Internet access if you are using PPPoE, PPPoA or ENET ENCAP encapsulation with a dynamically-assigned IP address from your ISP. If you’re not using these Internet access settings, then use the Web Configurator Internet Access Wizard to manually configure the device.
  • Page 4 2.3 Web Configurator Internet Access Wizard 2.3.1 Accessing the Web Configurator 1 Launch your web browser. Enter “192.168.1.1” as the web site address. Note: If you do not see the next screens, then please read 2 Click Login. 3 Type a new password (retype it to confirm) and click Apply. Otherwise click Ignore. You then see the main web configurator screen.
  • Page 5 2.3.2 Internet Access Setup 1 Configure the Internet access settings in this step. The wizard screens vary depending on the Mode and Encapsulation you chose in the first wizard screen. Note: Enter the Internet access information given to you by your ISP exactly in each wizard screen. If not given, leave the fields set to the default.
  • Page 6 PPPoE A) Select Routing, then PPPoE. B) Click Next. C) Enter the service name, username and password given by your ISP. D) If your ISP gave you an IP address, select Static IP Address and enter it. Otherwise, select Obtain an IP Address Automatically.
  • Page 7 Otherwise, select Connect on Demand and specify an idle time-out period (in seconds) in the Max. Idle Timeout field. F) If you selected Routing, select SUA Only when you have one public IP address, Full Feature when you have more than one public IP address (for translation) or None to disable NAT. G) Click Next.

  • Page 8: Troubleshooting

    4 Troubleshooting PROBLEM CORRECTIVE ACTION None of the LEDs turn on Make sure that you have the correct power adaptor connected to the P-660R-TxC, it is when you connect the P- plugged into an appropriate power source and the P-660R-TxC is turned on. 660R-TxC’s power.
  • Page 9 4 Select Internet Protocol (TCP/IP) (under the General tab in Windows XP) and click Properties. 5 The Internet Protocol TCP/IP Properties screen opens (the General tab in Windows XP). 6 Select the Obtain an IP address automatically and Obtain DNS server address automatically options. 7 Click OK to close the Internet Protocol (TCP/IP) Properties window.
