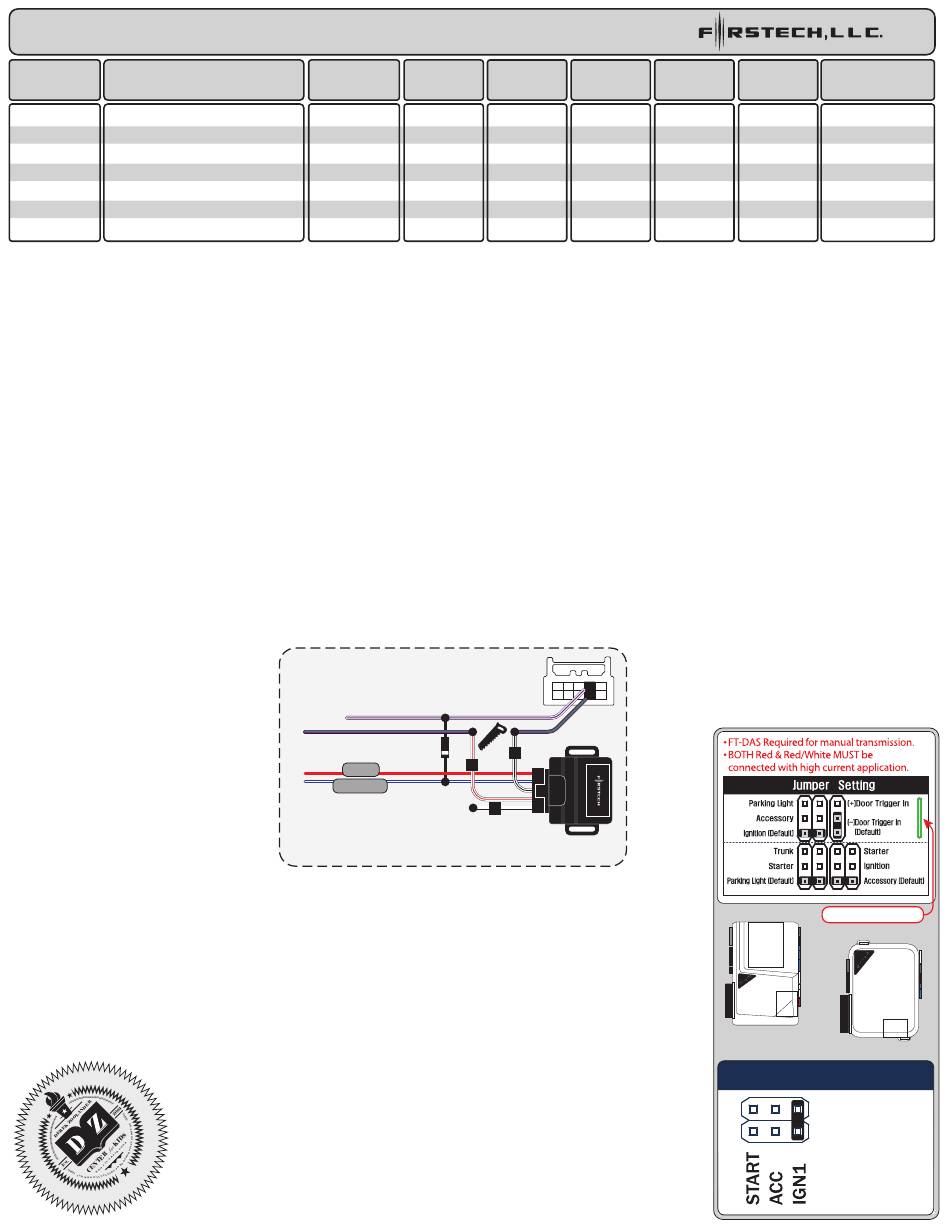

Firstech FTI-FDK1 1A3 Quick Start Manual

FTI-FDK1 Type 1A3 - Vehicle Coverage & Preparation Notes
Make Model
DL-FM2
Ford Explorer
Ford Sport Trac
Mercury Mountaineer
Hey! Read this stuff before you start the installation...
Firmware:
Covered vehicles use BLADE-AL(DL)-FM2 firmware, flash module and update the controller firmware before installing.
Controller Configuration:
Set feature 1-11 to option 2 (Ignition pulse - same timing as disarm pulse) for proper handling of OEM alarm.
Door Locks:
With Alarm: Door locks require three connections (1-unlock, 2-lock) and two diodes.
Without Alarm: Door locks require two wires and no diodes.
Brake:
Analog brake connection required, there are two possible connector types used, wire color is purple/white at the brake switch
connector, pin #4 of 4-pin connector, or pin #2 of the 2-pin connector, vehicle equipment varies.
Auto-Lights:
If vehicle is equipped with Auto-Light feature, refer to diagram for required connections.
Year Install
2006-10 Type 1
2007-10 Type 1
2006-10 Type 1
Auto-Light Detail
white/violet
violet/green
87a
+12V
STATUS
Lights
CAN
Park / Auto
OBD-II A
OBD-II A
OBD-II A
1 4
9 10
30
87
FT-RLY-10A
SUPPORT - 1(888) 820-3690, EXT. 203
I/O Changes
RAP Trunk
Green White/Blue
CM7000/7200 Cut loop for A/T
CM-900S/900AS
CM900AS/900S Jumper
