- Page 1 X7 Use’s Manual Please watch operation video in Website or YouTube Channel:Easythreed 3D 1 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
-
Page 2: Machine Placement

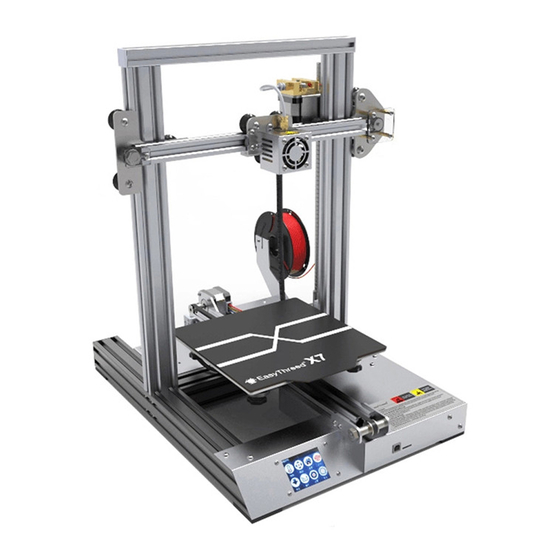

2,During the printing process and right after the printing process, please do not touch the interior structure and accessories of the printer to avoid scalding. 3, If the printer discharges smoke when printing, please turn off power switch immediately to stop printing and contact the dealer 2 / 10 www.easythreed.com 深圳市普伦特科技有限公司... - Page 3 1,Printer Introduction 1.1 Parts Of Printer Teflon feeding pipe Print head Hotbed platform Tnouch Scree USB port TF card Hotbed wire connector Filament Holder Power Power Switch Power Socket 3 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 4 ② Click Poin1, the print head will move to a conner of The platform. ③ Put a sheet of paper between the nozzle and the platform, the standard distance between the nozzle and the platform need to be the thickness of a sheet of paper . 4 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 5 After Leveling, you can more the print head from one conner to another conner , to check if the distance between the nozzle and platform is proper. 5 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 6 Teflon guide pipe. (5) Push the filament into the pipe as close as possible to the end of the print head, and then release the rocker arm. Extruder gear Teflon pipe rocker arm 6 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 7 (Note：feeding or retract need to be“preheat”, set the required target temperature. Different materials may require different temperatures. PLA material is 200 degrees, after the nozzle is heated to the set value ,then feeding or retract) 7 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 8 8 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 9 4.4，The guide rail can be added with engine oil for one time every half a year for anti-rusting and lubrication. 4.5，Recommended temperature for the working environment: 5℃-30℃, do not air the machine body with a fan during the printing process. 4.6，Recommended humidity for the working environment: 20%-80%. 9 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 10 If the platform is too close to the nozzle, there is no space for filament silk come out, you need adjust the distance between the nozzle and platform, the distance should be right the thickness of a sheet of paper. 10 / 10 www.easythreed.com 深圳市普伦特科技有限公司...
- Page 11 In Market, there are different level quality filament, Filament from Easythreed is the best choice, Manufacturer did a lot of test , Filament suitable for the Printer best. Thank you for choosing Easythreed 3D Printer Shenzhen Easythreed Technology CO.,Ltd http://www.easythreed.com Info@easythreed.com...
