Summary of Contents for EasyThreed NANO
- Page 1 USER'S MANUAL...

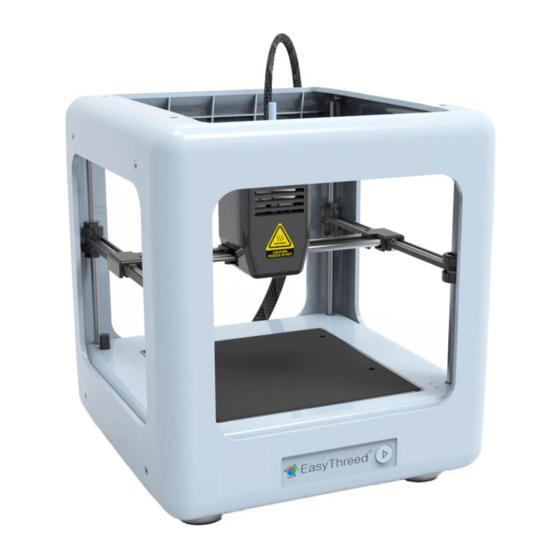

- Page 2 Thank you for purchasing E3D NANO 3d printer. NANO is a consumer 3D printer. It can make your custom creations come to life. Just plug in the printer, download the models, hit print and watch as you bring an object into the world through 3D printing.
- Page 3 1, Lift The NANO from its packaging box. Remove all bubble wrap, foam and tape (may require scissors). 2, Inside The NANO is an NANO 3d printer and an accessories box with a user manual, 3D filament, USB Cable, power adapter, SD card, SD card reader, scraper, filament holder and screw driver.
- Page 4 1, Plug the provided original NANO power adaptor into the power plug and the print button indicator light should be on. 2, To power off the NANO 3d printer, unplug the power adaptor from the back of the machine when it’s not operating.
- Page 5 4.2 Slicing model Download models from easythreed model library in SD card or to download from internet, then slicing in E3D Nano software and copy to SD card, please refer to the instruction of 3D NANO slicing...
- Page 6 Cura slicing is a good option for experts. 4.3 One key printing Press print button gently after SD card is inserted, Nano prints automatically after warm-up, while in printing status, the printing button in front will flash green light at steady rate, press print button to pause printing and press again to continue printing, press print button for 3 seconds to stop printing.
- Page 7 Do not leave the product running while unattended. (2) Precaution: None of components of the NANO 3D Printer or parts printed from it or using filaments are certified for food safety nor should they be regarded as food-safe therefore should not come in contact with the mouth or foods/liquids that will be ingested by humans or animals.
- Page 8 8.0 FAQ Q1:why the printing head cannot move after pressing the printing button in initial printing? A: Please remove the clips in front left and right before using the machine. The clips are for transportation protection. Q2: How to feed the filament and how to judge filament fed successfully? A: First, straighten the filament and gently push into the feeding hole at the same time, use the other hand to slide the switch(at the back of printer)to “FEED”...
- Page 9 when it is too close and too far? A: The standard distance between the nozzle and printing bed is the thickness of a piece of A4 paper, Insert a piece of paper between the bed and the nozzle, with normal pull and with resistance as the standard in the condition that do not scratch bed.
- Page 10 Q11: Can the model continue printing if electricity is cut off? A: If there is no electricity in the process of printing, the models cannot continue printing. Q12: Can pause printing in the process of printing? A: Yes, shortly press the printing button, it will pause. Then shortly press again, it will continue printing.
- Page 11 .gcode , Select the file, click right mouse, and select to open with notepad. Enter the following characters: G28 X0 Y0; G28 Z0; Save and exit. Copy this file to the SD card, press the print button, the printer’s X Y Z axis begins to zero. THANK YOU FOR USING E3D NANO www.easythreed.com...
