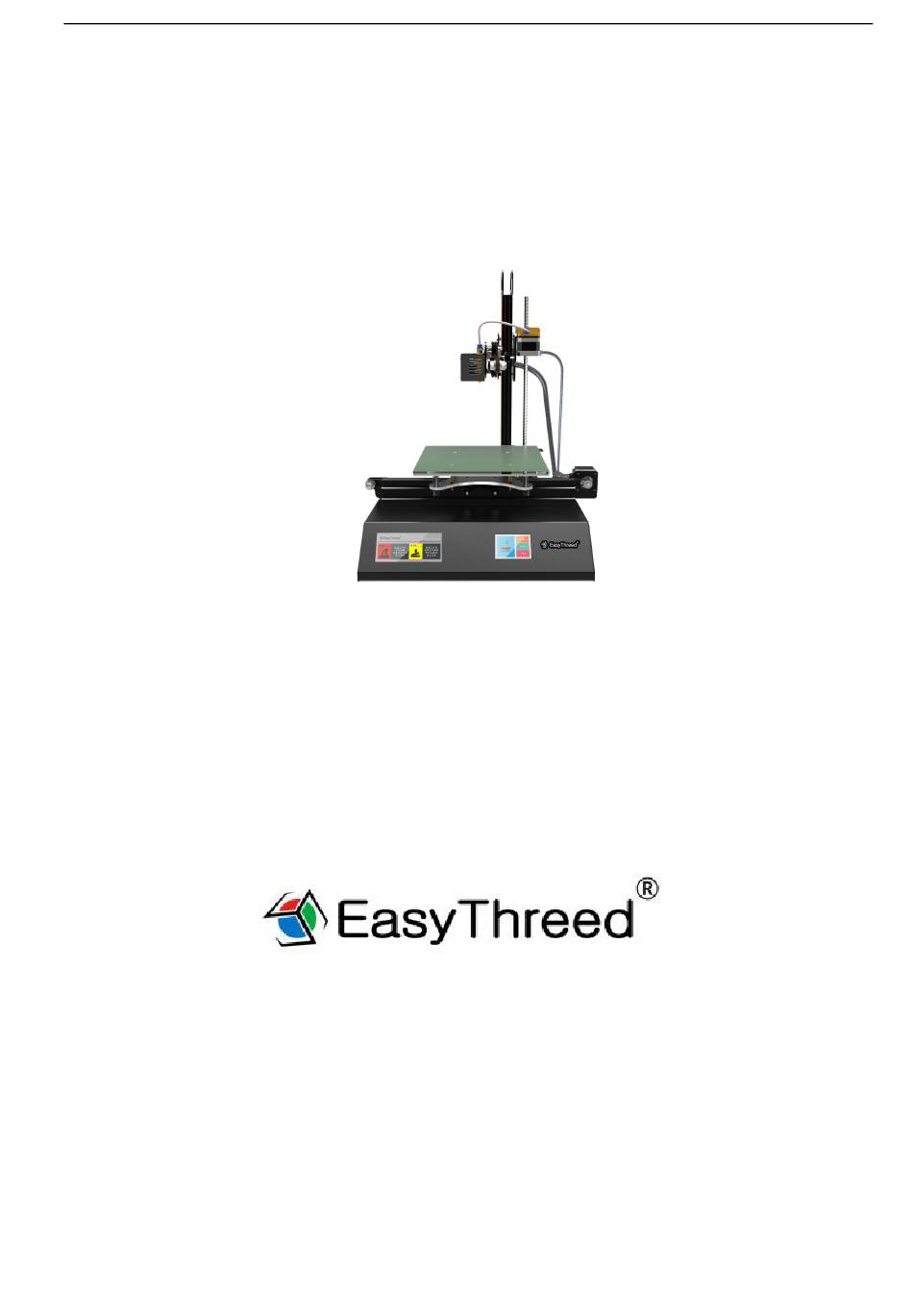

- Page 1 QUICK START GUIDE QUICK START GUIDE VERSION 1.4 Mars（ET2000）3D PRINTER Please read this User’s Manual carefully before use. Please keep this User’s Manual properly for future reference. Pictures are for reference only, subject to our available products.
-
Page 2: Table Of Contents
QUICK START GUIDE 1 Table of Contents SAFETY INSTRUCTIONS............................１ Machine placement..........................１ Specification for use of power supply....................１ Instructions during printing........................１ PRODUCT INTRODUCTION............................Name of main components........................Basic Parameter............................３ UNPACKING AND INSTALLATION..........................３ INTRODUCTION OF STARTING UP THE PRINTER...................... Power On.............................. -
Page 3: Safety Instructions
QUICK START GUIDE SAFETY INSTRUCTIONS Before installing and using this machine, make sure to read the following contents. Please do not use this machine with the methods not described in this User’s Manual. Try you best to avoid possible physical injury and property losses. -
Page 4: Product Introduction
QUICK START GUIDE 3. PRODUCT INTRODUCTION Name of main components Filament -sending bracket Teflon Feeding Tube Print Head Printing Platform LCD Display Power switch SD card Power port ２ | P a g e... -
Page 5: Basic Parameter
QUICK START GUIDE 3.2 Basic Parameter Print parameters Working environment - Working temperature: 5 °C- 35°C, Relative humidity: 30%-90% Electric parameters Power input: 110-240V AC, 50/60Hz; Power output: 24V/DC, 12.5A Maximum power: 300W Nozzle diameter 0.4mm Print material PLA,ABS Extruder temperature 180-230°C Filament diameter... - Page 6 QUICK START GUIDE 5. After loosen the screws, one hand to catch the root of Z 6. Turn Z axis to vertical and plug into the slots axis, one hand to catch the Middle of Z axis, then use force where pulled out just now, First tighten the 3 to pull out Z axis(the aluminum profile).
- Page 7 QUICK START GUIDE 11. Get the handle parts from accessories box 12.Put them to the end of Z axis then drive the screw tightly. M5 screw 14. Adjust the Platform to be levele 13.Put glue on the platform by PVP glue sticks to assure the d(Please find the models would not moved while printing, or to use the blue detailed way of step 14 below called -D12)
- Page 8 QUICK START GUIDE 17. Turn on the power of 3d printer 18. Then insert SD card and to choose one model to print. D-11 : how to put glue and tape to the platform? （1）The way of putting PVP glue stick (as below images) (a), use scraper knife to clean platform before putting stick, but if there are too much residue, please to wash it under the running water.
- Page 9 QUICK START GUIDE Glass platform tapes D12: How to level the platform? (1) The 4 points A,B,C and D needs to be leveled, first put power on, comes to the auto page, click Setup button, then comes to setup page. (2) Click handset button, then comes to the below image.
- Page 10 QUICK START GUIDE clockwise then platform goes down, screw anti-clockwise then platform goes up), Print head A4 Paper Glass platform (4)Choose the following 4 points to check and adjustment. (4.1) Adjust Point A, pull the extruder gently in X axis to point A(above), then observe the distance between platform and nozzle, its the thickness of a piece of A4 paper, if the distance is too big, then needs to rotate (anti-clockwise) its below screws to make platform up, if the distance is too small, then needs to rotate(clockwise) its below screws to make platform down.
- Page 11 QUICK START GUIDE (2)Put the Nuts insert into the slot of base, to Insert M3 screw from the side panel. Fasten the side panels and base, then get bridge through the center hole of filament holder, then finally to put the bridge insert the side panels. D14, How to put the filament into the hose of 3d printer? (1), Put the assembled filament holder at the back of the 3d printer.
-
Page 12: Introduction Of Starting Up The Printer
QUICK START GUIDE 5. INTRODUCTION OF STARTING UP THE PRINTER Power On Plug the power cord->Insert SD card->Power Switch on. The 3d printer starts up, as follows, Touch LCD Display, goes to operation page, click setup, it comes the following. ... -
Page 13: Printing
QUICK START GUIDE 5.2 Printing Select the Model icon to go to Model page, select the desired model to print from the list. pulunte 5.3 Instruction of LCD Display The above images shows the common control function, Customer could adjust per their own need, if any questions, please contact our after-sales department. -
Page 14: Faq
QUICK START GUIDE Remark Directory 5. Flat head shovel 6. Plastic nippers 7. Card reader 8. SD card Quantity 1 pcs 1 pcs 1 pcs 1 pcs Remark 10. Small wrench and Directory 9. Data cable 11.Filament holder 12、Instruction manual tweezers Quantity 1 pcs... - Page 15 With the maturity of 3D printing, FDM printing supplies on the market is rich and multiple color, But the compatibility of supplies and printers is particularly important. Thank you for choosing EasyThreed 3D Printer! Shenzhen EasyThreed Technology Co., Ltd. Website: http://www.easythreed.com Tel: 86-755-89882011 No.
