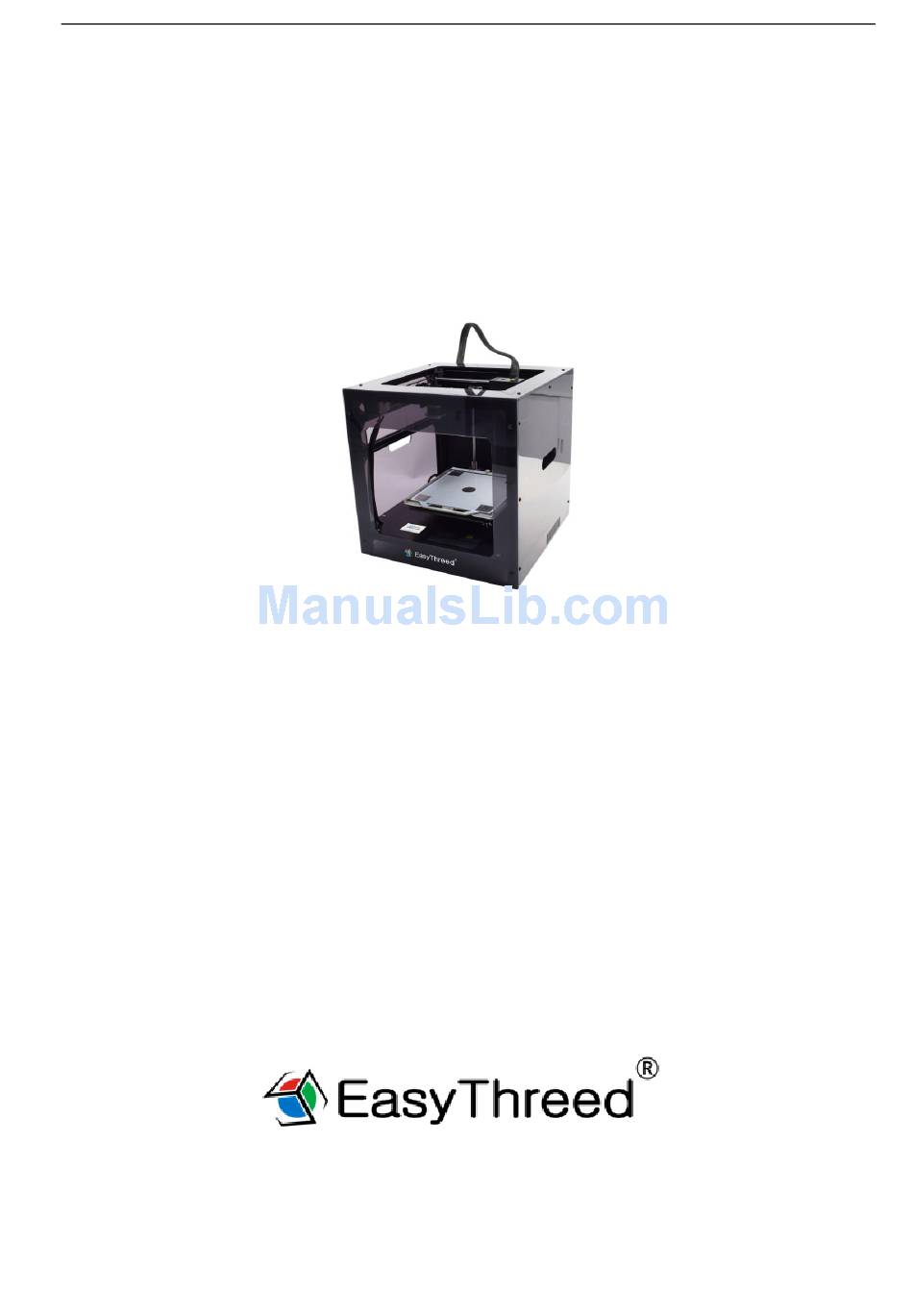

QUICK START GUIDE
QUICK START GUIDE
VERSION 1.1
WATERCUBE 3D PRINTER
Please read this User's Manual carefully before use.
Please keep this User's Manual properly for future reference.
Pictures are for reference only, subject to our available products.

Advertisement

Table of Contents
loading

Related Manuals for EasyThreed WATERCUBE

Summary of Contents for EasyThreed WATERCUBE

  • Page 1 QUICK START GUIDE QUICK START GUIDE VERSION 1.1 WATERCUBE 3D PRINTER Please read this User’s Manual carefully before use. Please keep this User’s Manual properly for future reference. Pictures are for reference only, subject to our available products.

  • Page 2: Table Of Contents

    QUICK START GUIDE Table of Contents SAFETY INSTRUCTIONS......................１ Machine placement ....................１ Specification for use of power supply ................ １ Instructions during printing ..................１ PRODUCT INTRODUCTION ..................... １ Name of main components ..................１ Basic Parameter ......................２ UNPACKING AND INSTALLATION.....................

  • Page 3: Safety Instructions

    QUICK START GUIDE SAFETY INSTRUCTIONS Before installing and using this machine, make sure to read the following contents. Please do not use this machine with the methods not described in this User’s Manual. 1.1 Machine placement  When moving the machine, pay attention to handle it gently to avoid touching the interior structure of the printer.

  • Page 4: Basic Parameter

    QUICK START GUIDE Cable Locker Filament spool Power Switch Power Socket 2.2 Basic Parameter  Print parameters Working environment - Working temperature: 5 °C- 35°C, Relative humidity: 30%-90%  Electric parameters Power input: 110-240V AC, 50/60Hz; Power output: 24V/DC, 8A Maximum power: 300W Nozzle diameter 0.4mm...

  • Page 5: Unpacking And Installation

    QUICK START GUIDE UNPACKING AND INSTALLATION 1. Open the packing box and check if it is sealed. 2. Unwrap the packing box to take out the manual and check if the accessories are complete. 3 Take out the top accessory box and then take out 4.

  • Page 6: Introduction Of Starting Up The Printer

    QUICK START GUIDE INTRODUCTION OF STARTING UP THE PRINTER Power On  Plug the power cord -> Insert SD card -> Power Switch on. The 3D printer starts up, as follows,  Touch LCD Display, goes to operation page, click setup, it comes the following. ...
  • Page 7 QUICK START GUIDE  Click handset, goes to XYZ adjustment operation page, click back after operation completed. “+” forward direction ， “-" reverse direction， “H” axis to be zero， “Back” to the setup page， “Unlock” release the motor and can move by hand. ...

  • Page 8: Printing

    QUICK START GUIDE  Click help to go to help operation page, click back after operation completed and goes to home page. PRINTING ①Select the Model icon to go to Model page, select the desired model to print from the list. It takes a few minutes to wait for the temperature goes to the preset temperature.

  • Page 9: Instruction Of Lcd Display

    QUICK START GUIDE 5.1 Instruction of LCD Display The above images shows the common control function, Customer could adjust per their own need, if any questions, please contact our after-sales department. MAINTANANCE  Do not try to use the methods those not described in this manual to disassembly or modify this machine, in order to avoid damage to the printer or other more serious accidents.

  • Page 10: Faq

    QUICK START GUIDE Remark Q1: Why is the printing model not adhesive to the platform? A1 - The distance between nozzle and platform in not accurate, Adjust the distance between them to assure that the distance is just enough to get through a calibrated film. You can use Auto Calibration function to adjust this. Q2: Why the filament do not come out from the nozzle? A1 - Check the filament feeder of heating and feeding filament.
  • Page 11 With the maturity of 3D printing, FDM printing supplies on the market is rich and multiple color, But the compatibility of supplies and printers is particularly important. Thank you for choosing EasyThreed 3D Printer! Shenzhen EasyThreed Technology Co., Ltd. www.easythreed.com Tel: +86 755 89882011 No.
