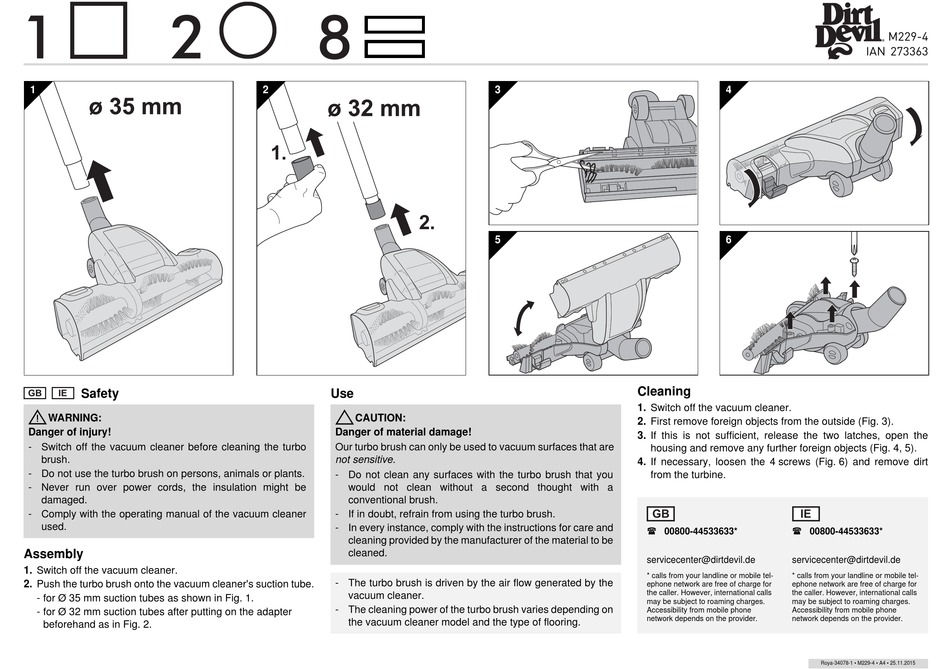

Dirt Devil Fello Manual

1 2
1
GB IE
Safety
WARNING:
Danger of injury!
- Switch off the vacuum cleaner before cleaning the turbo
brush.
- Do not use the turbo brush on persons, animals or plants.
- Never run over power cords, the insulation might be
damaged.
- Comply with the operating manual of the vacuum cleaner
used.
Assembly
1. Switch off the vacuum cleaner.
2. Push the turbo brush onto the vacuum cleaner's suction tube.
- for Ø 35 mm suction tubes as shown in Fig. 1.
- for Ø 32 mm suction tubes after putting on the adapter
beforehand as in Fig. 2.
8
2
1.
2.
Use
CAUTION:
Danger of material damage!
Our turbo brush can only be used to vacuum surfaces that are
not sensitive.
- Do not clean any surfaces with the turbo brush that you
would not clean without a second thought with a
conventional brush.
- If in doubt, refrain from using the turbo brush.
- In every instance, comply with the instructions for care and
cleaning provided by the manufacturer of the material to be
cleaned.
- The turbo brush is driven by the air flow generated by the
vacuum cleaner.
- The cleaning power of the turbo brush varies depending on
the vacuum cleaner model and the type of flooring.
3
5
Cleaning
1. Switch off the vacuum cleaner.
2. First remove foreign objects from the outside (Fig. 3).
3. If this is not sufficient, release the two latches, open the
housing and remove any further foreign objects (Fig. 4, 5).
4. If necessary, loosen the 4 screws (Fig. 6) and remove dirt
from the turbine.
GB
 00800-44533633*
servicecenter@dirtdevil.de
* calls from your landline or mobile tel-
ephone network are free of charge for
the caller. However, international calls
may be subject to roaming charges.
Accessibility from mobile phone
network depends on the provider.
M229-4
IAN 273363
4
6
IE
 00800-44533633*
servicecenter@dirtdevil.de
* calls from your landline or mobile tel-
ephone network are free of charge for
the caller. However, international calls
may be subject to roaming charges.
Accessibility from mobile phone
network depends on the provider.
Roya-34078-1 • M229-4 • A4 • 25.11.2015
