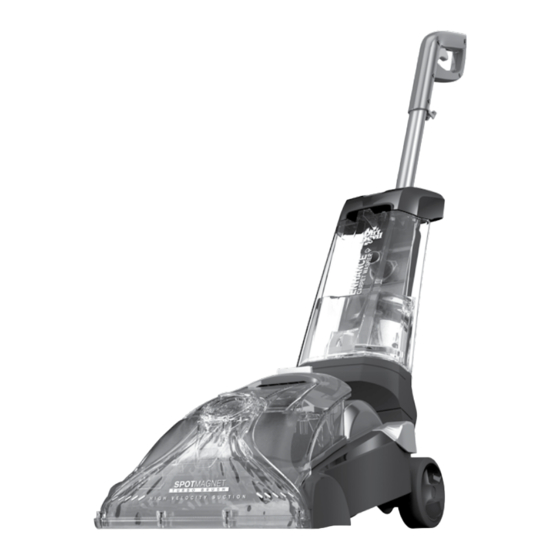

- Page 1 CARPET WASHER Model #’s FD50100 FD50105 FD50110 MANUAL #961151127 / ID109742 / R0 ©2014 All rights reserved...
-
Page 2: Warranty Registration
Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone. Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be required for warranty service of your Dirt Devil product. ®... -
Page 3: Table Of Contents
TABLE OF CONTENTS Quick Start Assembly Preparing the Carpet How to Remove and Replace Clean Water Solution Tank Empty the Dirty Water Tank Place Dirty Water Tank in Base of Cleaner Remove the Brushroll Replace the Belt Trouble Shooting Limited Warranty... -
Page 4: Important Safety Instructions
• Use indoors only. • Do not immerse. Use only on carpet moistened by cleaning process. • Use only DIRT DEVIL® cleaning products intended for use with this machine. (See the “Cleaning Products” section of this manual.) • Do not use a flammable or combustible liquid to clean a floor. - Page 5 CAUTION: TO REDUCE THE RISK OF DAMAGE: • Avoid picking up hard, sharp objects with this product, as they may cause damage. • Store in a dry place. Do not expose machine to freezing temperatures. • Do not use sharp objects to clean out hose as they can cause damage. •...
- Page 6 NEED HELP? Go to dirtdevil.com/support or contact our Customer Service Department at (800) 321-1134 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat. 10:00 a.m. - 6:00 p.m. EST. POP THE BACK PANEL SCREW IT INTO THE BASE. TOGETHER.
-
Page 7: Solution Tank
WARNING CAUTION To reduce the risk of fire, electric shock, or To reduce the risk of damage: Do not use this injury: ensure the power cord is out of the extractor on hard floors. Using this machine on way before attaching the upper handle. hard floors may scratch or damage your floors. - Page 8 HANDLE RELEASE PEDAL POWER PLUG UNIT IN. STEP PULL TRIGGER TO SPRAY SOLUTION WHILE ON THE HANDLE MOVING FORWARD. RELEASE PEDAL AND THEN SLOWLY RELEASE PULL BACK ON THE THE TRIGGER AND PULL UPPER HANDLE. THEN YOUR CARPET WASHER STEP ON THE POWER BACK TO REMOVE DIRTY BUTTON TO TURN ON.
- Page 9 CAUTION Never leave unit unattended with power on. Turn OFF when emptying and filling tank. Do NOT oversaturate the carpet. If the sound of the motor changes to a high pitch, this indicates the dirty water tank is full and must be emptied. YOUR CARPET IS FRESH...
-
Page 10: Preparing The Carpet
1. Vacuum carpet thoroughly 2. Place plastic or foil under with a Dirt Devil cleaner. and around the legs of ® furniture until the carpet has completely dried. HELPFUL HINTS FOR CLEANING CARPET • Plan your route so you • Do not oversaturate your don’t walk over previously... -
Page 11: After Cleaning
WARNING CAUTION Do not use the carpet cleaner as a Do not store the carpet cleaner in garage dry vacuum. or area where unit could freeze. AFTER CLEANING • Allow carpet to dry completely. Try not to walk on the carpet until it is dry. -
Page 12: Remove And Replace Clean Water Solution Tank
REMOVE AND REPLACE CLEAN WATER SOLUTION TANK 1. Press the Clean Water 2. Tip it out like this. Tank latch. - Page 13 WARNING To reduce the risk of fire and electric shock due to internal component damage, use only Dirt Devil brand cleaning fluid intended for use with this appliance. See Cleaning Fluid Section for recommended solutions. 3. Unscrew measuring 4. For a full size room, cap from the back.
-
Page 14: Empty The Dirty Water Tank
EMPTY THE DIRTY WATER TANK 1. Pull the latch to release. 2. Hold the handle and pull tank up and out. 3. Pull lid out and 4. Rinse the tank and empty like this. filter with hot tap water. Wipe and let dry before storing to prevent mildew. -
Page 15: Place Dirty Water Tank In Base Of Cleaner
WARNING IMPORTANT You will hear a noticeable change in the pitch of To reduce risk of personal injury - the cleaner. This indicates a need to empty the unplug cleaner before servicing. Do dirty water tank. not use any chemicals when cleaning. PLACE DIRTY WATER TANK IN BASE OF CLEANER 1. -
Page 16: Remove The Brushroll
CAUTION To reduce the risk of injury from moving parts, unplug cleaner before servicing. Rotate brushroll manually to make sure belt is not twisted or pinched. REMOVE THE BRUSHROLL Note: Be sure to switch off the unit, unplug & remove the clean &... -
Page 17: Replace The Belt
REPLACE THE BELT 1. Take off cover (Refer to 2. Place the new belt on page 16). Remove and the motorshaft, then slip toss the old belt out. it in the area without brushroll bristles. 3. With belt in place, pull and 4. -
Page 18: Trouble Shooting
Tank - Pg. 14. high-pitched WARNING TO REDUCE THE RISK OF FIRE AND ELECTRICAL SHOCK DUE TO INTERNAL COMPONENT DAMAGE, USE ONLY DIRT DEVIL BRAND DETERGENT PRODUCTS ® INTENDED FOR USE WITH THE APPLIANCE. Dirt Devil Cleaning Product Guide ®... -
Page 19: Limited Warranty
Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada. HOW TO MAKE A WARRANTY CLAIM If this product is not as warranted, take or send the product to a Dirt Devil Authorized Warranty ®... - Page 20 Find GENUINE Replacement Parts at www.dirtdevil.com This product uses the following parts: BELT STYLE PRE-MOTOR FILTER Call our Customer Service OUR VACS SPEAK VOLUMES Department (800) 321-1134 Pick Up the Conversation On… 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat.
