- Page 1 Podcast Microphone The Shure Hybrid USB/XLR cardioid microphone, MV7, user guide. Version: 1.1 (2021-A)
-
Page 2: Table Of Contents
System Requirements and Compatibility: Android Auto Level Mode Specifications Near MV7 Yoke Assembly Additional Tips Accessories Furnished Accessories The Shure MOTIV Desktop App Replacement Parts Mic Setup: Auto Level Optional Accessories Mic Setup: Manual Monitor Mix Blend Certifications EQ Modes... -
Page 3: Mv7 Podcast Microphone
Switchable EQ filters High-pass filter and voice boost emphasis (presence boost) options in Manual mode Connect Your MV7 Plug the included Micro-B USB cable into your MV7. Connect the other end of the Micro-B USB cable to your laptop. Plug your headphones into the monitor output. -
Page 4: Quick Setup
Quick Setup Use the correct cable to plug the microphone into your computer. The LEDs on the MV7 will pulse when the connection is made. Download the app at https://wwww.shure.com/MOTIVdesktop. Your computer may request permission to use the external device the first time the app is opened. -
Page 5: Controls
Note: Auto Level Mode can only be enabled through the MOTIV Desktop Application. The MV7 Microphone The MV7 features a dynamic capsule with a cardioid pattern, which uses Voice Isolation Technology to pick up sound directly in front of the microphone. MV7 Outputs •... -
Page 6: Windscreen
Auto Level Mode Use the following suggestions as a great starting point for your most common MV7 needs. Keep in mind that there are many effective ways to mic a voice. The closer you can get to the microphone, the better, but Auto Level Mode really helps to get you sounding your best. -
Page 7: Far
Shure offers educational articles and publications on recording techniques for a variety of instruments and applications. Visit Shure Educational Articles for more information. The Shure MOTIV Desktop App Use the Shure MOTIV desktop app to quickly adjust microphone settings. The device stores the most recently used settings for quick setup. 7/18... -
Page 8: Mic Setup: Auto Level
Shure Incorporated Mic Setup: Auto Level ① Settings Click the three dots to access MOTIV software information, manage presets, application preferences and check for firmware updates. ② Mic Selection/Settings Lock Use the drop-down menu to access settings for your microphone. Click the lock to lock and unlock selected settings. -
Page 9: Mic Setup: Manual
Shure Incorporated Mic Setup: Manual ① Settings Click the three dots to access MOTIV software information, manage presets, application preferences and check for firmware updates. ② Mic Selection/Settings Lock Use the drop-down menu to access settings for your microphone. Click the lock to lock and unlock selected settings. -
Page 10: Eq Modes
Shure Incorporated Use the monitor mix slider to adjust how much of each source you can hear. For best results, start monitoring at the midpoint and adjust. • Move the slider towards the microphone icon (Mic) to hear more of the audio going into the mic. Like when you're singing over a recorded guitar track and want to clearly hear your voice. -
Page 11: Mv7 Tips
Note: Windows update 10 v2004 (April 2020) solves this problem. See the MV7 Yoke Assembly topic for step by step instructions for re-assembling your yoke Microphone has become and assorted washers. Correct washer assembly is crucial to ensure that your microphone is detached from the yoke. -
Page 12: Firmware Update
Check for firmware update. Tap the three dots in the top right corner and select About MOTIV > Check for Update Note: Contact Shure Service and Repair if you continue to experience any issues. Firmware Update Take advantage of additional features and design enhancements by updating the firmware on your MOTIV Desktop Application when prompted. A notification will appear when a firmware update is available. You have the option to download the update im-... -
Page 13: System Requirements And Compatibility: Android
Shure Incorporated Note: iPad Pro (USB-C) is not supported. System Requirements and Compatibility: Android Will work with any Android device that has: • Android Oreo 8.0 and higher • USB Host Power Requirement of ≥100 mA • USB Audio Class 1.1 support and higher Android is a trademark of Google Inc. - Page 14 Shure Incorporated Mute Switch Attenuation Limiter Compressor Power Requirements Powered through USB or Lightning connector Housing All metal construction Mounting Type 5/8-27 thread mount Net Weight 0.55 kg (1.21 lbs) 1 Pa=94 dB SPL At Minimum Gain, Flat Mode Bit Depth Sampling Rate 48 kHz...
-
Page 15: Mv7 Yoke Assembly

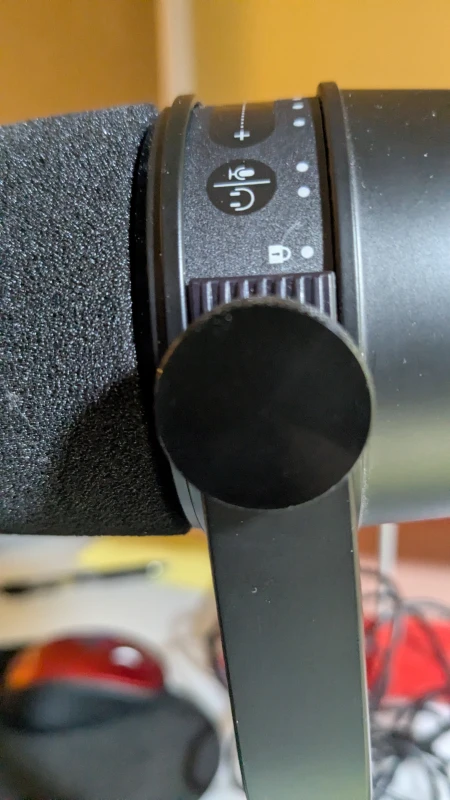

Shure Incorporated Typical Polar Pattern Overall Dimensions MV7 Yoke Assembly The MV7 yoke allows a podcaster to be flexible with mic placement. Loosen the yoke knobs and you can adjust the micro- phone in a variety angles. If the microphone becomes detached from the yoke, these are the steps to put it together in the cor- rect order to ensure that your microphone is secure. Each side uses one thin gray spring washer, one shiny silver brass wash- er, two black plastic washers and the yoke and threaded yoke knob. Start with the threaded knob flat side down on your tabletop. Stack the washers on the threaded knob. -
Page 16: Accessories
Shure Incorporated Using your finger to hold the screw assembly in place, slide the MV7 onto the threaded screw and turn the knob to keep washers in place. Note: Be sure to keep this side on but loose so that you have room to easily move the yoke and assemble the washers on the opposite side. -
Page 17: Certifications
Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per- formance. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str. - Page 18 Shure Incorporated iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc.,registered in the U.S. and other countries. iPad Air, iPad mini, and Lightning are trademarks of Apple Inc. The trademark “iPhone” is used in Japan with a license from Aiphone K.K. Android Compatibility This equipment is compatible with Android devices that support USB Audio Class 2.0 and USB-C connectivity. Not all Android devices are compatible.
