User Manual of Product 1:
Shure MV7 USB Microphone with Tripod, for Podcasting,
Recording, Streaming & Gaming, Built-in Headphone Output,
All Metal USB/XLR Dynamic Mic, Voice-Isolating Technology,
TeamSpeak Certified - Black
User Manual of Product 2:
Shure AONIC 50 Wireless Noise Cancelling Headphones,
Premium Studio-Quality Sound, Bluetooth 5 Wireless
Technology, Comfort Fit Over Ear, 20 Hours Battery Life,
Fingertip Controls - White
Advertisement
Chapters
Table of Contents
Related Manuals for Shure MV7
Summary of Contents for Shure MV7
- Page 1 User Manual of Product 1: Shure MV7 USB Microphone with Tripod, for Podcasting, Recording, Streaming & Gaming, Built-in Headphone Output, All Metal USB/XLR Dynamic Mic, Voice-Isolating Technology, TeamSpeak Certified - Black User Manual of Product 2: Shure AONIC 50 Wireless Noise Cancelling Headphones,...
- Page 2 Podcast Microphone The Shure podcast microphone, MV7, user guide. Version: 2.2 (2021-K)
-
Page 3: Table Of Contents
Specifications Auto Level Mode MV7 Yoke Assembly Near Accessories Additional Tips Furnished Accessories Replacement Parts The Shure MOTIV Desktop App Optional Accessories Mic Setup: Auto Level Mic Setup: Manual Certifications Monitor Mix Blend Information to the user EQ Modes 2/18... -
Page 4: General Description
Switchable EQ filters High-pass filter and voice boost emphasis (presence boost) options in Manual mode Connect Your MV7 Plug the included Micro-B USB cable into your MV7. Connect the other end of the Micro-B USB cable to your laptop. Plug your headphones into the monitor output. -
Page 5: Quick Setup
Quick Setup Use the correct cable to plug the microphone into your computer. The LEDs on the MV7 will pulse when the connection is made. Download the app at https://wwww.shure.com/MOTIVdesktop. Your computer may request permission to use the external device the first time the app is opened. -
Page 6: Controls

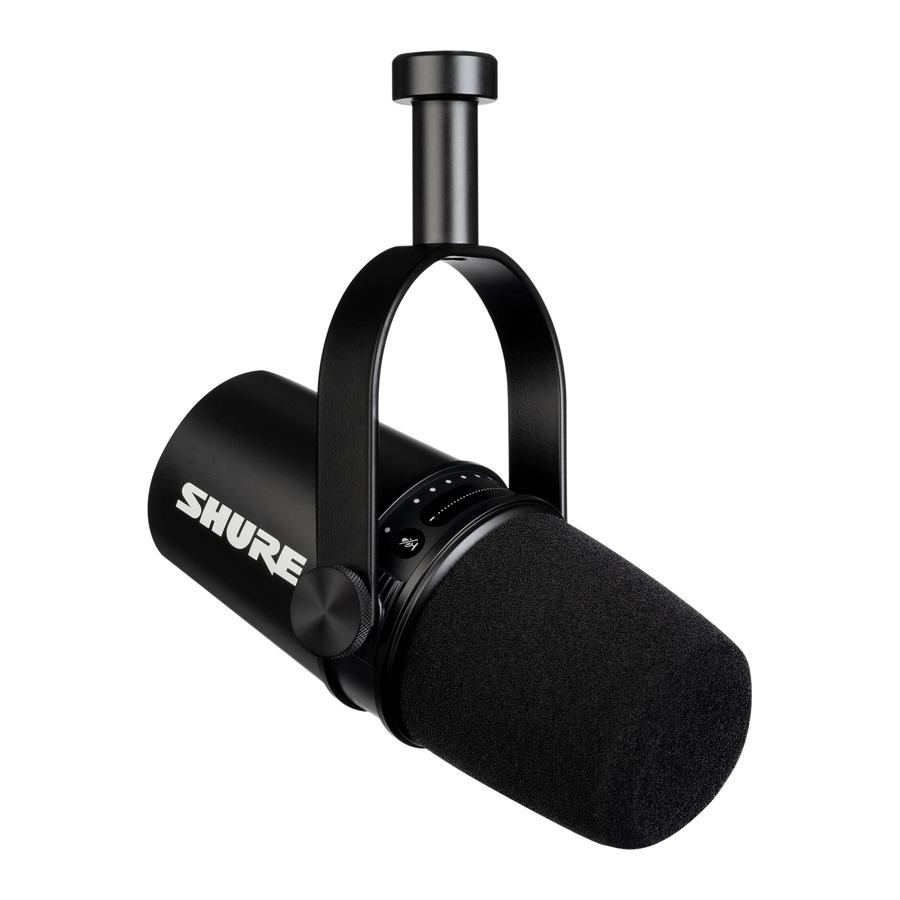

Note: For information on dB values related to the Touch Panel slider, see the Touch Panel Values table in the Specifications appendix. The MV7 Microphone The MV7 features a dynamic capsule with a cardioid pattern, which uses Voice Isolation Technology to pick up sound directly in front of the microphone. -
Page 7: Mounting Instructions
Auto Level Mode Use the following suggestions as a great starting point for your most common MV7 needs. Keep in mind that there are many effective ways to mic a voice. The closer you can get to the microphone, the better, but Auto Level Mode really helps to get you sounding your best. -
Page 8: Near
Shure Incorporated Near For podcast and voice recording applications. Position the MV7 in front of and as close to your face as possible. Speak directly into the mic, 1-6 inches (2.54 - 15 cm) away for a more intimate voice sound with maximum rejection of off-axis sounds. Speak- ing closer to the microphone results in more bass response, similar to voices on a radio broadcast. Make additional gain ad- justments if necessary. Ideal when the sound source is further from the microphone, like in gaming when the person needs to be closer to the screen or gaming console. -
Page 9: The Shure Motiv Desktop App
Shure Incorporated The Shure MOTIV Desktop App Use the Shure MOTIV desktop app to quickly adjust microphone settings. The device stores the most recently used settings for quick setup. Mic Setup: Auto Level ① Settings Click the three dots to access MOTIV software information, manage presets, application preferences and check for firmware updates. -
Page 10: Mic Setup: Manual
Shure Incorporated ⑧ Tone Adjust the tonal qualities of your audio by selecting Dark, Natural or Bright tone. Tone controls a variety of settings to quickly dial in the sound that works best for your voice. ⑨ LED Behavior Turn on Live meters to use your Touch Panel for mic gain metering. Use Night mode to lower the brightness of your Touch Panel. -
Page 11: Monitor Mix Blend
Shure Incorporated Monitor Mix Blend Use the monitor mix slider to adjust how much of each source you can hear. For best results, start monitoring at the midpoint and adjust. • Move the slider towards the microphone icon (Mic) to hear more of the audio going into the mic. Like when you're singing over a recorded guitar track and want to clearly hear your voice. -
Page 12: Advanced Mic Settings
Choose no compression, or select light, medium or heavy compression to control volume when your sound source is dynamic. Quiet signals are boosted and loud signals are lowered, resulting in a denser, louder sound. MV7 Tips Control your Levels To ensure consistent volume levels, keep the microphone as close to your face as possible. -
Page 13: Firmware Update
Solution Note: Windows update 10 v2004 (April 2020) solves this problem. See the MV7 Yoke Assembly topic for step by step instructions for re-assembling your yoke Microphone has become and assorted washers. Correct washer assembly is crucial to ensure that your microphone is detached from the yoke. -
Page 14: System Requirements And Compatibility: Ios
Shure Incorporated • 64 bit • Minimum 2 GB of RAM • Minimum 500 MB of hard disk space System Requirements and Compatibility: iOS • iOS: iOS 14 and higher • iPhone: iPhone 6s and higher • iPod Touch: 7th gen Note: iPad Pro (USB-C) is not supported. - Page 15 Shure Incorporated Maximum SPL, Digital Output 132 dB SPL [2] Headphone Output 3.5 mm (1/8″) Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Mute Switch Attenuation Limiter Compressor Power Requirements Powered through USB or Lightning connector Housing...
- Page 16 Shure Incorporated Typical Frequency Response Typical Polar Pattern Overall Dimensions Slider LED Color dB Value Yellow -6 dB Yellow -12 dB Yellow -18 dB Green -24 dB Green -30 dB Green -39 dB Green -48 dB Green -90 dB 15/18...
-
Page 17: Mv7 Yoke Assembly
Place the flat silver washer and then the thin spring washer on the threaded knob. Using your finger to hold the screw assembly in place, slide the MV7 onto the threaded screw and turn the knob to keep washers in place. -
Page 18: Accessories
Shure Incorporated Accessories Furnished Accessories 10 foot Micro-B to USB-A cable 95A45110 10 foot Micro-B to USB-C cable 95B38076 Replacement Parts Black Windscreen AMV7-K-WS Silver Windscreen AMV7-S-WS Optional Accessories 1 m Lightning cable AMV-LTG Certifications Information to the user This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. - Page 19 This microphone for use with any microphone stand with a 5/8" threaded adapter. Note: Testing is based on the use of supplied and recommended cable types. The use of other than shielded (screened) cable types may degrade EMC per- formance. This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Global Compliance Jakob-Dieffenbacher-Str.
- Page 20 AONIC 50 Wireless Headphones The Shure AONIC 50 Wireless Noise-cancelling Headphones user guide (Model: SBH2350). Version: 1.6 (2022-B)
- Page 21 SAFETY PRECAUTIONS Active noise cancellation WARNING Create Custom Presets CAUTION Adjusting EQ IMPORTANT SAFETY INSTRUCTIONS Preset Modes For Products That Use Bluetooth Updating the Firmware for Shure AONIC products CAUTION WARNING Cable connections Certifications Care and Maintenance LIMITED WARRANTY 2/17...
-
Page 22: Bluetooth Pairing
Power off the AONIC 50 headphones Press and hold the AONIC 50 power button for 6 seconds When you hear "Bluetooth pairing mode," release the button Select "Shure 50" on the cellular phone When successfully paired, you hear "Connected" Disable Bluetooth on your cellular phone... -
Page 23: Using The Buttons
Shure Incorporated Using the Buttons Power button Power on Press and hold, 2 seconds Power off Press and hold, 2 seconds Turn off the headphones Pair Bluetooth Press and hold, 6 seconds Check battery status Double press (audible status notification) -
Page 24: Led Indicator
The ShurePlus PLAY Mobile Listening App is a high-resolution music player with advanced EQ controls. Play uncompressed audio files with your iOS or Android mobile device using the music tab. Use built-in Shure EQ presets to customize the sound, or create your own EQ presets in the settings tab. Unlock environment mode and ANC features by connecting to Shure wire... -
Page 25: Environment Mode
Shure Incorporated • Create playlists and organize your music library by playlist, artist, album title, song title, genre, or composer • Quickly dial in your sound with EQ preset modes for a variety of listening situations. Environment mode Environment mode allows you to accentuate the ambient noise around you. This is especially useful when you want to listen to music or are on a phone call, yet you still want to be aware of the sounds around you. -
Page 26: Create Custom Presets
Tap Save to name and save your new custom preset. Custom presets will show up after the list of Shure presets. Duplicate a Preset You can duplicate both Shure and custom presets. Duplicating a preset is convenient if you like the way a preset sounds but you want to make and keep adjustments to the sound. -
Page 27: Adjusting Eq
Shure Incorporated Adjusting EQ Select and adjust frequency, gain, and bandwidth in the equalizer. Equalization Explained The 4-band parametric equalizer is used to adjust the volume of independent, adjustable frequency ranges, to precisely shape the frequency response. The equalizer can be bypassed for a flat frequency response. -
Page 28: Preset Modes
Loudness the overall sound feel louder. Updating the Firmware for Shure AONIC products Take advantage of additional features and design enhancements by updating the firmware on your AONIC product. To check for firmware updates, connect the AONIC product to a device running the ShurePlus PLAY app, available for Android and iOS. - Page 29 Shure Incorporated After a successful update, the “Update Completed” confirmation screen appears. ◦ Do not power off the AONIC product until the update completes. ◦ Do not put the adapters back into the case during firmware update. It will cancel the update. ◦ Note: If the update fails on the first attempt, be sure to quit the app completely before attempting again. You may need to force quit the app to confirm that it isn’t running in the background. Wait 5 minutes before opening the app ...
-
Page 30: Cable Connections
• Ensure that your mobile device is using the most current operating system (OS). Contact Shure Service and Repair if you experience any issues. Cable connections The headphones can also use two different cables to access audio instead of using the wireless feature: •... -
Page 31: Frequently Asked Questions - Faq
Shure Incorporated Frequently Asked Questions - FAQ For more information, or to view other Frequently Asked Questions, visit the Shure FAQ. Storage Store headphones in protective case when not in use. Accessories Furnished Accessories REPL SBH2350 CASE ONLY RPH-SBH2350-CASE REPL USB-C to USB-A CABLE 1M RPH-CABLE-USB REPL 2.5-3.5MM CABLE 1.5M... - Page 32 Shure Incorporated Driver Size 50 mm Frequency Response 20 to 22,000 Hz Sensitivity @ 1 kHz 97.5 dB/mW Impedance @ 1 kHz 39 Ω Maximum Input Power 100 mW Weight 334 g (11.8oz.) Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -10°C to 45°C (14°F to 113°F)
-
Page 33: Safety Precautions
Shure Incorporated SAFETY PRECAUTIONS Before using this product, please read and save the enclosed warnings and safety instructions. WARNING FOR ALL EARPHONES! Use, clean, and maintain earphones according to manufacturer’s instructions. SAFETY PRECAUTIONS The possible results of incorrect use are marked by one of the two symbols—"WARNING" and "CAUTION"—depending on the imminence of the danger and the severity of the damage. WARNING: Ignoring these warnings may cause severe injury or death as a result of incorrect op eration. CAUTION: Ignoring these cautions may cause moderate injury or property damage as a result of incorrect operation. -
Page 34: For Products That Use Bluetooth
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure. Note: Battery replacement to be performed only by Shure authorized service personnel. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 35: Certifications
At its sole option, Shure will repair or replace the defective product and promptly return it to you. In order for this warranty to be valid, the consumer must, at the time the product is returned, provide proof of purchase in the form of the original purchase re... - Page 36 Shure Incorporated ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DIS CLAIMED TO THE EXTENT PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT NOT PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or conse...
