Display Panel - Yamaha RX V2095RDS Owner's Manual

GETTING STARTED

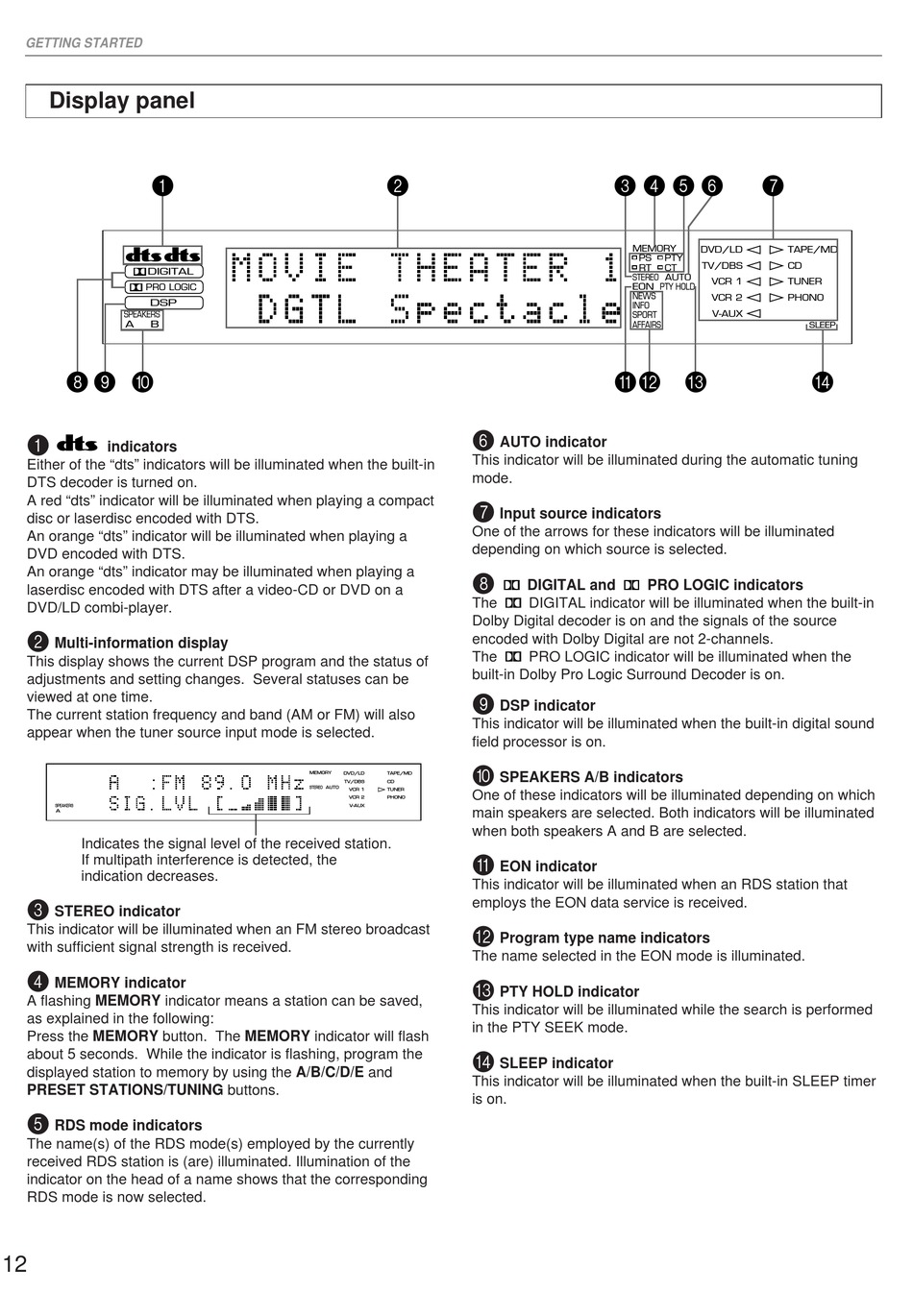

Display panel

1
DIGITAL
PRO LOGIC
DSP
SPEAKERS
A B
8 9 0
1
indicators
Either of the "dts" indicators will be illuminated when the built-in
DTS decoder is turned on.
A red "dts" indicator will be illuminated when playing a compact
disc or laserdisc encoded with DTS.
An orange "dts" indicator will be illuminated when playing a
DVD encoded with DTS.
An orange "dts" indicator may be illuminated when playing a
laserdisc encoded with DTS after a video-CD or DVD on a
DVD/LD combi-player.
2
Multi-information display
This display shows the current DSP program and the status of
adjustments and setting changes. Several statuses can be
viewed at one time.
The current station frequency and band (AM or FM) will also
appear when the tuner source input mode is selected.
SPEAKERS
A
Indicates the signal level of the received station.
If multipath interference is detected, the
indication decreases.
3
STEREO indicator
This indicator will be illuminated when an FM stereo broadcast
with sufficient signal strength is received.
4
MEMORY indicator
A flashing MEMORY indicator means a station can be saved,
as explained in the following:
Press the MEMORY button. The MEMORY indicator will flash
about 5 seconds. While the indicator is flashing, program the
displayed station to memory by using the A/B/C/D/E and
PRESET STATIONS/TUNING buttons.
5
RDS mode indicators
The name(s) of the RDS mode(s) employed by the currently
received RDS station is (are) illuminated. Illumination of the
indicator on the head of a name shows that the corresponding
RDS mode is now selected.
12
2
6
This indicator will be illuminated during the automatic tuning
mode.
7
One of the arrows for these indicators will be illuminated
depending on which source is selected.
8
The
Dolby Digital decoder is on and the signals of the source
encoded with Dolby Digital are not 2-channels.
The
built-in Dolby Pro Logic Surround Decoder is on.
9
This indicator will be illuminated when the built-in digital sound
field processor is on.
0
MEMORY
DVD/LD TAPE/MD
TV/DBS CD
STEREO AUTO
VCR 1 TUNER
One of these indicators will be illuminated depending on which
VCR 2 PHONO
V-AUX
main speakers are selected. Both indicators will be illuminated
when both speakers A and B are selected.
A
This indicator will be illuminated when an RDS station that
employs the EON data service is received.
B
The name selected in the EON mode is illuminated.
C
This indicator will be illuminated while the search is performed
in the PTY SEEK mode.
D
This indicator will be illuminated when the built-in SLEEP timer
is on.
3 4 5 6
MEMORY
PS PTY
RT CT
STEREO AUTO
EON PTY HOLD
NEWS
INFO
SPORT
AFFAIRS
A B
AUTO indicator
Input source indicators
DIGITAL and PRO LOGIC indicators
DIGITAL indicator will be illuminated when the built-in
PRO LOGIC indicator will be illuminated when the
DSP indicator
SPEAKERS A/B indicators
EON indicator
Program type name indicators
PTY HOLD indicator
SLEEP indicator
7
DVD/LD TAPE/MD
TV/DBS CD
VCR 1 TUNER
VCR 2 PHONO
V-AUX
SLEEP
C D
