CONTROLS AND FUNCTIONS

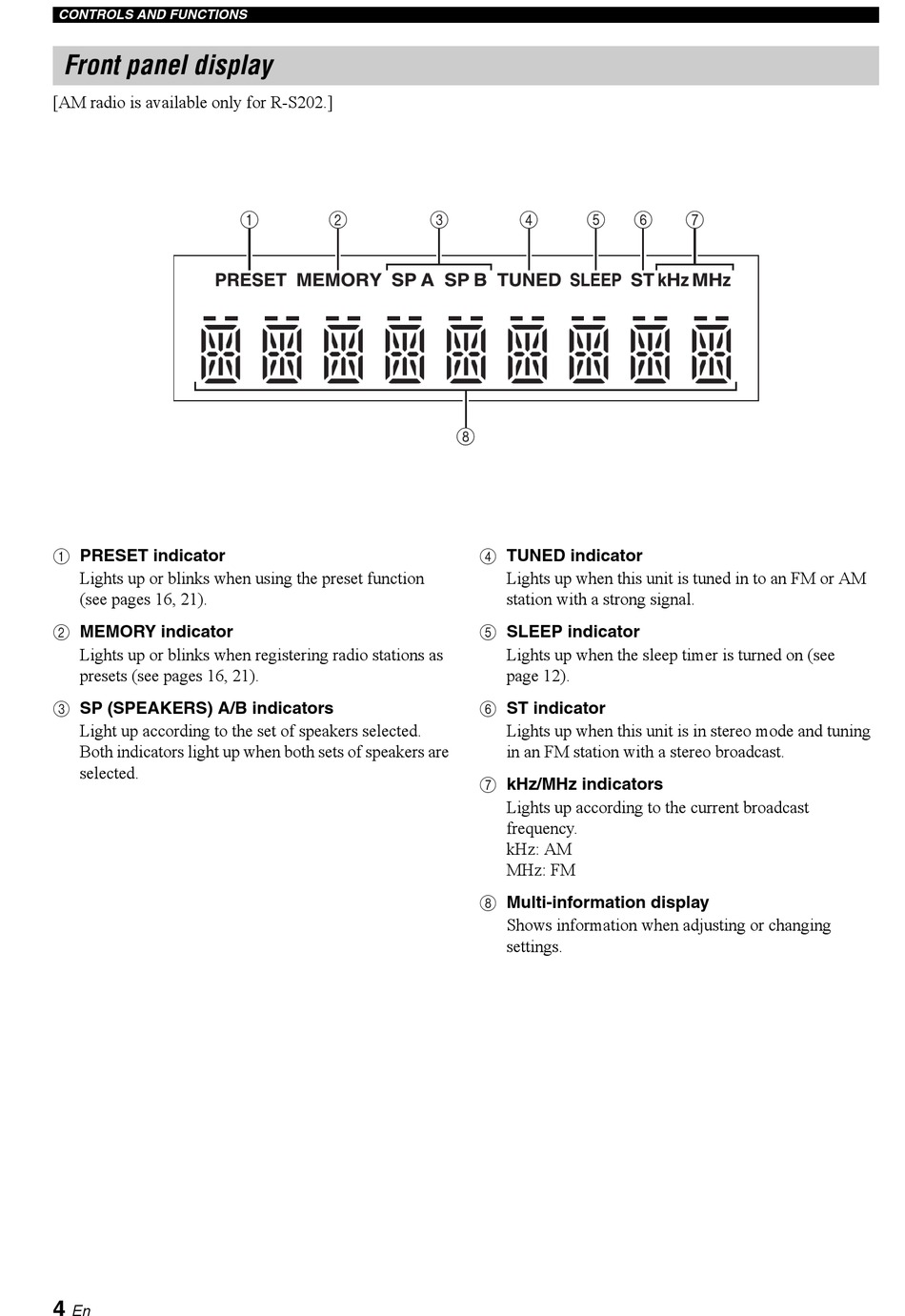

Front panel display

[AM radio is available only for R-S202.]
1 PRESET indicator
Lights up or blinks when using the preset function
(see pages 16, 21).
2 MEMORY indicator
Lights up or blinks when registering radio stations as
presets (see pages 16, 21).
3 SP (SPEAKERS) A/B indicators
Light up according to the set of speakers selected.
Both indicators light up when both sets of speakers are
selected.
4
En
4 TUNED indicator
Lights up when this unit is tuned in to an FM or AM
station with a strong signal.
5 SLEEP indicator
Lights up when the sleep timer is turned on (see
page 12).
6 ST indicator
Lights up when this unit is in stereo mode and tuning
in an FM station with a stereo broadcast.
7 kHz/MHz indicators
Lights up according to the current broadcast
frequency.
kHz: AM
MHz: FM
8 Multi-information display
Shows information when adjusting or changing
settings.
