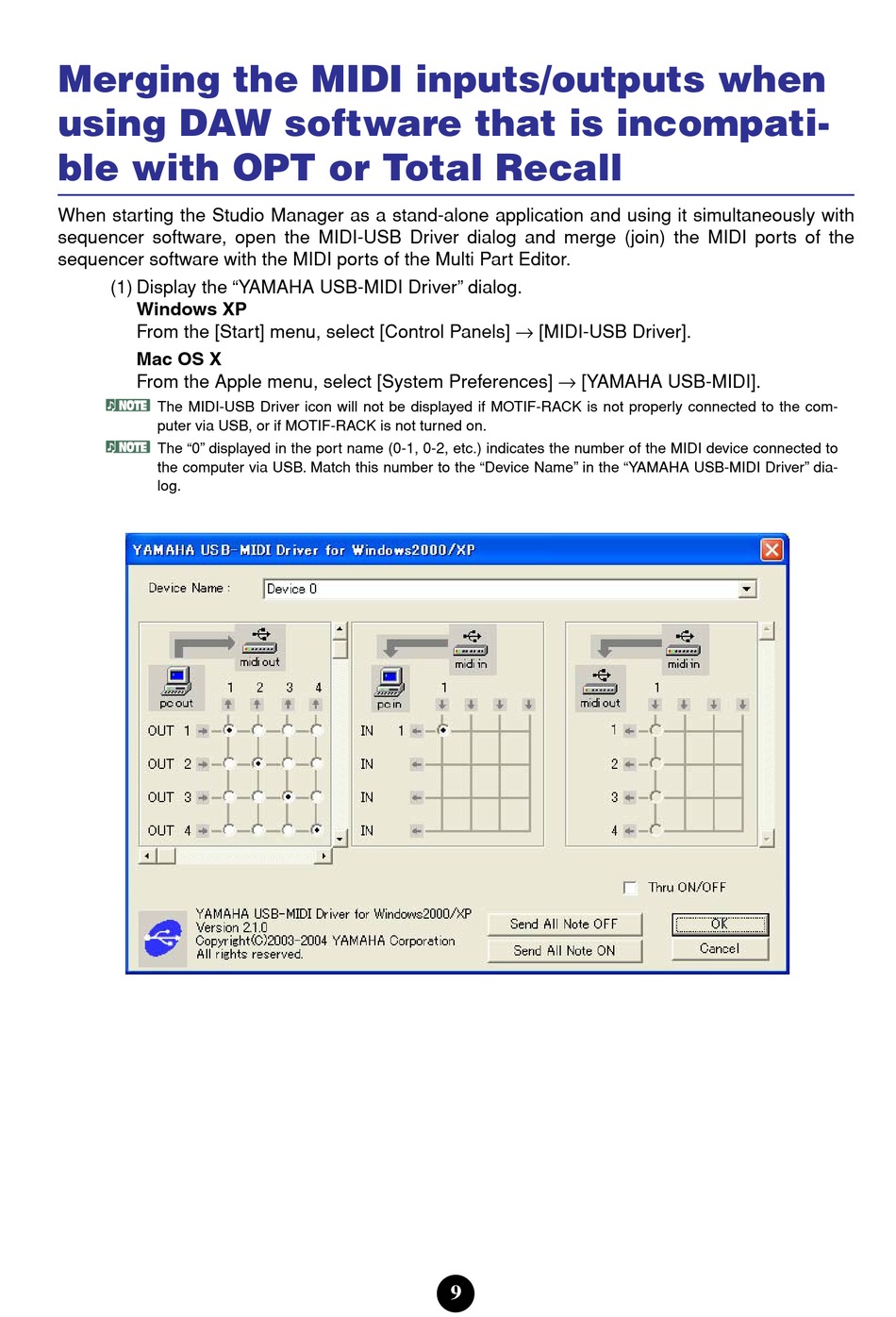

Merging the MIDI inputs/outputs when
using DAW software that is incompati-
ble with OPT or Total Recall
When starting the Studio Manager as a stand-alone application and using it simultaneously with
sequencer software, open the MIDI-USB Driver dialog and merge (join) the MIDI ports of the
sequencer software with the MIDI ports of the Multi Part Editor.
(1) Display the "YAMAHA USB-MIDI Driver" dialog.
Windows XP
From the [Start] menu, select [Control Panels] → [MIDI-USB Driver].
Mac OS X
From the Apple menu, select [System Preferences] → [YAMAHA USB-MIDI].
n
The MIDI-USB Driver icon will not be displayed if MOTIF-RACK is not properly connected to the com-
puter via USB, or if MOTIF-RACK is not turned on.
n
The "0" displayed in the port name (0-1, 0-2, etc.) indicates the number of the MIDI device connected to
the computer via USB. Match this number to the "Device Name" in the "YAMAHA USB-MIDI Driver" dia-
log.
