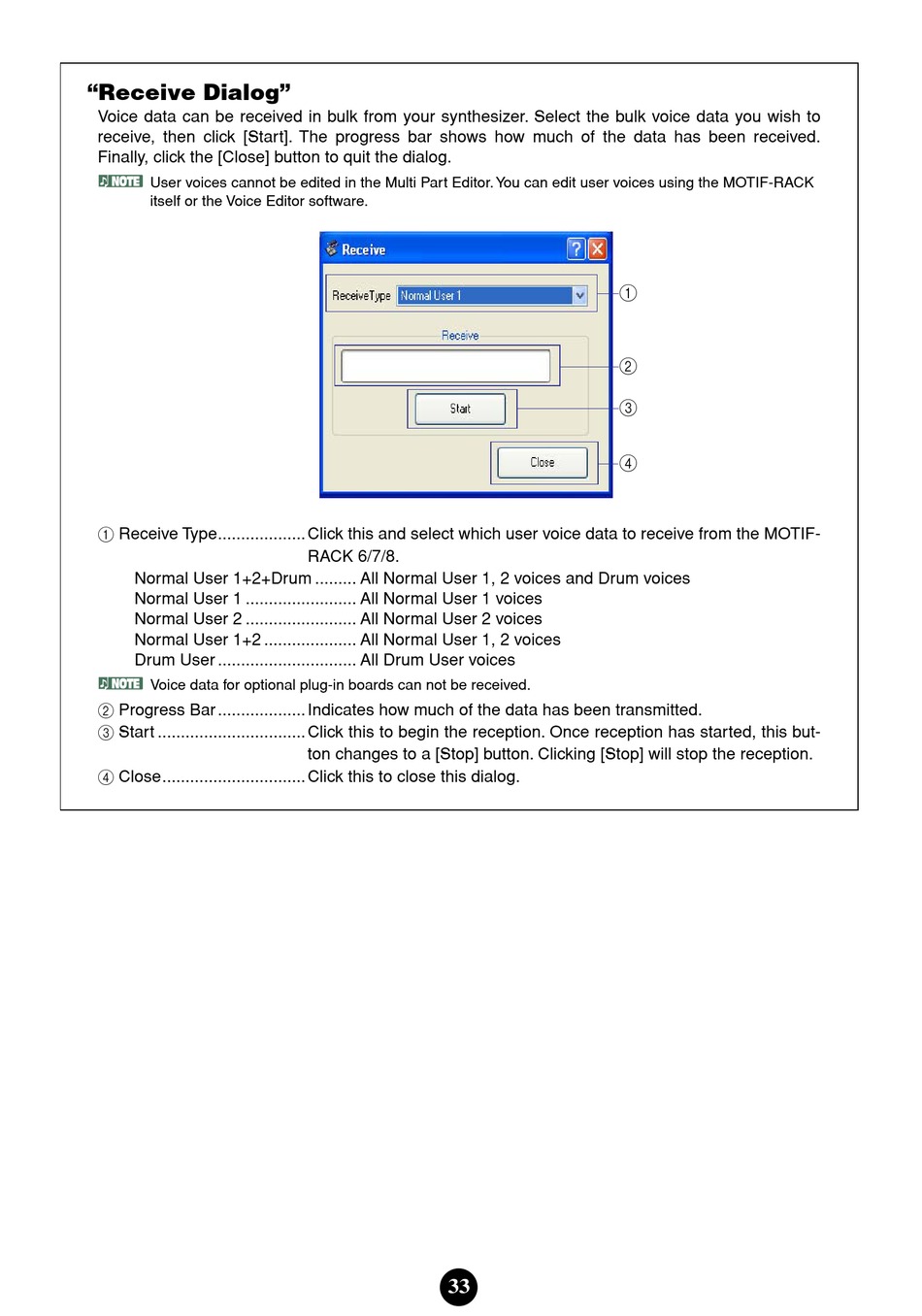

Yamaha MOTIF RACK Music System Owner's Manual page 33

"Receive Dialog"
Voice data can be received in bulk from your synthesizer. Select the bulk voice data you wish to
receive, then click [Start]. The progress bar shows how much of the data has been received.
Finally, click the [Close] button to quit the dialog.
n
User voices cannot be edited in the Multi Part Editor. You can edit user voices using the MOTIF-RACK
itself or the Voice Editor software.
1 Receive Type................... Click this and select which user voice data to receive from the MOTIF-
Normal User 1+2+Drum ......... All Normal User 1, 2 voices and Drum voices
Normal User 1 ........................ All Normal User 1 voices
Normal User 2 ........................ All Normal User 2 voices
Normal User 1+2 .................... All Normal User 1, 2 voices
Drum User .............................. All Drum User voices
n
Voice data for optional plug-in boards can not be received.
2 Progress Bar ................... Indicates how much of the data has been transmitted.
3 Start ................................ Click this to begin the reception. Once reception has started, this but-
4 Close............................... Click this to close this dialog.
RACK 6/7/8.
ton changes to a [Stop] button. Clicking [Stop] will stop the reception.
33
1
2
3
4
