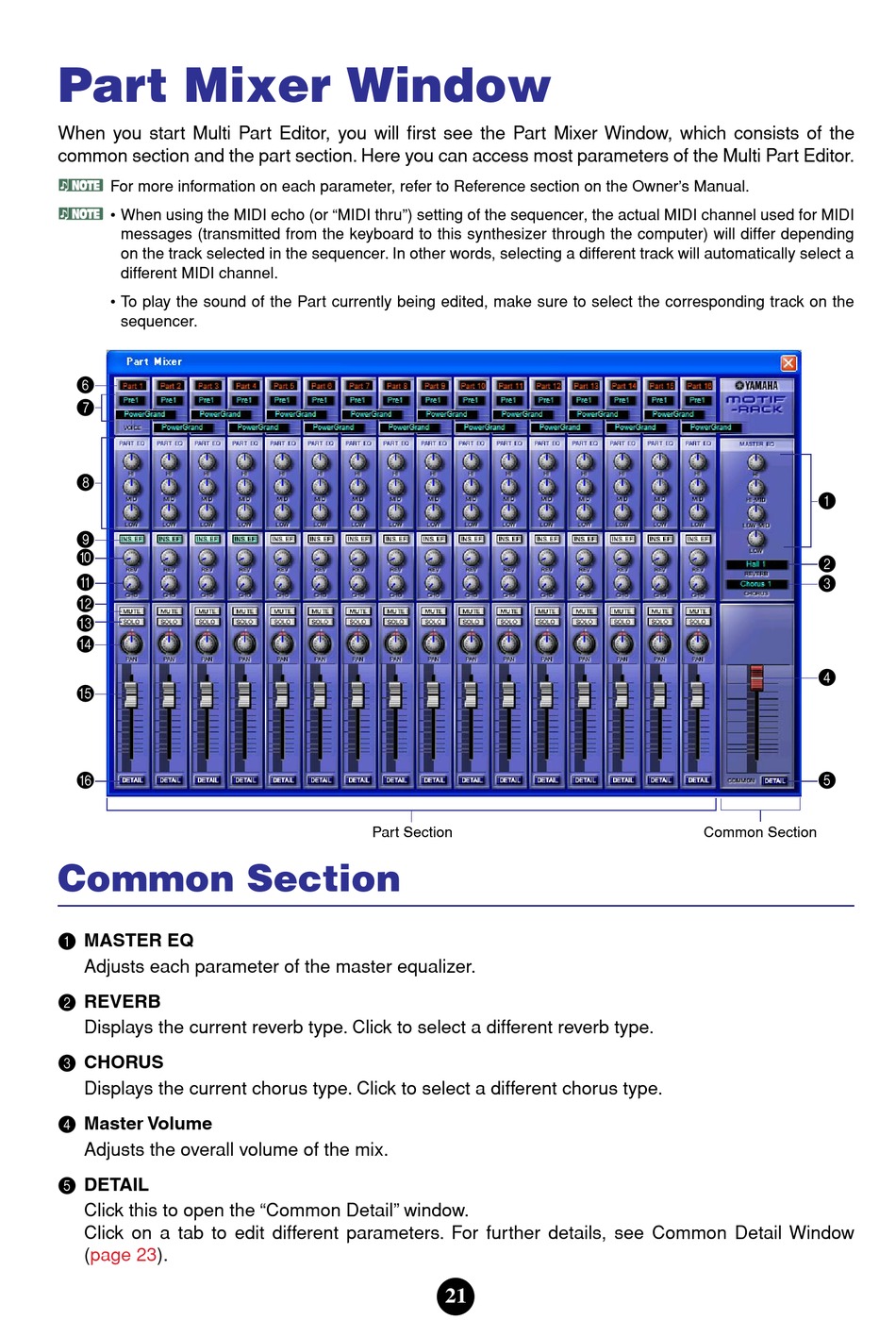

Part Mixer Window

When you start Multi Part Editor, you will first see the Part Mixer Window, which consists of the
common section and the part section. Here you can access most parameters of the Multi Part Editor.
n
For more information on each parameter, refer to Reference section on the Owner's Manual.
n
• When using the MIDI echo (or "MIDI thru") setting of the sequencer, the actual MIDI channel used for MIDI
messages (transmitted from the keyboard to this synthesizer through the computer) will differ depending
on the track selected in the sequencer. In other words, selecting a different track will automatically select a
different MIDI channel.
• To play the sound of the Part currently being edited, make sure to select the corresponding track on the
sequencer.
6
7
8
9
0
A
B
C
D
E
F
Common Section
1 MASTER EQ
Adjusts each parameter of the master equalizer.
2 REVERB
Displays the current reverb type. Click to select a different reverb type.
3 CHORUS
Displays the current chorus type. Click to select a different chorus type.
4 Master Volume
Adjusts the overall volume of the mix.
5 DETAIL
Click this to open the "Common Detail" window.
Click on a tab to edit different parameters. For further details, see Common Detail Window
(page 23).
Part Section
21
1
2
3
4
5
Common Section
