Dialogs - Yamaha MOTIF RACK Music System Owner's Manual

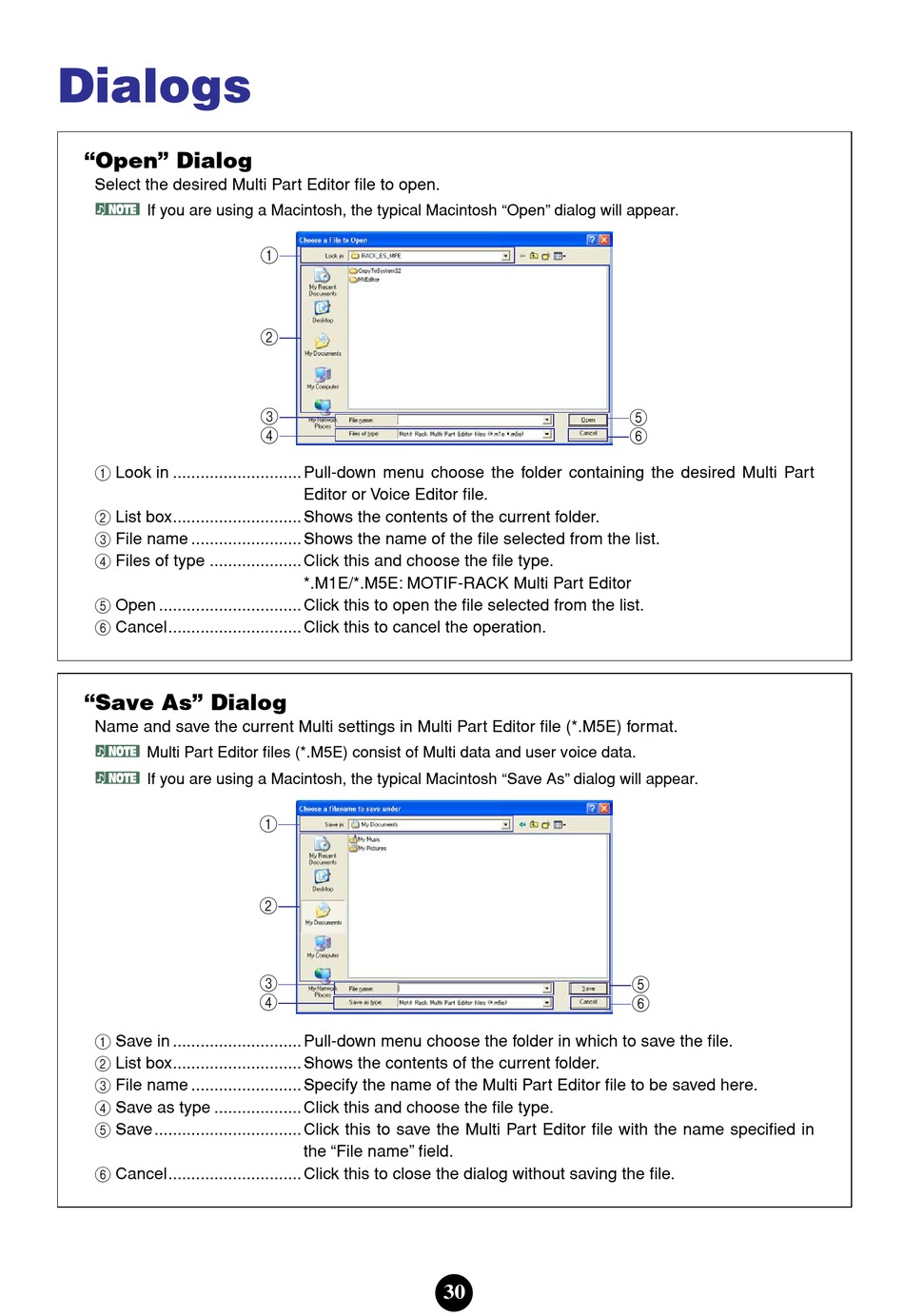

Dialogs

"Open" Dialog
Select the desired Multi Part Editor file to open.
n
If you are using a Macintosh, the typical Macintosh "Open" dialog will appear.
1 Look in ............................ Pull-down menu choose the folder containing the desired Multi Part
2 List box............................ Shows the contents of the current folder.
3 File name ........................ Shows the name of the file selected from the list.
4 Files of type .................... Click this and choose the file type.
5 Open ............................... Click this to open the file selected from the list.
6 Cancel............................. Click this to cancel the operation.
"Save As" Dialog
Name and save the current Multi settings in Multi Part Editor file (*.M5E) format.
n
Multi Part Editor files (*.M5E) consist of Multi data and user voice data.
n
If you are using a Macintosh, the typical Macintosh "Save As" dialog will appear.
1 Save in ............................ Pull-down menu choose the folder in which to save the file.
2 List box............................ Shows the contents of the current folder.
3 File name ........................ Specify the name of the Multi Part Editor file to be saved here.
4 Save as type ................... Click this and choose the file type.
5 Save................................ Click this to save the Multi Part Editor file with the name specified in
6 Cancel............................. Click this to close the dialog without saving the file.
1
2
3
4
Editor or Voice Editor file.
*.M1E/*.M5E: MOTIF-RACK Multi Part Editor
1
2
3
4
the "File name" field.
30
5
6
5
6
