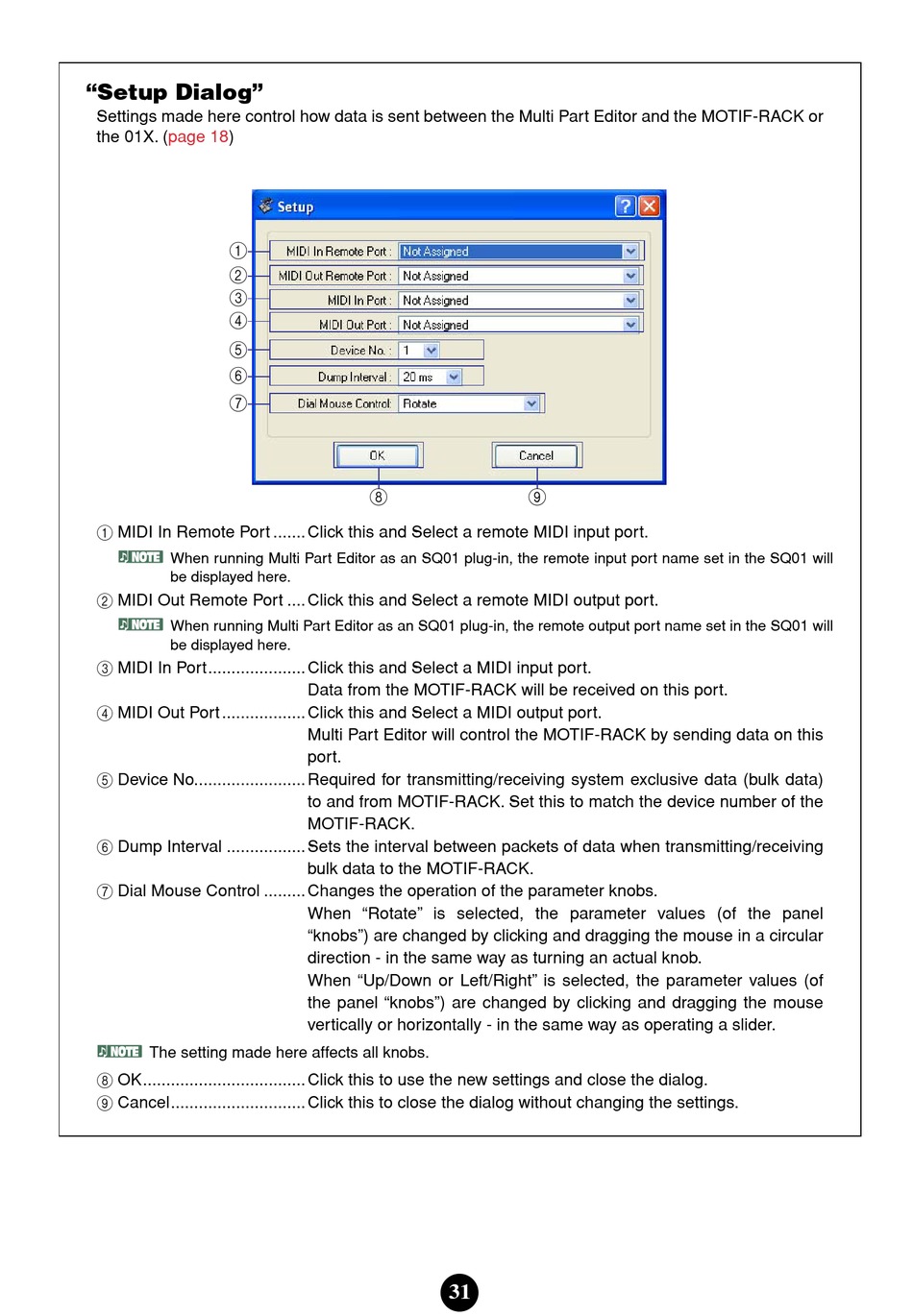

Yamaha MOTIF RACK Music System Owner's Manual page 31

"Setup Dialog"
Settings made here control how data is sent between the Multi Part Editor and the MOTIF-RACK or
the 01X. (page 18)
1
2
3
4
5
6
7
1 MIDI In Remote Port ....... Click this and Select a remote MIDI input port.
n
When running Multi Part Editor as an SQ01 plug-in, the remote input port name set in the SQ01 will
be displayed here.
2 MIDI Out Remote Port .... Click this and Select a remote MIDI output port.
n
When running Multi Part Editor as an SQ01 plug-in, the remote output port name set in the SQ01 will
be displayed here.
3 MIDI In Port..................... Click this and Select a MIDI input port.
4 MIDI Out Port .................. Click this and Select a MIDI output port.
5 Device No........................ Required for transmitting/receiving system exclusive data (bulk data)
6 Dump Interval ................. Sets the interval between packets of data when transmitting/receiving
7 Dial Mouse Control ......... Changes the operation of the parameter knobs.
n
The setting made here affects all knobs.
8 OK................................... Click this to use the new settings and close the dialog.
9 Cancel............................. Click this to close the dialog without changing the settings.
8
Data from the MOTIF-RACK will be received on this port.
Multi Part Editor will control the MOTIF-RACK by sending data on this
port.
to and from MOTIF-RACK. Set this to match the device number of the
MOTIF-RACK.
bulk data to the MOTIF-RACK.
When "Rotate" is selected, the parameter values (of the panel
"knobs") are changed by clicking and dragging the mouse in a circular
direction - in the same way as turning an actual knob.
When "Up/Down or Left/Right" is selected, the parameter values (of
the panel "knobs") are changed by clicking and dragging the mouse
vertically or horizontally - in the same way as operating a slider.
31
