WAGNER FLEXIO 4300 Owner's Manual

Hide thumbs Also See for FLEXIO 4300:
Table of Contents

Advertisement

Quick Links

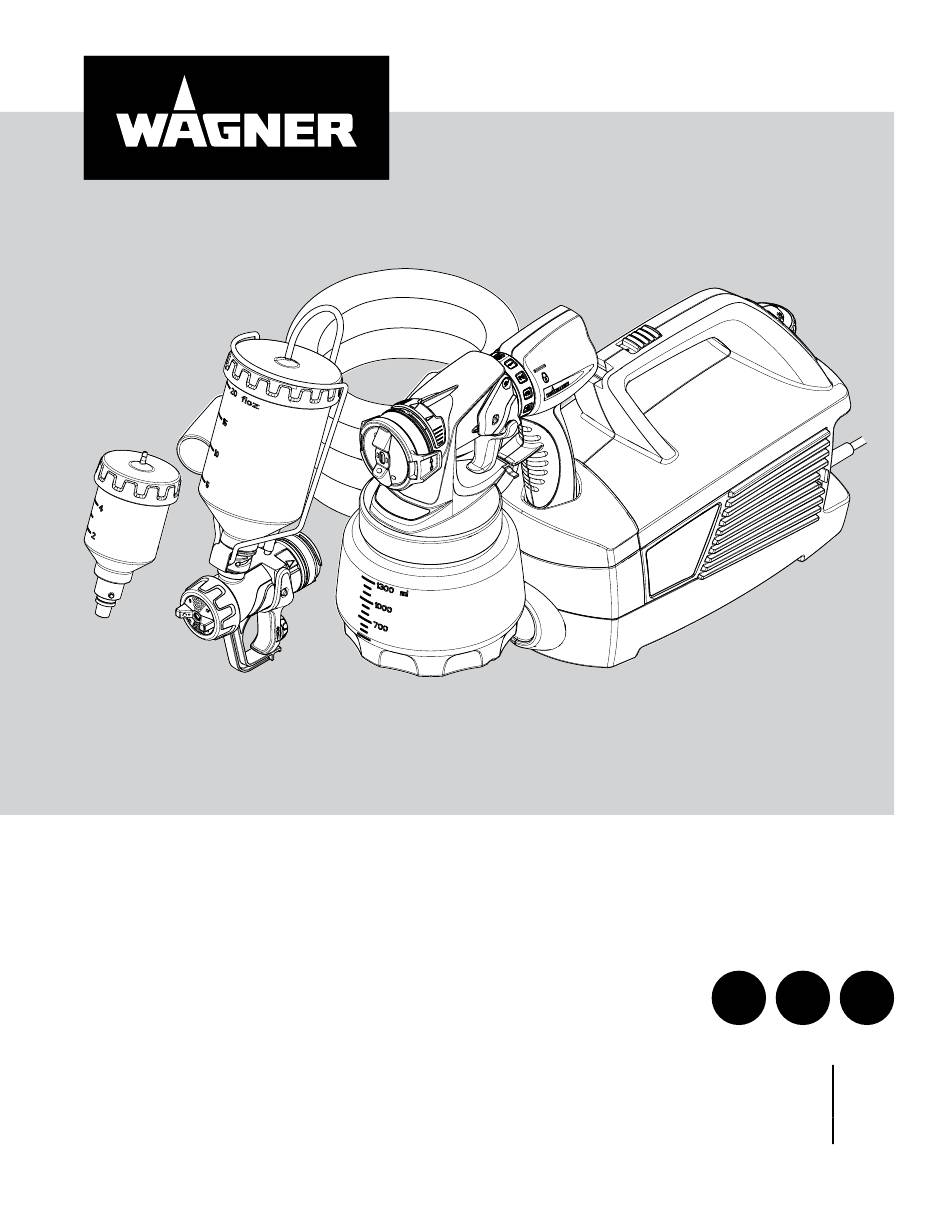

FLEXIO
OWNER'S MANUAL • MANUEL DE L'UTILISATEUR •
MANUAL DE USARIO
READ THIS MANUAL FOR COMPLETE INSTRUCTIONS •
LIRE CE MANUEL POUR OBTENIR DES DIRECTIVES COMPLÈTES •
LEA ESTE MANUAL PARA OBTENER LAS INSTRUCCIONES COMPLETAS
wagner-group.com
4300
™
EN
F
ES
EN
P. 2
F
P. 20
ES
P. 38
0120 • Form No. 2410407B

Advertisement

Table of Contents
loading

Related Manuals for WAGNER FLEXIO 4300

Summary of Contents for WAGNER FLEXIO 4300

  • Page 1 OWNER‘S MANUAL • MANUEL DE L‘UTILISATEUR • MANUAL DE USARIO READ THIS MANUAL FOR COMPLETE INSTRUCTIONS • P. 2 LIRE CE MANUEL POUR OBTENIR DES DIRECTIVES COMPLÈTES • P. 20 LEA ESTE MANUAL PARA OBTENER LAS INSTRUCCIONES COMPLETAS P. 38 wagner-group.com 0120 • Form No. 2410407B...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INFORMATION TABLE OF CONTENTS GROUNDING INSTRUCTIONS IMPORTANT SAFETY INFORMATION ........... 2-3 This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by CONTROLS AND FUNCTIONS ............4-5 providing an escape wire for the electric current. This product MATERIAL PREPARATION (ISPRAY NOZZLE) .......

  • Page 3: Important Safety Information

    • Power cord must be connected to a grounded circuit. • Do not spray outdoors on windy days. • Use only Wagner hose. HAZARD: ELECTRIC SHOCK This product can cause injury due to electric shock. PREVENTION: • Power cord must be connected to a grounded circuit.

  • Page 4: Controls And Functions

    THANK YOU FOR YOUR PURCHASE! Thank you for purchasing the Wagner FLEXiO sprayer with best-in-class features that are designed for spraying residential paint, un-thinned, indoors or out. Only the FLEXiO sprayers have the power of the X-Boost® turbine and versatility of the iSpray nozzle that will help you finish projects fast and professionally.
  • Page 5 CONTROLS AND FUNCTIONS X-BOOST™ POWER DIAL The X-Boost power dial adjusts the level of air power produced by the turbine. MATERIAL FLOW CONTROL GRAVITY FEED The material flow control determines the amount of spray material that is sprayed from the spray nozzle. iSpray Nozzle - The material flow can be adjusted incrementally from 1 (minimum) to 12 (maximum) by turning the adjustable material flow control.

  • Page 6: Material Preparation (Ispray Nozzle)

    MATERIAL PREPARATION (iSPRAY NOZZLE) Material to be sprayed may need to be strained to remove any impurities in the paint which may enter and clog the system. Impurities in the paint will give poor performance and a poor finish. Only thin the material if absolutely necessary to improve spray performance. Optimal spray performance should be achieved simply by adjusting the various controls on the unit.

  • Page 7: Assembly (Ispray Nozzle)

    ASSEMBLY (iSPRAY NOZZLE) NEVER point the spray gun at any part of the body. iSPRAY ASSEMBLY Make sure the power cord is unplugged. Attention Insert the suction tube into the intake opening. Align the pickup tube: A If spraying downward, the angled end of the pickup tube should be pointing toward the front of the nozzle.

  • Page 8: Gravity Feed Nozzle Material Preparation And Setup

    GRAVITY FEED NOZZLE MATERIAL PREPARATION AND SETUP The spray materials can be either unthinned or slightly thinned (see page 10 for thinning recommendations based on material). GRAVITY FEED NOZZLE ASSEMBLY Make sure the power cord is unplugged. Attention Prior to filling or attaching the desired container, attach the nozzle to the handle.
  • Page 9 GRAVITY FEED NOZZLE MATERIAL PREPARATION AND SETUP The gravity feed nozzle can be unstable when in the stand position. Take care to not knock it over when filling or any time material is inside Attention the container. FILLING THE GRAVITY CONTAINER Make sure the power cord is unplugged.

  • Page 10: Power And Material Controls

    POWER AND MATERIAL CONTROLS Spray performance will depend upon a number of factors: material thickness, air power, spray pattern selected, and material flow. Testing different variations of the control settings will help you achieve the desired results. See descriptions and suggested Power and Material Settings Guide below to help with your project. X-BOOST™...

  • Page 11: Spray Pattern Adjustment

    SPRAY PATTERN ADJUSTMENT ADJUST SPRAY SHAPE AIR CAP EARS AIR CAP Adjust the spray pattern by turning the air cap ears. Adjust the air cap position to your intended direction of the spray gun. The positions of the air cap and the corresponding spray pattern shapes are illustrated below.

  • Page 12: Proper Spraying Technique

    PROPER SPRAYING TECHNIQUE SPRAY POSTER The room you are spraying must be properly A spray poster is included with your unit. The spray poster can STOP masked in order to prevent overspray from be adhered to a spraying surface and can be used for practice. covering woodwork, floors or furnishings.
  • Page 13 PROPER SPRAYING TECHNIQUE Use the images and guidelines below in order to assist you in achieving the desired spray pattern for your project. These are meant to be general starting points - you may have to slightly modify certain controls on the system in order to get the exact performance you need.

  • Page 14: Cleanup

    CLEANUP When cleaning, use the appropriate cleaning solution (warm, soapy water for latex materials; mineral spirits for oil-based materials). FLUSHING THE UNIT (iSPRAY ONLY) PULL Follow these steps when using the iSpray nozzle only. If using the Gravity Feed nozzle, follow the steps on the next page.
  • Page 15 CLEANUP When cleaning, use the appropriate cleaning solution (warm, soapy water for latex materials; mineral spirits for oil-based materials). FLUSHING THE UNIT (GRAVITY FEED NOZZLE ONLY) It is recommended that whenever possible, the cup should be sprayed until empty. This will make it easier to clean.
  • Page 16 CLEANUP (CONTINUED) CLEANING THE NOZZLE Make sure power cord is unplugged. Remove the air hose from the rear of the spray gun handle. iSpray Nozzle only - a. Remove the air cap (a) by prying it off the connecting nut (inset).

  • Page 17: Maintenance

    MAINTENANCE REPLACING THE FILTERS Before every use, you should inspect the air filters in the turbine to see if it is excessively dirty. If it is dirty, follow these steps to replace it. Attention Never operate your unit without the air filters. Dirt could be sucked in and interfere with the function of the unit.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Problem A: Little or no material flow 1. Nozzle clogged. 1. Clean. 2. Suction tube clogged. 2. Clean. 3. Air vent on suction tube blocked. 3. Clean (see page 16) 4. Material flow setting too low. 4.

  • Page 19: Limited Warranty

    This warranty does not cover damage resulting from improper use, accidents, user’s negligence or normal wear. This warranty does not cover any defects or damages caused by service or repair performed by anyone other than a Wagner Authorized Service Center.

  • Page 20: Parts List

    PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS X-BOOST™ TURBINE • TURBINE DE X-BOOST™ • TURBINA DE X-BOOST™ Replacement parts available by calling customer service On peut obtenir des pièces de rechange en appelant le Service à la clientèle. Los repuestos están disponibles llamanado al servicio a clientes.
  • Page 21 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS ISPRAY NOZZLE • BUSE DE ISPRAY • BOQUILLA DE ISPRAY Part No. English Français Español Qty. Nº de piéce Description Description Descripción Qte. Pieza No. Cant. 0520006 Spray gun assembly (includes Ensemble de pistolet (inclut Ensamblaje de pistola (incluye items 1-7)
  • Page 22 PARTS LIST • LISTE DE PIÈCES • LISTA DE PIEZAS Part No. English Français Español Qty. Nº de piéce Description Description Descripción Qte. Pieza No. Cant. 2405995 Container lid, 150 ml Couvercle du réservoir, 150 ml Tapa del recipiente, 150 ml 2405996 Container seal, 150 ml Joint d’étanchéité...
  • Page 23 ACCESSORIES • ACCESSOIRES • ACCESORIOS Part No. English Français Español Nº de piéce Description Description Descripción Pieza No. 0520006 iSpray nozzle assembly Ensemble de embout de iSpray Ensamblaje del boquilla de iSpray 0529013 Detail Finish Nozzle™ assembly Ensemble de embout de Detail Ensamblaje del boquilla de Finish™...
  • Page 24 QUESTIONS? Call Wagner Technical Service at: 1-800-328-8251 Register your product online at: www.wagnerspraytech.com BESOIN D’AIDE? Appelez le service technique Wagner 1-800-328-8251 Enregistrement du produit en ligne sur le site : www.wagnerspraytech.com ¿NECESITA AYUDA? Llame Wagner Technical Service al: 1-800-328-8251 Regístrelo del producto en línea en: www.wagnerspraytech.com...
