DI-804 VPN connection with another DI-804HV
(This example is using Static WAN IP addresses)
Date: 23 Oct 2003
Doc version: 1.1
Author: Neil Stent

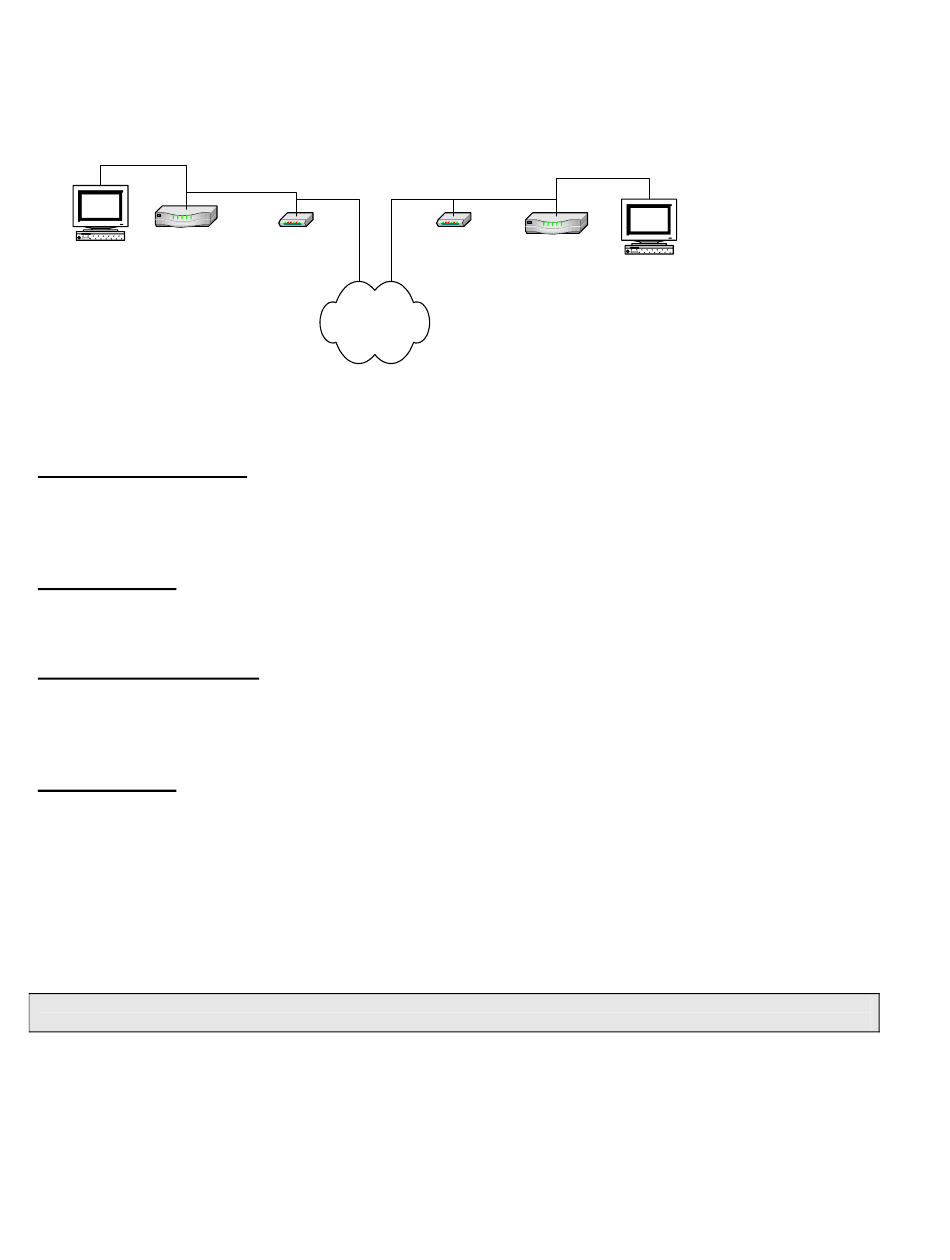

DI-804V
Cable / DSL modem
Cable / DSL modem
DFL-600
Workstation
192.168.0.5
202.192.109.87
202.129.109.74
192.168.1.5
Workstation
192.168.0.156
192.168.1.20
ISP and
INTERNET
DFL-600 (firmware 4.73)
LAN: 192.168.0.10 255.255.255.0
WAN: 202.129.129.87 255.255.255.224
WAN gateway: 202.129.109.65 255.255.255.224
Workstation A:
PC: 192.168.0.156 225.255.255.0
PC gateway: 192.168.0.10 225.255.255.0
DI-804HV (firmware 1.30)
LAN: 192.168.1.5 255.255.255.0
WAN: 202.129.129.74 255.255.255.224
WAN gateway: 202.129.109.65 255.255.255.224
Workstation B:
PC: 192.168.1.20 225.255.255.0
PC gateway: 192.168.1.5 225.255.255.0
Please note:
For any VPN you need to make sure that the LAN subnet on each location is different. As above you can see
that the IP of the DFL-600 is 192.168.0.5 and the 804HV is 192.168.1.5. If you had a third location it should be
192.168.2.x etc... x being anything from 1 to 254.
If you are using DSL-300, DSL-300+, DSL-302G modem or DSL-500, DSL-504, DSL-604+ router please see
Appendix 3 at the end of this document.
Advertisement
Related Manuals for D-Link DI-804
Summary of Contents for D-Link DI-804
- Page 1 DI-804 VPN connection with another DI-804HV (This example is using Static WAN IP addresses) Date: 23 Oct 2003 Doc version: 1.1 Author: Neil Stent DI-804V Cable / DSL modem Cable / DSL modem DFL-600 Workstation 192.168.0.5 202.192.109.87 202.129.109.74 192.168.1.5 Workstation 192.168.0.156...
- Page 2 DFL-600 Settings: Log into the router’s WEB interface and then go into Home > LAN. Change the IP address of the LAN port of the router to required IP. Once you have changed the LAN IP address on the router, make sure your PC has an IP address from the same subnet (192.168.2.x in this example), you may just need to renew IP on your PC or reboot.
- Page 3 Next go to the Home > WAN page, choose the type of connection your ISP requires. In our example it is Static IP Address. You need to have a static IP address the on WAN port of at least one unit out of two participating in VPN connection.
- Page 4 Next make sure you can access the Internet (that will confirm that you have set WAN settings correctly), then log back into the router and go into Advanced > VPN-IPSec. Make sure you have IPSec Status box ticked.
- Page 5 Next click on Tunnel Setting on the top tab. Then fill out the page as needed.
- Page 8 DI-804HV VPN Connection settings:...
- Page 10 Make sure you have VPN enabled box ticked. Type in any name for the Tunnel Name Then click on the “more” button to the right of the ID “1”...
- Page 11 Next enter in your Local information then the remote. Make sure that you tell the 804HV the remotes Public IP under “remote gateway”. For the Preshare Key this can be anything up to 31 in length. Then click Apply, then click on “Select IKE…”...
- Page 12 For the test here we used DES, DES is a lower Encryption the 3DES. If you have a slow internet connection you may want to use this as it can increase the data transfer through the VPN. Down the bottom of the page click on the drop down for Proposal ID and click on 1, then click on “add to”. At the top of the page you should see the IKE proposal index now has ID 1 in there.
- Page 13 You should now see this page. Do the same setup as on the last page. After the setup click on Apply, then click on reboot and hit OK. The unit will save the setting then restart the DI-804HV.
- Page 14 Once this is all done go into dos, Start > Run, type in command then hit enter. Depending on what location you are on will depend on what you type in. If you are located on the 192.168.0.x side type in the red part: Ping 192.168.1.5 (this is the IP of the remote unit) Or if your location is 192.168.1.x type in the red part:...
- Page 16 Appendix 3 Note to DSL-300, DSL-300+, DSL-302G modems users and DSL-500, DSL-504, DSL-604+ users. If you are using DSL-300 to connect your DI-804HV to the Internet please avoid using 192.168.1.x addresses on your networks as it is the temporary subnet used by the modem. If you are using DSL-300+ to connect your DI-804HV to the Internet please avoid using 192.168.0.x addresses on your networks as it is the temporary subnet used by the modem.
- Page 17 Then click on Submit to apply the settings. When setting up Remote Gateway in VPN you will need to use public IP on DSL-302G’s WAN port. D-Link Australia & NZ Technical Support Team can be contacted on +61 2 88991800 or support@dlink.com.au ~ End of Document ~...
