This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
1. Thank you for purchasing this Router to share your high-speed Internet connection
with other computers. To share high-speed Broadband access, you must have
either an Ethernet-based cable or DSL modem with an established Internet account
from an Internet Service Provider (ISP).
2. It is best to use the same computer that is connected to your modem for
configuring the DI-808HV. The DI-808HV acts as a DHCP server and will assign all
the necessary IP address information on your network. See Appendix at the end
of this Quick Installation Guide or the Manual on the CD-ROM for setting each
network adapter to automatically obtain an IP address.
Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and

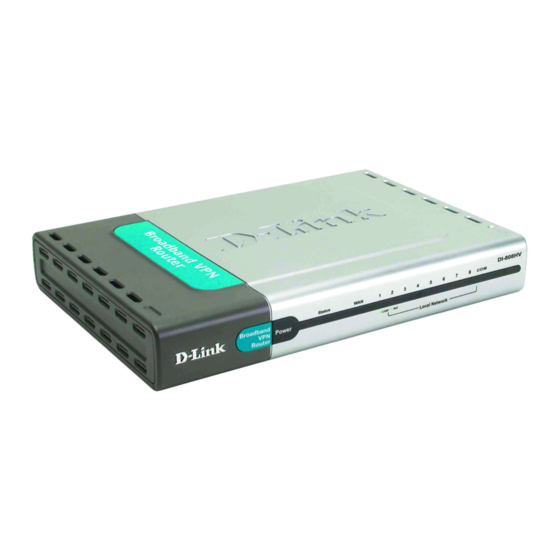

DI-808HV 8-Port BroadbandVPN Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight-Through) Cable
5V DC Power Adapter
specifications subject to change without notice. DI-808HV. 09192003
rating will damage this
product and void the warranty
1
DI-808HV
8-Port Broadband
VPN Router
Using a power supply
with a different voltage
Advertisement
Table of Contents
Related Manuals for D-Link DI-808HV
Summary of Contents for D-Link DI-808HV
-
Page 1: Check Your Package Contents
If any of the above items are missing, please contact your reseller. ©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DI-808HV. 09192003... - Page 2 First, connect the power adapter to the receptor at the back panel of the DI-808HV and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED lights up indicating proper operation.
-
Page 3: Restart Your Computer
Restart Your Computer Connecting Additional Computers To The DI-808HV Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DI-808HV. Status Status Status – will flash Status Status... -
Page 4: Using The Setup Wizard
When you have completed the steps in this Guide, your connected network should look similar to this: Using The Setup Wizard Open your Web browser and type “http://192.168.0.1” URL address box. Then press the Enter or Return key. The logon pop-up screen will appear. Type “admin”... - Page 5 The Setup Wizard (continued) Once you have logged in, the Home screen will appear. Click Run Wizard You will see the following screens Click Next Set up your new password. You have the option to establish a password. Click Next...
- Page 6 The Setup Wizard (continued) Choose your time zone from the drop down list. Click Next A this point, the setup wizard will try to auto-detect your Internet connection type. If you have a Dynamic IP Address or PPPoE connection, you will be brought to the corresponding page.
- Page 7 The Setup Wizard (continued) If you selected Dynamic IP Address, this screen will appear: (Used mainly for Cable Internet service.) Click the “Clone MAC Address” button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address.
- Page 8 The Setup Wizard (continued) If your ISP uses PPPoE Point Protocol over Ethernet), and this option is selected, then this screen will appear (Used mainly for DSL Internet service): Please be sure to remove any existing PPPoE client software installed on your computers.
-
Page 9: Test Internet Connection
Your Setup is Complete! Click Restart Test Internet Connection. You will be returned to the Home tab. Click to Exit Relaunch your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favorite Web site to test your Internet connection. For additional settings or information, refer to the Advanced, Tools, or... - Page 10 To connect to the network, make sure the network adapter in your computer is configured properly. Here’s how to configure the network adapter to obtain an IP address automatically for the DI-808HV 8- Port Broadband VPN Router. Microsoft Windows XP:...
- Page 11 Select Using DHCP the Configure pull down menu Click on Apply Now The IP address information, the subnet mask, the Router’s IP address and the Ethernet adapter address will appear System Network Click on Network...
-
Page 12: Technical Support
You can find software updates and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States and within Canada for the duration of the warranty period on this product. U.S. and Canadian customers can contact D-Link technical support through our website, or by phone.
