Summary of Contents for D-Link DI-804HV

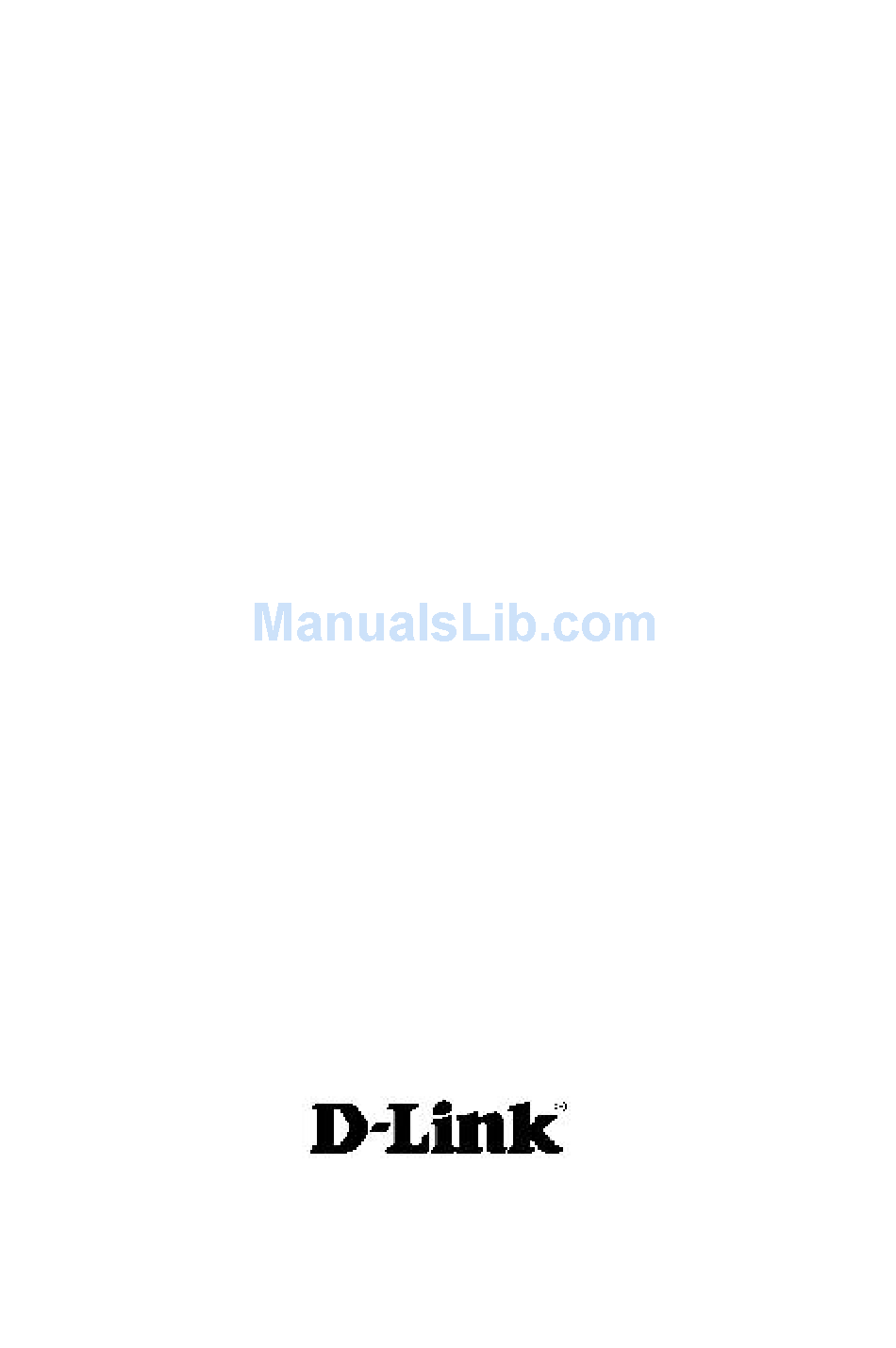

  • Page 1 DI-804HV D-Link Broadband Hardware VPN Router Manual Building Networks for People 10/08/04...
  • Page 2: Table Of Contents

    Contents Package Contents ..................3 Introduction ......................4 Getting Started ..................... 10 Using the Configuration Menu ..............11 Networking Basics ..................68 Reset to Factory Default Settings .............. 94 Technical Specifications ................95 Frequently Asked Questions ............... 96 Contacting Technical Support ..............142 Warranty ......................
  • Page 3: Package Contents

    Quick Installation Guide Note: Using a power supply with a different voltage rating than the one included with the DI-804HV will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller.
  • Page 4: Introduction

    Introduction The D-Link DI-804HV is a 4-port Broadband Router with Virtual Private Network (VPN) functionality. It provides a complete solution for Internet surfing, office resources sharing, and secure access to remote corporate networks.. It is an ideal way to extend the reach and number of computers connected to your network.
  • Page 5 Unwanted packets from outside intruders can be blocked to protect your network DHCP server supported All of the networked computers can retrieve TCP/IP settings automatically from the DI-804HV Web-based configuration Configurable through any networked computer’s web browser using Netscape or Internet Explorer...
  • Page 6: Introduction To Broadband Router Technology

    You can define the attributes, for instance opening special ports to allow packets to come through, to support special applications requiring multiple connections, such as Internet gaming, video conferencing, and Internet telephony. The DI-804HV can sense the application type and open a multi- port tunnel for it. DMZ Host supported Allows a networked computer to be fully exposed to the Internet;...
  • Page 7 Introduction to Firewalls A firewall is a device that sits between your computer and the Internet that prevents unauthorized access to or from your network. A firewall can be a computer using firewall software or a special piece of hardware built specifically to act as a firewall. In most circumstances, a firewall is used to prevent unauthorized Internet users from accessing private networks or corporate LAN's and Intranets.
  • Page 8: Introduction To Virtual Private Networking

    Introduction to Virtual Private Networking Virtual Private Networking (VPN) uses a publicly wired network (the Internet) to se- curely connect two different networks as if they were the same network. For example, an employee can access a corporate network from home using VPN, allowing the employee to access files, databases, and other networked resources.
  • Page 9 LEDS stands for Light-Emitting Diode. The DI-804HV has the following LEDs as described below: LED Activity A steady light indicates Power a connection to a power sourcea power source Flashes once per second to indicate an M1 LED active system...
  • Page 10: Getting Started

    Consult with your Cable or DSL provider for proper installation of the modem. Connect the Cable or DSL modem to the DI-804HV wireless broadband router (see the Quick Installation Guide included with the DI-804HV.) If you are connecting a desktop computer to your network and you need an Ethernet connection, you can install the D-Link DFE-530TX+ Ethernet adapter into an available PCI slot.
  • Page 11: Using The Configuration Menu

    Type in the IP Address of http://192.168.0.1 the DI-804HV (http://192.168.0.1) Note: If you have changed the default IP Address assigned to the DI-804HV, make sure to enter the correct IP Address. The factory default User name is admin and the default Password is blank (empty).
  • Page 12 Using the Configuration Menu Setup Wizard Once you have logged in, the Home screen will appear. Click Run Wizard The welcome screen outlines the steps to complete the setup wizard. Click Next to continue. Click Next...
  • Page 13 Using the Configuration Menu Setup Wizard > Set Password Click Next Old Password- This information is masked. Type in the new password for the admin account. New Password- Type in the new password again to confirm. Click Next to Reconfirm- continue with the Setup Wizard.
  • Page 14 Using the Configuration Menu Setup Wizard > Time Zone Select the appropriate time zone for your location- Select the proper time zone. Selections can be made by clicking on the drop down list. Click Next to continue. Click Next Setup Wizard > Connection Type (WAN) Select Your Internet Connection- You will be prompted to select the type of internet connection...
  • Page 15 (MAC) address. Note that some computer and peripherals may already include built-in network adapter. Clone MAC By clicking on Clone MAC Address, the DI-804HV will auto- matically copy the MAC address of the network adapter in your Address- computer. You can also manually type in the MAC address.
  • Page 16 Enter the IP address informa- tion originally provided to you by your ISP. You will need to complete all the required fields. The subnet for the DI-804HV is preconfigured to 255.255.255.0. WAN Subnet Mask- Configurations can be made in, but not recommended. This feature is for advanced users.
  • Page 17 Using the Configuration Menu Setup Wizard > PPPoE Click Next If your ISP uses PPPoE (Point-to-Point Protocol over Ethernet), and this option is se- lected, then this screen will appear: (Used mainly for DSL Internet service.) PPPoE Account- Enter in the username provided to you by your ISP. PPPoE Password- Enter in the password provided to you by your ISP.
  • Page 18 Using the Configuration Menu Setup Wizard Click Next Configure this section only if you have an analog dial-up account. Otherwise click Next to skip. Dial-up Enter the telephone number to connect to your ISP. Telephone- This information is provided by your ISP. The Dial-up Account is Dial-up Account- also known as username.
  • Page 19 Using the Configuration Menu Setup Wizard Click Restart Back- Click on Back button to go back to previous page. Restart- Click on Restart button to finalize the settings made. Click on Exit button to end the Setup Wizard without saving Exit- any changes.
  • Page 20 Using the Configuration Menu Home > WAN Choose WAN Type WAN stands for Wide Area Network. In this case WAN represents the mode in which you connect to the Internet. If you are uncertain, please ask your ISP which of the following represents your connection mode to the Internet: Dynamic Obtain an IP address from your ISP automatically (mainly for...
  • Page 21 Using the Configuration Menu Home > WAN > Dynamic IP Address Most Cable modem users will select this option to obtain an IP Address automatically from their ISP (Internet Service Provider). This is optional, but may be required by some ISPs. The host Host Name- name is the device name of the Router.
  • Page 22 Using the Configuration Menu Home > WAN > Static IP Address If you use a Static IP Address, you will input information here that your ISP has provided to you. IP Address- Input the IP Address provided by your ISP Subnet Mask- Input the Subnet Mask provided by your ISP ISP Gateway...
  • Page 23 Using the Configuration Menu Home > WAN > PPPoE Most DSL users will select this option to obtain an IP address automatically from their ISP through the use of PPPoE. User Name- Your PPPoE username provided by your ISP Your PPPoE password is provided by your ISP Password- Service Name- (Optional) Check with your ISP for more information if they...
  • Page 24 Enter a maximum idle time during which Internet connection is maintained during inactivity. To disable this feature, en- able Auto-reconnect. Baud Rate- The communication speed between the DI-804HV and your modem. Auto-reconnect - If enabled, the Broadband Router will automatically connect to your ISP after your system is restarted or if the connection is dropped.
  • Page 25 Using the Configuration Menu Home > WAN > PPTP Point-to-Point Tunneling Protocol (PPTP) is a WAN connection used in Europe and Russia. My IP Address- Enter the IP Address My Subnet Mask- Enter the Subnet Mask Server IP Address- Enter the Server IP Address PPTP Account- Enter the PPTP account name PPTP Password-...
  • Page 26 Using the Configuration Menu Home > WAN > BigPond Cable Dynamic IP Address for BigPond is a WAN connection used in Australia. User Name- Enter in the username for the BigPond account Enter the password for the BigPond account Password- (Optional) enter the Login Server name if required Login Server IP- Renew IP forever-...
  • Page 27 Using the Configuration Menu Home > LAN LAN (Local Area Network). This is considered your internal network. These are the IP settings of the LAN interface for the DI- 804HV. These settings may be referred to as Private settings. You may change the LAN IP address if needed.
  • Page 28 Using the Configuration Menu Home >DHCP DHCP stands for Dynamic Host Control Protocol. The DI-804HV has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.”...
  • Page 29 Using the Configuration Menu Home >VPN Settings VPN Settings are settings that are used to create virtual private tunnels to remote VPN gateways. The tunnel technology supports data confidentiality, data origin, authentication and data integrity of network information by utilizing encapsulation protocols, encryption algorithms, and hashing algorithms.
  • Page 30 Using the Configuration Menu Home >VPN Settings > Tunnel > Method>IKE Tunnel Name- Current tunnel name. Enabling this mode will accelerate establishing tunnel, but Aggressive Mode- the device will have less security. The subnet of the VPN gateway’s local network. It can be a Local Subnet- host, a partial subnet or a whole subnet.
  • Page 31 Using the Configuration Menu Home >VPN Settings > Tunnel > Method > IKE > Select IKE Proposal IKE Proposal index- A list of selected proposal indexes from the IKE proposal pool listed below. Proposal Name- This is the name used to classify the IKE proposal. DH Group- There are three groups can be selected: group 1 (MODP768), group 2 (MODP1024), group 5 (MODP1536).
  • Page 32 Using the Configuration Menu Home >VPN Settings > Tunnel > Method > IKE > Select IKE Proposal Continued... Enter in the life time value. Life Time- Life Time Unit- There are two units that can be selected: second and KB. The identifier of IKE proposal can be chosen for adding Proposal ID- corresponding proposal to the dedicated tunnel.
  • Page 33 Using the Configuration Menu Home >VPN Settings > Tunnel > Method > IKE > Select IPSEC Proposal A list of selected proposal indexes from the IPSec proposal IPSec Proposal pool listed below. index- This is the name used to classify the IPSec Proposal Proposal Name- There are three groups that can be selected: group 1 DH Group-...
  • Page 34 Using the Configuration Menu Home >VPN Settings > Tunnel > Method > IKE > Select IPSEC Proposal Continued... Enter in a life time value. Life Time- Life Time Unit- There are two units that can be selected: second and KB. The identifier of IPSec proposal can be chosen for adding the Proposal ID- proposal to the dedicated tunnel.
  • Page 35 Using the Configuration Menu Home >VPN Settings > Tunnel > Manual Tunnel Name- Current tunnel name. Enabling this mode will accelerate establishing tunnel, but Aggressive Mode- the device will have less security. The subnet of the VPN gateway’s local network. It can be a Local Subnet- host, a partial subnet or a whole subnet.
  • Page 36 Using the Configuration Menu Home >VPN Settings > Tunnel > Manual Continued... Encapsulation There are two protocols that can be selected: ESP and AH. Protocol- Encryption Algorithm- There are two algorithms that can be selected: 3DES and DES. Encryption Key- For DES, the encryption key is 8 bytes (16 alpha-numeric characters).
  • Page 37 Tunnel Name- Current tunnel name. Dynamic VPN- This feature works with a VPN software client so the DI-804HV does not need to know the IP address of the remote clients. Enabling this mode will accelerate establishing the tunnel, Aggressive Mode- but the device will have less security.
  • Page 38 Using the Configuration Menu Home >VPN Settings > Dynamic VPN Tunnel Continued... The first key that supports IKE mechanism of both VPN Preshared Key- gateways for negotiating further security keys. The pre- shared key must be the same for both endpoint gateways. Click the button to setup a set of frequent-used IKE IKE Proposal index- proposals and select from the set of IKE proposals for the...
  • Page 39 Using the Configuration Menu Home >VPN Settings > Dynamic VPN Tunnel > Set IKE Proposal IKE Proposal index- A list of selected proposal indexes from the IKE proposal pool listed below. Proposal Name- This is the name used to classify the IKE proposal. DH Group- There are three groups can be selected: group 1 (MODP768), group 2 (MODP1024), group 5 (MODP1536).
  • Page 40 Using the Configuration Menu Home >VPN Settings > Dynamic VPN Tunnel > Set IKE Proposal Continued... Enter in the life time value. Life Time- Life Time Unit- There are two units that can be selected: second and KB. The identifier of IKE proposal can be chosen for adding Proposal ID- corresponding proposal to the dedicated tunnel.
  • Page 41 Using the Configuration Menu Home >VPN Settings > Dynamic VPN Tunnel > Set IPSEC Proposal A list of selected proposal indexes from the IPSec proposal IPSec Proposal pool listed below. index- This is the name used to classify the IPSec proposal. Proposal Name- There are three groups that can be selected: group 1 DH Group-...
  • Page 42 Using the Configuration Menu Home >VPN Settings > Dynamic VPN Tunnel > Set IPSEC Proposal Continued... Enter in a life time value. Life Time- Life Time Unit- There are two units that can be selected: second and KB. The identifier of IPSec proposal can be chosen for adding the Proposal ID- proposal to the dedicated tunnel.
  • Page 43 Using the Configuration Menu Home >VPN Settings > L2TP Server Setting Enable L2TP Server- Click to enable the L2TP Server function. Virtual IP of L2TP Enter your Virtual IP address to access the L2TP server. Server- Select one of the following authentication protocols: PAP, Authentication CHAP, MSCHAP.
  • Page 44 Using the Configuration Menu Home >VPN Settings >PPTP Server Setting Enable PPTP Click to enable the PPTP Server function. Server- Virtual IP of PPTP Enter your Virtual IP address to access the PPTP server. Server- Select one of the following authentication protocols: PAP, Authentication CHAP, MSCHAP.
  • Page 45 Using the Configuration Menu Advanced > Virtual Server The DI-804HV can be configured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).
  • Page 46 Internet telephony and others. These applications have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DI-804HV. If you need to run applications that require multiple connections, specify the port normally associated with an application in the Trigger field, then enter the public ports associated with the trigger port into the Incoming Ports field.
  • Page 47 Using the Configuration Menu Advanced > IP Filter Use IP (Internet Protocol) filters to allow or deny computers access to the Internet based on their IP address. IP Filter- Use IP Filters to deny LAN IP addresses access to the internet Enabled or Disabled- Click Enabled to apply the filter policy or click Disabled to enter an inactive filter policy (You can reactivate the policy later.)
  • Page 48 At the bottom of the screen, there is a list of MAC addresses from the DHCP client computers connected to the DI-804HV. To use them, select one from the drop down list. Then click the “Clone” button followed by the“Apply” button and the MAC address will be added to the filter list.
  • Page 49 Using the Configuration Menu Advanced > URL Blocking Use URL Blocking to deny LAN computers from accessing specific web sites by its URL. A URL is a specially formatted text string that defines a location on the Internet. If any part of the URL contains the blocked word, the site will not be accessible and the web page will not display.
  • Page 50 Using the Configuration Menu Advanced > Domain Blocking Use Domain Blocking to allow or deny computers access to specific Internet domains whether it is through www, ftp, snmp, etc. Disabled Domain Blocking- Select this option if you do not want to use Domain Blocking. Allow users to access all domains except “Blocked Domains”- Select this option to allow users to access the specified Internet domains listed below.
  • Page 51 (You can reactivate the policy later). Name- Enter the name of the Firewall Rule. Action- Select Allow or Deny to allow or deny traffic to pass through the DI-804HV. Source- Choose between a LAN or WAN source. An asterisk signifies the selection of both sources.
  • Page 52 Using the Configuration Menu Advanced > Firewall Continued IP Address- Enter in the IP address range of the computers that you want the policy to apply to. If it is only a single computer that you want the policy applied to, then enter the IP address of that computer in the Start Source IP and leave the End Source IP blank.
  • Page 53 SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network device to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DI-804HV. The DI- 804HV supports SNMP v1 or v2c...
  • Page 54 DDNS (Dynamic Domain Name System) keeps dynamic IP addresses (e.g., IP addresses assigned by a DHCP capable router or server) linked to a domain name. Users who have a Dynamic DNS account may use this feature on the DI-804HV. DDNS- When an IP address is automatically assigned by a DHCP server, DDNS automatically updates the DNS server.
  • Page 55 Using the Configuration Menu Advanced > Routing Dynamic Routing Dynamic Routing Settings allow the VPN Router to route IP packets to another network automatically. The RIP protocol is applied, and broadcasts the routing information to other routers on the network regularly. By default, it is set to disable.
  • Page 56 If you have a computer that cannot run Internet applications properly from behind the DI-804HV, then you can allow that computer to have unrestricted Internet access. Enter the IP address of that computer as a DMZ (Demilitarized Zone) host with unrestricted Internet access.
  • Page 57 Internet IP addresses to access the DI-804HV. The port number used to access the DI-804HV. Port- E.g., http://x.x.x.x:8080, where x.x.x.x. is the WAN IP address of the DI-804HV and 8080 is the port used for the Web Manage- ment interface.
  • Page 58 Set the time here by entering it manually or use NTP (Network Time Protocol.) NTP is standard protocol on the Internet that synchronizes the time settings accurately for the DI-804HV. Select to enable NTP and synchronize the time settings on...
  • Page 59 The current system settings can be saved as a file onto the local hard drive. The saved file or any other saved setting file created by the DI-804HV can be uploaded into the unit. To reload a system settings file, click on Browse to search the local hard drive for the file to be used.
  • Page 60 Using the Configuration Menu Tools > Firmware You can upgrade the firmware by using this tool. First, check the D-Link support site for firmware updates at http://support.dlink.com. Make sure that the firmware you want to use is saved on the local hard drive of your computer. Click on Browse to search the local hard drive for the firmware that you downloaded from the D-Link website to be used for the update.
  • Page 61 Click Enable to block the WAN ping. Computers on the Internet Block WAN Ping- will not get a reply back from the DI-804HV when it is being “ping”ed. This may help to increase security. When this feature is enabled, the router will record the packet...
  • Page 62 UPnP is short for Universal Plug and Play which is a networking architecture that provides compatibility among networking equip- ment, software, and peripherals. The DI-804HV is a UPnP enabled router and will only work with other UPnP devices/softwares. If you do not want to use the UPnP Functionality, it can be disabled by selecting “Disabled”.
  • Page 63 Using the Configuration Menu Status > Device Info This screen displays information about the DI-804HV DHCP Renew- Click to renew IP addresses sent from the DHCP server. DHCP Release- Click to release IP addreses sent from the DHCP server.
  • Page 64 Using the Configuration Menu Status > Log This screen displays activities occurring on the DI-804HV. First Page- Click First Page to go to the first page of the log. Last Page- Click Last Page to go to the last page of the log.
  • Page 65 Using the Configuration Menu Status > Log Settings The DI-804HV can be set up to send the log files to a specific E-Mail Alert- email address. SMTP Server IP- Enter in the IP address of the mail server. Enter in the email address of the recipient who will receive the Email Address- email log.
  • Page 66 Using the Configuration Menu Status > Stats In Stats section, traffic statistics are displayed. This will update the page. Refresh- This will reset the packet counter to zero. Reset- Displays Received / Transmitted packets from the WAN port. WAN- Displays Received / Transmitted packets from the LAN port. LAN-...
  • Page 67 Using the Configuration Menu Help This screen displays the complete Help menu. For help at anytime, click the Help tab in the Configuration menu.
  • Page 68: Networking Basics

    Networking Basics Using the Network Setup Wizard in Windows XP In this section you will learn how to establish a network at home or work, using Microsoft Windows XP. Note: Please refer to websites such as http://www.homenethelp.com http://www.microsoft.com/windows2000 for information about networking computers using Windows 2000, ME or 98.
  • Page 69 Networking Basics Please follow all the instructions in this window: Click Next In the following window, select the best description of your computer. If your computer connects to the internet through a gateway/router, select the second option as shown. Click Next...
  • Page 70 Networking Basics Enter a Computer description and a Computer name (optional.) Click Next Enter a Workgroup name. All computers on your network should have the same Workgroup name. Click Next...
  • Page 71 Networking Basics Please wait while the Network Setup Wizard applies the changes. When the changes are complete, click Next. Please wait while the Network Setup Wizard configures the computer. This may take a few minutes.
  • Page 72 Networking Basics In the window below, select the option that fits your needs. In this example, Create a Network Setup Disk has been selected. You will run this disk on each of the computers on your network. Click Next. Insert a disk into the Floppy Disk Drive, in this case drive A.
  • Page 73 Networking Basics Please read the information under Here’s how in the screen below. After you complete the Network Setup Wizard you will use the Network Setup Disk to run the Network Setup Wizard once on each of the computers on your network. To continue click Next.
  • Page 74 Networking Basics Please read the information on this screen, then click Finish to complete the Network Setup Wizard. The new settings will take effect when you restart the computer. Click Yes to restart the computer. You have completed configuring this computer. Next, you will need to run the Network Setup Disk on all the other computers on your network.
  • Page 75 Networking Basics Naming your Computer To name your computer, please follow these directions: In Windows XP: Click Start (in the lower left corner of the screen) Right-click on My Computer Select Properties and click Select the Computer Name Tab in the System Properties window.
  • Page 76 Networking Basics Naming your Computer In this window, enter the Computer name Select Workgroup and enter the name of the Workgroup All computers on your network must have the same Workgroup name. Click OK Checking the IP Address in Windows XP The wireless adapter-equipped computers in your network must be in the same IP Ad- dress range (see Getting Started in this manual for a definition of IP Address Range.) To check on the IP Address of the adapter, please do the following:...
  • Page 77 Networking Basics Checking the IP Address in Windows XP This window will appear. Click the Support tab Click Close Assigning a Static IP Address in Windows XP/2000 Note: Residential Gateways/Broadband Routers will automatically assign IP Ad- dresses to the computers on the network, using DHCP (Dynamic Host Configura- tion Protocol) technology.
  • Page 78 Networking Basics Assigning a Static IP Address in Windows XP/2000 Double-click on Network Connections Right-click on Local Area Connections Click on Properties...
  • Page 79 IP Address: e.g., 192.168.0.2 Subnet Mask: 255.255.255.0 Enter the LAN IP address of the Wireless Router. (D-Link wireless routers have a LAN IP address of 192.168.0.1) 192 168 Select Use the following DNS server addresses. Enter the LAN IP address of 192 168 the Wireless Router.
  • Page 80 Networking Basics Assigning a Static IP Address with Macintosh OSX Go to the Apple Menu and se- lect System Preferences cClick on Network Select Built-in Ethernet in the Show pull-down menu Select Manually in the Con- figure pull-down menu Input the Static IP Address, the Subnet Mask and the Router IP Address in the ap- propriate fields...
  • Page 81 Networking Basics Selecting a Dynamic IP Address with Macintosh OSX Go to the Apple Menu and select System Preferences Click on Network Select Built-in Ethernet in the Show pull-down menu Select Using DHCP in the Configure pull-down menu Click Apply Now The IP Address, Subnet mask, and the Router’s IP Address will appear in a few...
  • Page 82: Adding A Local Printer

    Networking Basics Adding and Sharing Printers in Windows XP After you have run the Network Setup Wizard on all the computers in your network (please see the Network Setup Wizard section at the beginning of Networking Basics,) you can use the Add Printer Wizard to add or share a printer on your network. Whether you want to add a local printer (a printer connected directly to one computer,) share an LPR printer (a printer connected to a print server) or share a network printer (a printer connected to your network through a Gateway/Router,) use the Add Printer...
  • Page 83 Networking Basics Adding a local printer (a printer connected directly to a computer) A printer that is not shared on the network and is connected directly to one computer is called a local printer. If you do not need to share your printer on a network, follow these directions to add the printer to one computer.
  • Page 84 Networking Basics Adding a local printer Click Next Select Local printer attached to this computer (Deselect Automati- cally detect and install my Plug and Play printer if it has been selected.) Click Next Select Use the follow- ing port: From the pull-down menu select the correct port for your printer (Most computers use the LPT1: port,...
  • Page 85 Networking Basics Adding a local printer Select and highlight the correct driver for your printer. Click Next (If the correct driver is not displayed, insert the CD or floppy disk that came with your printer and click Have Disk .) At this screen, you can change the name of the printer (optional.)
  • Page 86 Networking Basics Adding a local printer This screen gives you information about your printer. Click Finish When the test page has printed, Click OK...
  • Page 87: Sharing A Network Printer

    Networking Basics Adding a local printer Go to Start> Printers and Faxes A successful installation will display the printer icon as shown at right. You have successfully added a local printer. Sharing a network printer After you have run the Network Setup Wizard on all the computers on your network, you can run the Add Printer Wizard on all the computers on your network.
  • Page 88 Networking Basics Sharing a network printer Click on Add a printer Click Next Select Network Printer Click Next...
  • Page 89 Networking Basics Sharing a network printer Select Browse for a printer Click Next Select the printer you would like to share Click Next Click Finish...
  • Page 90 Networking Basics Sharing a network printer To check for proper installation: Go to Start > Printers and Faxes The printer icon will appear at right, indicating proper installation. You have completed adding the printer. To share this printer on your network: Remember the printer name Run the Add Printer...
  • Page 91 Networking Basics Sharing an LPR printer To share an LPR printer (using a print server,) you will need a Print Server such as the DP-101P+. Please make sure that you have run the Network Setup Wizard on all the computers on your network. To share an LPR printer, please follow these directions: Go to Start >...
  • Page 92 Networking Basics Sharing an LPR printer This screen will show you information about your printer. Click Finish Select the printer you are adding from the list of Printers. Insert the printer driver disk that came with your printer. Click Have Disk If the printer driver is already installed, do the following: Select Keep existing...
  • Page 93 Networking Basics Sharing an LPR printer You can rename your printer if you choose. It is optional. Please remember the name of your printer. You will need this information when you use the Add Printer Wizard on the other computers on your network.
  • Page 94: Reset To Factory Default Settings

    After you have tried other methods for troubleshooting your network, you may choose to Reset the DI-804HV to the factory default settings. To hard-reset the D-Link DI-804HV to the Factory Default Settings, please do the following: Locate the Reset button on the back of the DI-804HV Use a paper clip to press the Reset button and power on.
  • Page 95: Technical Specifications

    Technical Specifications Standards IEEE 802.3 10BASET-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Flow Control ANSI/IEEE 802.3 NWay auto-negotiation VPN Pass Through Function PPTP L2TP IPSec Device Management Web-Based – Internet Explorer 6x or later; Netscape Navigator 6x or later;...
  • Page 96: Frequently Asked Questions

    Frequently Asked Questions Why can´t I access the web based configuration? When entering the IP Address of the DI-804HV (192.168.0.1), you are not connecting to the Internet or have to be connected to the Internet. The device has the utility built- in to a ROM chip in the device itself.
  • Page 97 Frequently Asked Questions (continued) Why can´t I access the web based configuration? (continued) What type of cable should I be using? (continued) What´s the difference between a crossover cable and a straight-through cable? The wiring in crossover and straight-through cables are different. The two types of cable have different purposes for different LAN configurations.
  • Page 98 Frequently Asked Questions (continued) Why can´t I access the web based configuration? (continued) Step 2 Disable any Internet security software running on the computer. Software firewalls like Zone Alarm, Black Ice, Sygate, Norton Personal Firewall, etc. might block access to the configuration pages. Check the help files included with your firewall software for more information on disabling or configuring it.
  • Page 99 Step 4 Check your IP Address. Your computer must have an IP Address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. How can I find my IP Address in Windows 95, 98, or Step 1 Click on Start, then click on Run.
  • Page 100 Step 4 (continued) Check your IP Address. Your computer must have an IP Address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. How can I find my IP Address in Windows 2000/XP? Step 1 Click on Start and select Run.
  • Page 101 Step 4 (continued) Check your IP Address. Your computer must have an IP Address in the same range of the device you are attempting to configure. Most D-Link devices use the 192.168.0.X range. Make sure you take note of your computer´s Default Gateway IP Address. The Default Gateway is the IP Address of the D-Link router.
  • Page 102 Frequently Asked Questions (continued) Why can´t I access the web based configuration? (continued) How can I assign a Static IP Address in Windows 2000? (continued) Click Use the following IP Address and enter an IP Address that is on the same subnet as the LAN IP Address on your router.
  • Page 103 Step 5 Access the web management. Open your web browser and enter the IP Address of your D-Link device in the address bar. This should open the login page for the web management. Follow instructions to login and complete the configuration.
  • Page 104 Frequently Asked Questions (continued) How can I setup my router to work with a Cable modem connection? Dynamic Cable connection (IE AT&T-BI, Cox, Adelphia, Rogers, Roadrunner, Charter, and Comcast). Note: Please configure the router with the computer that was last connected directly to the cable modem.
  • Page 105: Static Cable Connection

    Frequently Asked Questions (continued) How can I setup my router to work with a Cable modem connection? (continued) Step 3 Power cycle the cable modem and router: Turn the cable modem off (first) . Turn the router off Leave them off for 2 minutes.** Turn the cable modem on (first).
  • Page 106 Make sure you disable or uninstall any PPPoE software such as WinPoet or Enternet 300 from your computer or you will not be able to connect to the Internet. Step 1 Upgrade Firmware if needed. (Please visit the D-Link tech support website at: http://support.dlink.com for the latest firmware upgrade information.) Step 2 Take a paperclip and perform a hard reset.
  • Page 107 Step 9 Turn off your DSL modem for 2-3 minutes. Turn back on. Once the modem has established a link to your ISP, plug the power back into the D-Link router. Wait about 30 seconds and log back into the router.
  • Page 108 Frequently Asked Questions (continued) How can I establish a VPN connection with another DI-804HV router? Step 1 Log into the web based configuration of the router by typing in the IP address of the router (default: 192.168.0.1) in your web browser.
  • Page 109 Frequently Asked Questions (continued) How can I establish a VPN connection with another DI-804HV router? (continued) Step 4 In the Local Subnet and Local Netmask fields enter the network identifier for the local DI-804HV´s LAN and the corresponding subnet mask.
  • Page 110 Frequently Asked Questions (continued) How can I establish a VPN connection with another DI-804HV router? (continued) Step 8 Enter a name for proposal ID number 1 and select Group 1, 2, or 5 from the DH Group dropdown menu. Step 9...
  • Page 111 Frequently Asked Questions (continued) How can I establish a VPN connection with another DI-804HV router? (continued) Step 11 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index.
  • Page 112 Frequently Asked Questions (continued) How can I establish a VPN connection with another DI-804HV router? (continued) Step 15 Select DES or 3DES as the Encryption Algorithm and either SHA-1, MD5, or None as the Authentication Algorithm. Step 16 Enter a Lifetime value and then either select Sec.
  • Page 113 IKE Proposal and the IPSec Proposal. Also make sure that Step 4 is configured to reflect the LAN settings for what is now the Local DI-804HV and that Steps 5 & 6 are configured to reflect the Subnet and WAN IP of what is now...
  • Page 114 Tunnel Name for ID number 1, select IKE, and then click More. Step 4 In the Local Subnet and Local Netmask fields enter the network identifier for DI-804HV´s LAN and the corresponding subnet mask. Step 5 In the Remote Subnet and Remote Netmask fields enter the network identifier for the DI-804V´s LAN and the...
  • Page 115 Frequently Asked Questions (continued) How can I establish a VPN connection with a DI-804V router? (continued) Step 6 In the Remote Gateway field enter the WAN IP address of the remote DI-804V and in the Preshared Key field, enter a key which must be exactly the same as the Preshared Key that is configured on the DI-804V.
  • Page 116 Frequently Asked Questions (continued) How can I establish a VPN connection with a DI-804V router? (continued) Step 11 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index. Click Apply and then click Back.
  • Page 117 Click on Basic Setup and then select Device IP Settings on the left. Step 3 Change the LAN IP address so that it is on a different subnet than the LAN of the DI-804HV. Step 4 Click Next until you reach the Save & Restart screen. Click Save &...
  • Page 118 DI-804HV´s LAN. Step 8 In the Remote Gateway IP field enter the WAN IP address of the DI-804HV and make sure that the Network Interface is set to WAN Ethernet. Step 9 Verify that Secure Association is set to IKE and that Perfect Forward Secure is Disabled.
  • Page 119 After you have configured both routers, you need to establish a connection. Step 1 Open a command prompt and from a computer on the internal LAN of the DI-804HV and ping the IP address of a computer that is on the internal LAN of the DI-804V, or vice versa. Step 2...
  • Page 120 Tunnel Name for ID number 1, select IKE, and then click More. Step 4 In the Local Subnet and Local Netmask fields enter the network identifier for DI-804HV´s LAN and the corresponding subnet mask. Step 5 In the Remote Subnet and Remote Netmask fields enter the network identifier for the DFL-300´s...
  • Page 121 Frequently Asked Questions (continued) How can I establish a VPN connection with a DFL-300 firewall? (continued) Step 6 In the Remote Gateway field enter the WAN IP address of the remote DFL-300 and in the Preshared Key field, enter a key which must be exactly the same as the Preshared Key that is configured on the DFL-300.
  • Page 122 Frequently Asked Questions (continued) How can I establish a VPN connection with a DFL-300 firewall? (continued) Step 11 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IKE Proposal Index. Click Apply and then click Back.
  • Page 123 Frequently Asked Questions (continued) How can I establish a VPN connection with a DFL-300 firewall? (continued) Step 17 Select 1 out of the Proposal ID dropdown menu and click Add To, which will add the proposal that was just configured to the IPSec Proposal Index. Click Apply and then click Restart.
  • Page 124 Enter the network identifier and subnet mask of the Internal interface. Step 8 In the To Destination section, select either Remote Gateway—Fixed IP or Remote Gateway—Dynamic IP. Enter the WAN IP address of the DI-804HV if Remote Gateway—Fixed IP is selected. Step 9 Enter the network identifier corresponding subnet mask of the DI-804HV´s LAN.
  • Page 125 Inter- nal interface of the DFL-300 and ping the IP address of a computer that is on the internal LAN of the DI-804HV, or vice versa. Step 2 Once you begin to receive replies, the VPN connection has been established.
  • Page 126 Frequently Asked Questions (continued) How do I open ports on my router? To allow traffic from the internet to enter your local network, you will need to open up ports or the router will block the request. Step 1 Open your web browser and enter the IP Address of your D- Link router (192.168.0.1).
  • Page 127 DMZ hosts security, the Web pages might be corrupted but no other company information would be exposed. D-Link, a leading maker of routers, is one company that sells products designed for setting up...
  • Page 128 How do I configure the DMZ Host? (continued) Step 2 Log into the web based configuration DI-624 DI-804HV of the router by typing in the IP Address of the router (default:192.168.0.1) in your web browser. The username is admin (all...
  • Page 129 Frequently Asked Questions (continued) How do I open a range of ports on my DI-804HV using Firewall rules? Step 1 Access the router’s web configuration by entering the router’s IP Address in your web browser. The default IP Address is 192.168.0.1. Login using your password.
  • Page 130 192.168.0.7 How do I use PC Anywhere with my DI-804HV router? You will need to open 3 ports in the Virtual Server section of your D-Link router. Step 1 Open your web browser and enter the IP Address of the router (192.168.0.1).
  • Page 131 Frequently Asked Questions (continued) How do I use PC Anywhere with my DI-804HV router? (continued) Step 6 Create a second entry as shown here: pcanywhere2 Step 7 Click Apply and then click Continue. Step 8 Create a third and final entry as shown here:...
  • Page 132 Frequently Asked Questions (continued) How can I use eDonkey behind my D-Link Router? You must open ports on your router to allow incoming traffic while using eDonkey. eDonkey uses three ports (4 if using CLI): 4661 (TCP) To connect with a server 4662 (TCP) To connect with other clients 4665 (UDP) To communicate with servers other than the one you are connected to.
  • Page 133 Frequently Asked Questions (continued) How do I set up my router for SOCOM on my Playstation 2? To allow you to play SOCOM and hear audio, you must download the latest firmware for the router (if needed), enable Game Mode, and open port 6869 to the IP Address of your Playstation.
  • Page 134 Frequently Asked Questions (continued) How can I use Gamespy behind my D-Link router? Step 1 Open your web browser and enter the IP Address of the router (192.168.0.1). Enter admin for the username and your password (blank by default). Step 2 Click on the Advanced tab and then click Virtual Server on the left side.
  • Page 135 Frequently Asked Questions (continued) How do I configure my router for KaZaA and Grokster? The following is for KaZaA, Grokster, and others using the FastTrack P2P file sharing system. In most cases, you do not have to configure anything on the router or on the Kazaa software.
  • Page 136 Frequently Asked Questions (continued) How do I configure my router to play Warcraft 3? You must open ports on your router to allow incoming traffic while hosting a game in Warcraft 3. To play a game, you do not have to configure your router. Warcraft 3 (Battlenet) uses port 6112.
  • Page 137 Frequently Asked Questions (continued) How do I use NetMeeting with my D-Link Router? Unlike most TCP/IP applications, NetMeeting uses DYNAMIC PORTS instead of STATIC PORTS. That means that each NetMeeting connection is somewhat different than the last. For instance, the HTTP web site application uses port 80. NetMeeting can use any of over 60,000 different ports.
  • Page 138 Frequently Asked Questions (continued) How do I set up my router to use iChat? -for Macintosh users- (continued) Step 3 Create a new firewall rule: Click Enabled. Enter a name (ichat1). Click Allow. Next to Source, select ichat1 WAN under interface. In the first box, enter an *.
  • Page 139 Frequently Asked Questions (continued) How do I set up my router to use iChat? -for Macintosh users- For File Sharing: Step 1 Click on Advanced and then Virtual Server. Step 2 Check Enabled to activate entry. ichat3 Step 3 6500 Enter a name for your 6500 virtual server entry (ichat3).
  • Page 140 Frequently Asked Questions (continued) How do I send or receive a file via iChat when the Mac OSX firewall is active? -for Macintosh users- Mac OS X 10.2 and later The following information is from the online Macintosh AppleCare knowledge base: “iChat cannot send or receive a file when the Mac OS X firewall is active in its default state.
  • Page 141 Simply put, it is a method of connecting multiple computers to the Internet (or any other IP network) using one IP Address. D-Link´s broadband routers (ie: DI-804HV) support NAT. With proper configuration, multiple users can access the Internet using a single account via the NAT device.
  • Page 142: Contacting Technical Support

    Contacting Technical Support You can find the most recent software and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States for the duration of the warranty period on this product. U.S. customers can contact D-Link technical support through our web site, or by phone.
  • Page 143: Warranty

    D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model or part.
  • Page 144 D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product...
  • Page 145 Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their respective manufacturers or owners.
  • Page 146: Registration

    Registration Register online your D-Link product at http://support.dlink.com/register/...
