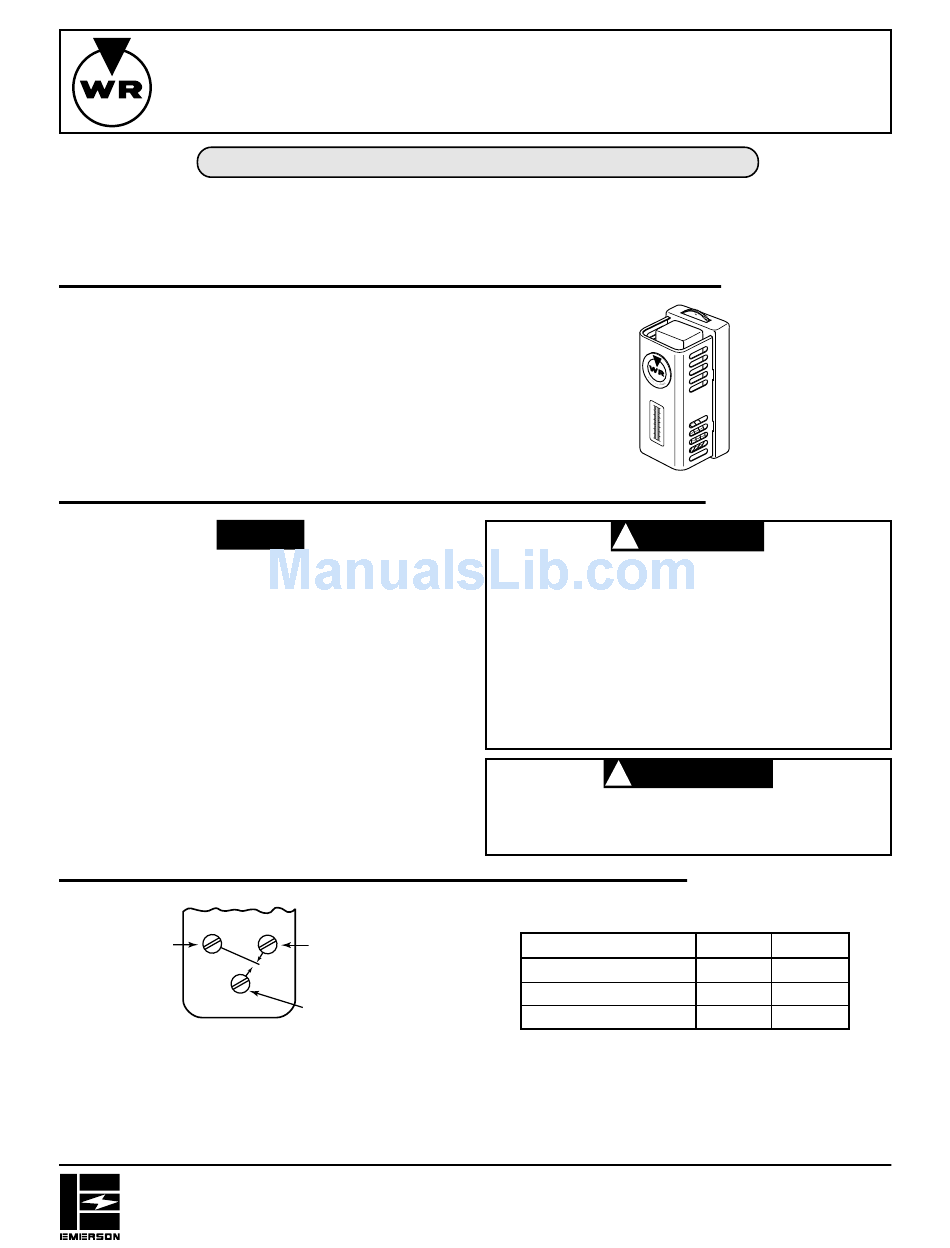

White Rodgers 179 Installation Instructions

WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL
INJURY AND/OR PROPERTY DAMAGE.
These room thermostats are specially designed to control
combination heating and cooling equipment that operates on
line voltage.
These controls are suitable for fans or water solenoids on
heating/cooling convectors or any similar application that re-
quires a heavy duty room thermostat with single pole, double
throw (SPDT) switch action.
NOTE
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air condi-
tioning contractor or electrician.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical codes and
ordinances.
This control is a precision instrument, and should be handled
carefully. Rough handling or distorting components could cause
the control to malfunction.
This control has been accurately calibrated at the factory. Any
attempt to calibrate this control will void the White-Rodgers
warranty.
Red
Common
White
These controls have a single pole, double throw (SPDT) snap
action switch. The top left-hand terminal (red) is the common
terminal. The top right-hand terminal (blue) has open-on-rise
switch action. The bottom center terminal (white) has close-on-
rise switch action.
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS ROAD
ST. LOUIS, MISSOURI 63123-5398
Blue
Open on rise
of temperature
Close on rise
of temperature
Printed in U.S.A.
Type 179
SPDT Heating/Cooling Room Thermostat

INSTALLATION INSTRUCTIONS

9 0
7 0
8 0
5 0 6 0
4 0
CAUTION
!
To prevent electrical shock and/or equipment damage
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dan-
gerous operation.
Following installation or replacement, follow appli-
ance manufacturer's recommended installation and/
or service instructions to insure proper operation.
WARNING
!
Do not use on circuits exceeding specified voltage.
Higher voltage will damage control and could cause
shock or fire hazard.
Electrical Rating
A.C. Motor Rating
Full Load Current
Locked Rotor Current
Non-Inductive
DESCRIPTION
PRECAUTIONS

SPECIFICATIONS

120 VAC 240 VAC
7.4 A 3.7 A
44.5 A 22.2 A
24 A 20 A
PART NO. 37-0885B
Replaces 37-0885A
0017
