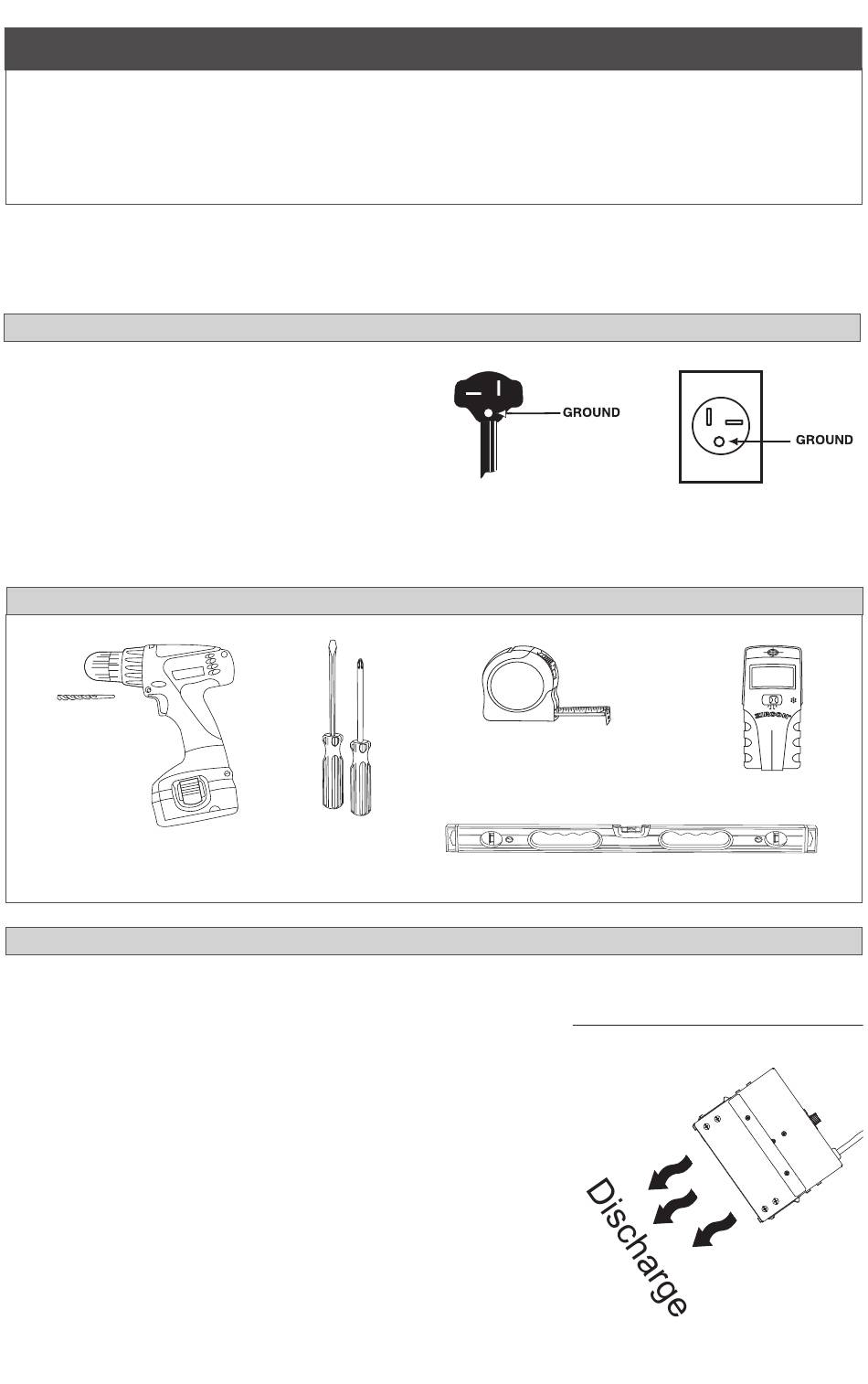

INSTALLATION INSTRUCTIONS

WARNING: To reduce the risk of fire,
do not store or use gasoline or other
flammable vapors or liquids in the
vicinity of the heater.
Unanswered questions? Call our technical support team in Vancouver,
Washington at 855.223.3887 or outside the US at 360.693.2505.
This heater is for use on 240 Volts.
The cord has a plug as shown on
Figure 1. No adapter should be
used with this unit. The type outlet
is a 240 Volt grounding outlet.
When properly installed, it provides
a ground connection through the
cord to the heater to protect the
operator from electric shock.
Drill and Drill Bits
The heater is intended for flat use on a hard
floor, table top, desk or on shelf, and the like,
or suspended on a wall or ceiling by means of
provided hanger bracket.
When suspended from wall or ceiling, heater
should be located along outside walls to
provide perimeter air circulation.
The discharge air should wipe the walls
without blowing directly on them (Figure 2).
If heater is to be tilted on horizontal axis after
mounting - ensure a minimum clearance of
26.5 in. (67 cm) between floor and bottom
of heater. Also, when mounted to ceiling,
ensure a minimum clearance of 3.5 in. (9 cm)
from ceiling to top of heater. Ensure the air
discharge is parallel to or away from walls.
GROUNDING INSTRUCTIONS
TOOLS REQUIRED
Straight
and Phillips
Screwdrivers
HEATER LOCATION AND CLEARANCES
3
CAUTION: High temperature, risk of
fire, keep electrical cords, drapery,
furnishings, and other combustibles
at least 3 feet (0.9 m) from the front
of the heater.
Plug Configuration
NEMA #6-20P
Tape Measure
Outside Wall
Receptacle Configuration
NEMA #6-20R
Stud Finder
Level
Figure 1
Figure 2
