Touch Switch
D5C
Unique 18-mm-dia. Capacitive Touch
Switch with Choice of Three Actuators is
Activated with Only a Very Slight
Physical Contact
• Only a slight activation force is required, enabling detecting micro
deflections, thin wires, or thin-plate conductors (e.g., steel or
stainless).
Application possible for non-conductors by indirectly connecting to
ground.
• Instantaneous operation upon contact with extremely limited
hysteresis for high-precision position detection.
• Diameter of only 18 mm with standard built-in amplifier, operation
indicator, and sensitivity adjustment.
• Conforms to IEC IP67 *
• Freely replaceable antenna with screw mounting.
• Free attachment to enable changing the antenna shape according to
the application.
* Malfunction may occur if used in locations subject to water or oil.

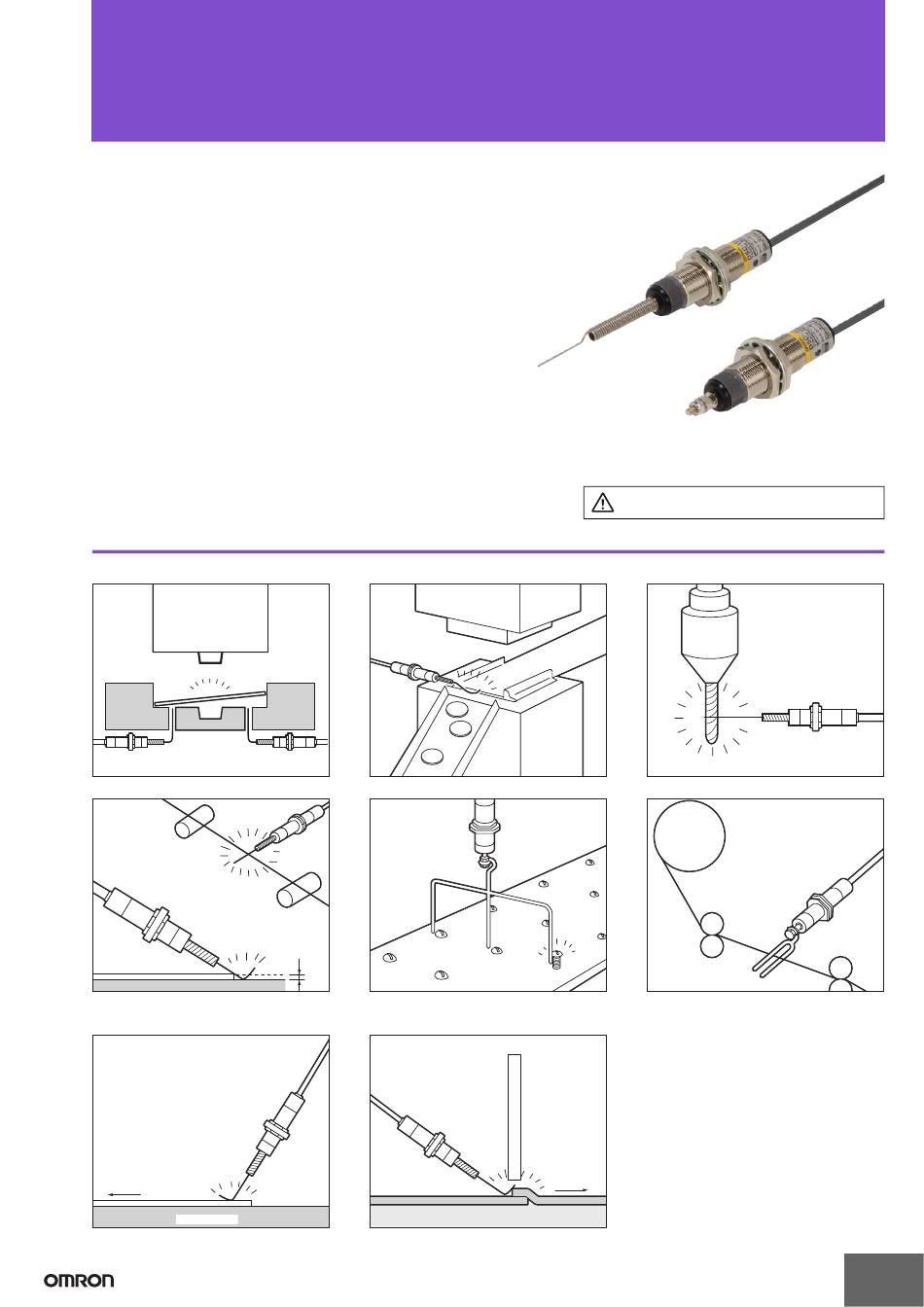

Application Examples
Detection of Incorrectly Set Work
Press
D5C
Detection of Fine Wire or Thin Plate
Wire
D5C
Steel plate
Detection of End of Cloth or Paper
(Detected with indirect ground)
The D5C detects the end of the paper or cloth
when the antenna touches ground.
D5C
Paper or cloth
Ground surface
Press Position Confirmation
Press
D5C
D5C
Detection of Loose Screws
D5C
1.0 mm
Detection of Seams in Cloth or Paper
(Detected with indirect ground)
The D5C detects the seam when the antenna
touches ground pole.
D5C
Paper or cloth
Be sure to read Safety Precautions on page 6 to 7 and
Safety Precautions for All Limit Switches.
Detection of Bent Drills
Detection of Loose Wires
D5C
Ground pole
CSM_D5C_DS_E_4_3
D5C
D5C
1
