Exmark STANDON Operator's Manual

To fit turf tracer x-series n0 models
Hide thumbs Also See for STANDON:
Table of Contents

Advertisement

Quick Links

Download this manual
STANDON
To Fit Turf Tracer® X-Series "N0" Models
316,000,000 & Higher
Part No. 4502-665 Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Exmark STANDON

Summary of Contents for Exmark STANDON

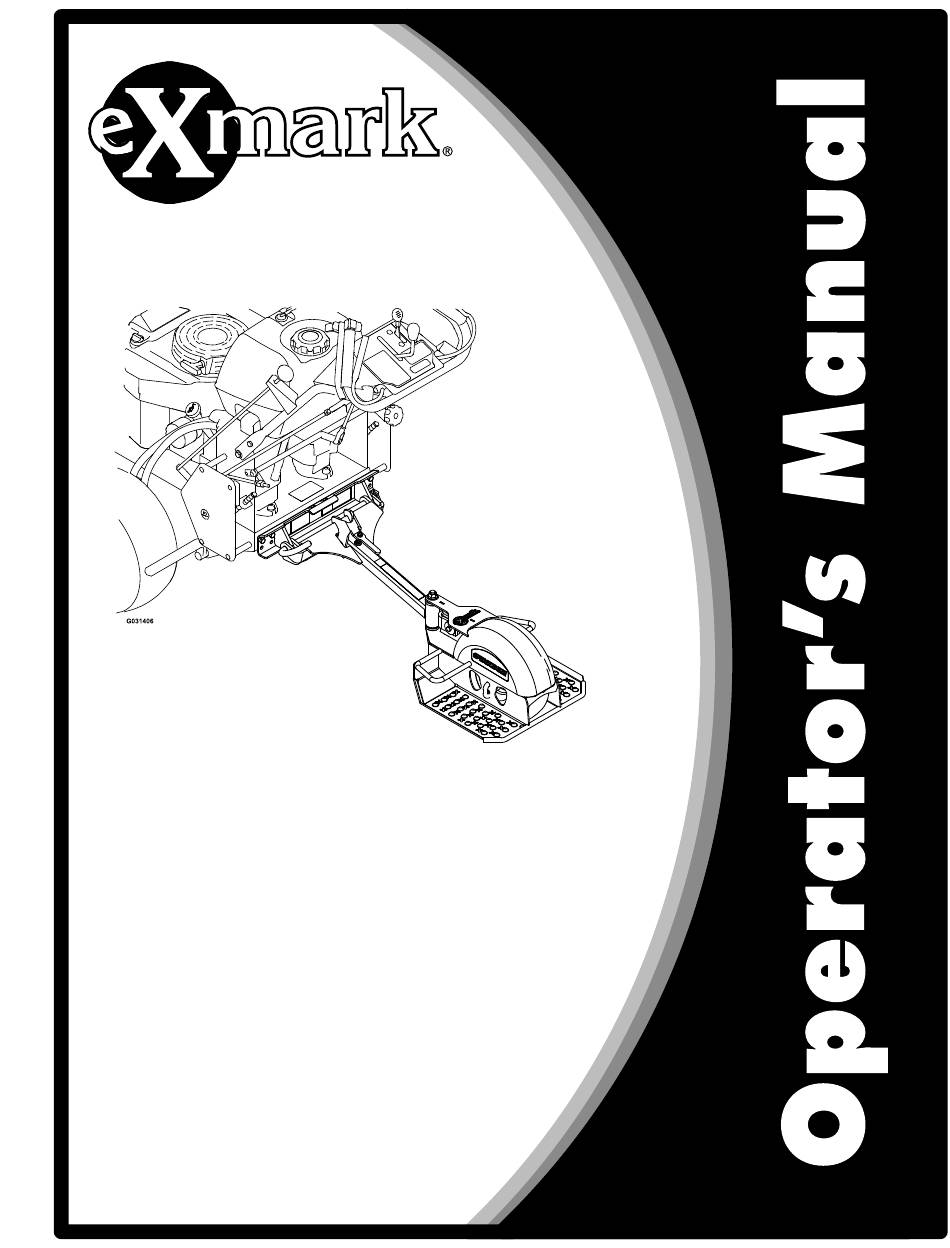

  • Page 1 STANDON To Fit Turf Tracer® X-Series “N0” Models 316,000,000 & Higher Part No. 4502-665 Rev. A...
  • Page 2 State of California to cause cancer, birth defects, or reproductive harm. Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously.

  • Page 3: Introduction

    Introduction CONGRATULATIONS on the purchase of your Exmark StandOn. This product has been carefully designed and manufactured to give you a maximum amount of dependability and years of trouble-free operation. This manual contains operating, maintenance, adjustment, and safety instructions for your Exmark StandOn.

  • Page 4: Table Of Contents

    Setup ..............9 Operation ..............11 Pre-Start............11 Operating Instructions ........11 Transporting ..........11 Maintenance ............12 Recommended Maintenance Schedule(s) ....12 Periodic Maintenance ........12 Inspect StandOn ..........12 Check StandOn for Buildup......12 Lubricate Grease Fittings........12 Lubricate Caster Wheel Hubs ......12 Adjustments ............14 Tire Adjustment ..........14...

  • Page 5: Safety

    The safety alert symbol appears above information herself, other people or property. which alerts you to unsafe actions or situations • Only allow the machine operator on the StandOn. and will be followed by the word DANGER, WARNING, or CAUTION.
  • Page 6 • Park machine on level ground. Stop engine, wait stability. for all moving parts to stop, remove key and engage parking brake whenever you leave the • Always install and remove the StandOn as mower. instructed. Failure to do so will cause a reduction in stability or traction.

  • Page 7: Safety And Instructional Decals

    Exmark commercial mower. 116-8225 126-1400 1. Entanglement hazard-Stop the engine before reaching 1. Warning-Read the Operator’s manual. Use only Exmark underneath; stay away from moving parts; keep all riding attachments. Use of other riding attachments may guards in place.

  • Page 8: Specifications

    Specifications Specifications Systems Tire Tread Size Semi-Pneumatic Smooth 11 x 4.00-5 For operators over 250 lb, it is recommended to use pneumatic tire assembly P/N 103-3798. Dimensions Overall Width: 18.5 inches (47.0 cm) Overall Length: 35.4 inches (89.9 cm) Overall Height: 14.6 inches (37.1 cm) Weight: 50 lb (23 kg)

  • Page 9: Setup

    Setup Setup Item Item Quantity Description Quantity Description Nut, Nyloc 3/8-16 Flg Screw-HH 1/2-13 x 5 Plate, Back-Up Nut-Nyloc 1/2-13 Pin-Lynch Asm-Sulky Frame W/Decals Pin-Pivot Screw, HH 3/8-16 x 1 1/4 Washer–Spring Disc Asm-Mount Plate W/Decals Decals-Replacement Asm-Drawbar W/Brgs and Decal Cover-Dust *Not shown in illustration...
  • Page 10 Setup Installing the Mount Plate: Align the mount plate to the rear surface of the engine deck. Install the mount plate to the engine deck using four 3/8-16 x 1 1/4 inch hex screws, two backup plates, and four 3/8-16 inch nyloc nuts as shown in Figure 3. Figure 4 1.

  • Page 11: Operation

    2. Practice operating the machine without the StandOn until familiar with the controls. 3. Practice operating the machine with the StandOn attached on large, open, level terrain with no obstacles present before use. The StandOn will affect the machine operation, especially on slopes, when turning, and when stopping.

  • Page 12: Maintenance

    Remove the key from the ignition switch, engage parking brake, and pull the wire(s) off the spark plug(s) before you do any maintenance to the unit or StandOn. Also push the wire(s) aside so it does not accidentally contact the spark plug(s). Recommended Maintenance Schedule(s)
  • Page 13 6. Pack the bearings with a NGLI grade #1 multi-purpose grease. 7. Insert one bearing, one new seal into the wheel. Note: Seals (Exmark PN 103-0063) must be replaced. 8. If the axle assembly has had both spacer nuts removed (or broken loose), apply a thread locking adhesive to one spacer nut and thread onto the axle with the wrench flats facing outward.

  • Page 14: Adjustments

    Maintenance Adjustments Tire Adjustment To obtain additional ground clearance, the platform wheel can be repositioned (see Figure 8). Figure 8 1. Wheel can be mounted in either hole for height adjustment Note: To achieve more ground clearance for higher cutting heights, raise the platform by using the lower wheel adjustment hole.
  • Page 15 No Claim of breach of warranty shall be cause for cancellation recommended in the operator's manual or other operational or rescission of the contract of sale of any Exmark attachment instructions provided by Exmark. or accessory.
  • Page 16 Notes:...
  • Page 17 Notes:...
  • Page 18 Service Record Date: Description of Work Done: Service Done By:...
  • Page 19 G011841 Figure 9 This page may be copied for personal use. 1. The maximum slope you can safely operate the machine on is 20 degrees. Use the slope indicator to determine the degree of slope of hills before operating. Do Not operate this machine on a slope greater than 20 degrees. Fold along the appropriate line to match the recommended slope.
  • Page 20 Place Model No. and Serial No. Date Purchased Label Here (Included in the Literature Pack) or Fill in Below Model No. Serial No. ©2015 Exmark Mfg. Co., Inc. Part No. 4502-665 Rev. A Industrial Park Box 808 (402) 223-6300 Beatrice, NE 68310 Fax (402) 223-5489...
