Summary of Contents for Exmark STANDON

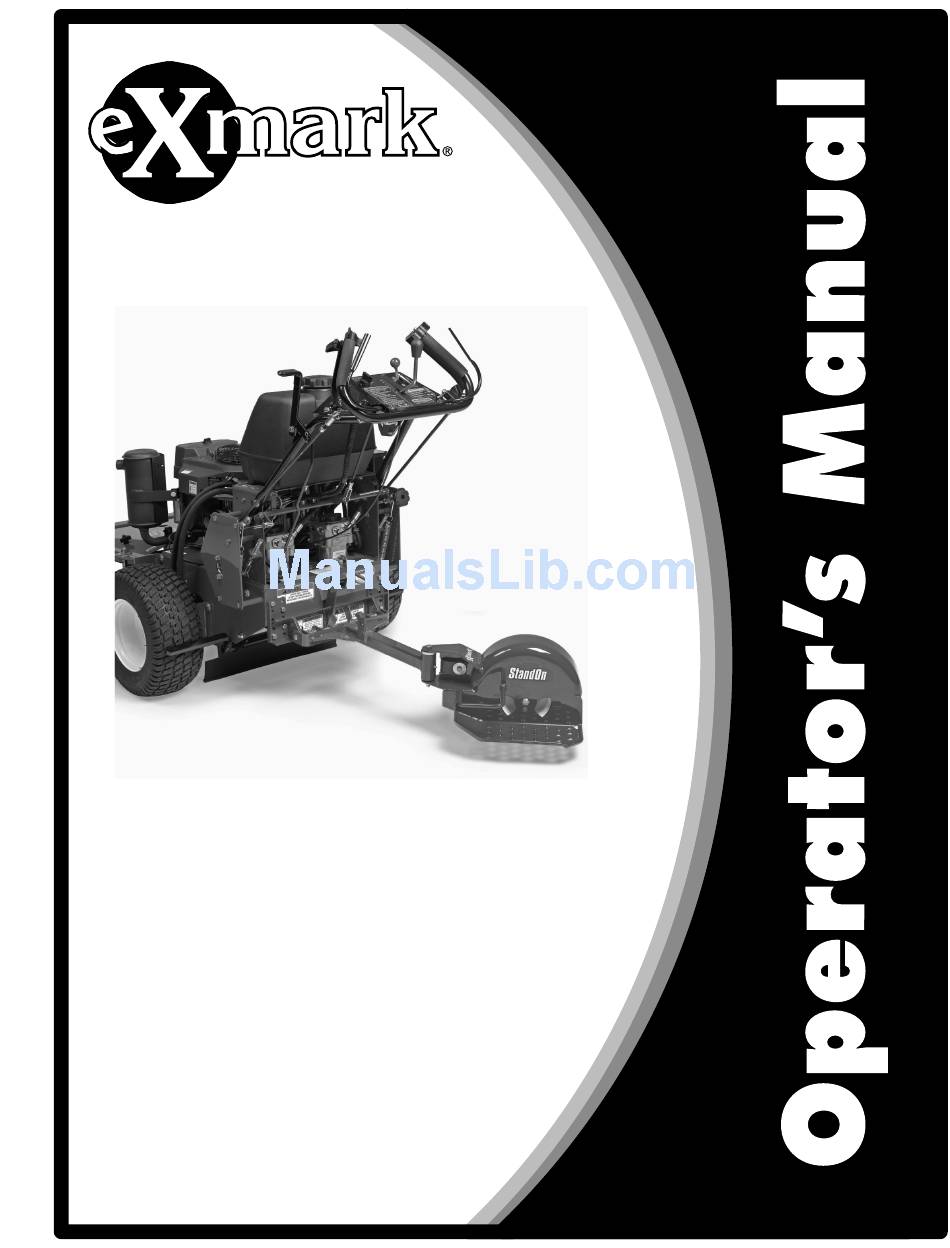

- Page 1 STANDON For Serial Nos. 850,000 & Higher Part No. 4500-620 Rev. B...
- Page 2 Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be...
-
Page 3: Introduction
All Exmark parts are thoroughly tested and inspected before leaving the factory, however, attention is required on your part if you are to obtain the fullest measure of satisfaction and performance. -
Page 4: Table Of Contents
Contents Introduction ............3 Safety ..............5 Safety Alert Symbol ......... 5 Safe Operating Practices ........5 Safety and Instructional Decals ....... 7 Specifications ............8 Model Numbers ..........8 Dimensions............. 8 Tire ..............8 Setup ..............9 Assembly Diagram .......... 9 Installing the StandOn Rider to Mower... -
Page 5: Safety
Will result in death or serious injury. perform the job. Only use on machines approved by Exmark. WARNING: Black lettering / Orange background. Indicates a potentially hazardous situation which, if •... -
Page 6: Slope Operation
Safety Operation • Always avoid sudden starting or stopping on a slope. If tires lose traction, disengage the blades • Operate only in daylight or good artificial light, and proceed slowly off the slope. keeping away from holes and hidden hazards. •... -
Page 7: Safety And Instructional Decals
Exmark equipment dealer or labels. distributor or from Exmark Mfg. Co. Inc. • Replace all worn, damaged, or missing safety • Safety signs may be affixed by peeling off the signs. -
Page 8: Specifications
Specifications Specifications Model Numbers Serial Nos: 850,000 and Higher STANDON Dimensions Length Width Height Weight 35.4 inches 18.5 inches 14.9 inches 50 lb (23kg) (89.9 cm) (47.0 cm) (37.9 cm) Tire Tread Size Semi-Pneumatic Smooth 11 x 4.00–5 Tire For Operators over 250 lb it is recommended to use pneumatic tire assembly P/N 103-3798. -
Page 9: Setup
Setup Setup Assembly Diagram Item Quantity Description Nut, Nyloc 3/8-16 Flg Plate, Back-Up Plate, Adapter Screw, HH 3/8-16 x 1 1/4 Asm, Frame Pull W/Decals Asm, Pull Arm W/Brgs Guard, Top Screw, HH 3/8–16 x 4 3/4 Nut, Hex Flg-Side Lock 3/8-16 Asm, Sulky Frame W/Decals Decals, Replacement (Turf Tracer and Viking Hydro Only) -
Page 10: Installing The Standon Rider To Mower
Setup Installing the StandOn Rider to Mower Mounting the Pull Frame 1. Locate the pull frame and two adapter plates. Install the pull frame to the adapter plates using four 3/8-16 x 1 1/4 inch hex capscrews and four 3/8-16 inch nyloc nuts as shown in Figure 4. Figure 5 1. - Page 11 Setup Choose the mount holes that will attain a distance of approximately 8 inches. b. Install the adapter plates to the mower engine deck using two 3/8-16 x 1/4 inch hex capscrews and two 3/8-16 inch flanged nyloc nuts as shown in Figure 9. Figure 7 1.
- Page 12 Setup Important: For optimal performance, the StandOn pull arm top surface should be horizontal to the ground surface. To obtain a position as close to horizontal as possible, the adjustment brackets and the platform wheel can be repositioned (see Adapter Plate and Tire Adjustment section in Maintenance).
-
Page 13: Operation
Operation Operation 1. Use care when turning to ensure that you Do Not swing yourself and the sulky into obstacles. Note: Determine the left and right sides of the 2. When turning, lean forward and toward the machine from the normal operating position. direction of the turn to help in keeping balance. -
Page 14: Maintenance
Maintenance Maintenance Note: Determine the left and right sides of the machine from the normal operating position. WARNING While maintenance or adjustments are being made, someone could start the engine. Accidental starting of the engine could seriously injure you or other bystanders. Remove the key from the ignition switch, engage parking brake, and pull the wire(s) off the spark plug(s) before you do any... -
Page 15: Lubricate Caster Wheel Hubs
6. Pack the bearings with a NGLI grade #1 multi-purpose grease. 7. Insert one bearing, one new seal into the wheel. Note: Seals (Exmark PN 103-0063) must be replaced. 8. If the axle assembly has had both spacer nuts removed (or broken loose), apply a thread locking adhesive to one spacer nut and thread onto the axle with the wrench flats facing outward. -
Page 16: Adjustments
Maintenance Adjustments Adapter Plate and Tire Adjustment Important: For optimal performance, the StandOn pull arm top surface should be horizontal to the ground surface. To obtain a horizontal pull arm, the adapter plates and the platform wheel can be repositioned (see Figure 14). - Page 17 No Claim of breach of warranty shall be cause for cancellation instructions provided by Exmark. or rescission of the contract of sale of any Exmark attachment All warranty work must be performed by an authorized or accessory.
- Page 18 Service Record Date: Description of Work Done: Service Done By:...
- Page 19 Figure 15 This page may be copied for personal use. 1. The maximum slope you can safely operate the machine on is 20 degrees. Use the slope indicator to determine the degree of slope of hills before operating. Do Not operate this machine on a slope greater than 20 degrees. Fold along the appropriate line to match the recommended slope.
- Page 20 SEE EXMARK’S COMPLETE LINE OF ACCESSORIES AND OPTIONS MID-MOUNT RIDING ACCESSORIES AND OPTIONS CUSTOM RIDE SEAT SUSPENSION SYSTEM OPERATOR CONTROLLED DISCHARGE FULL SUSPENSION SEAT ROLL OVER PROTECTION SYSTEM (ROPS) DECK LIFT ASSIST KIT SUN SHADE HITCH KIT TRASH CONTAINER LIGHT KIT...
