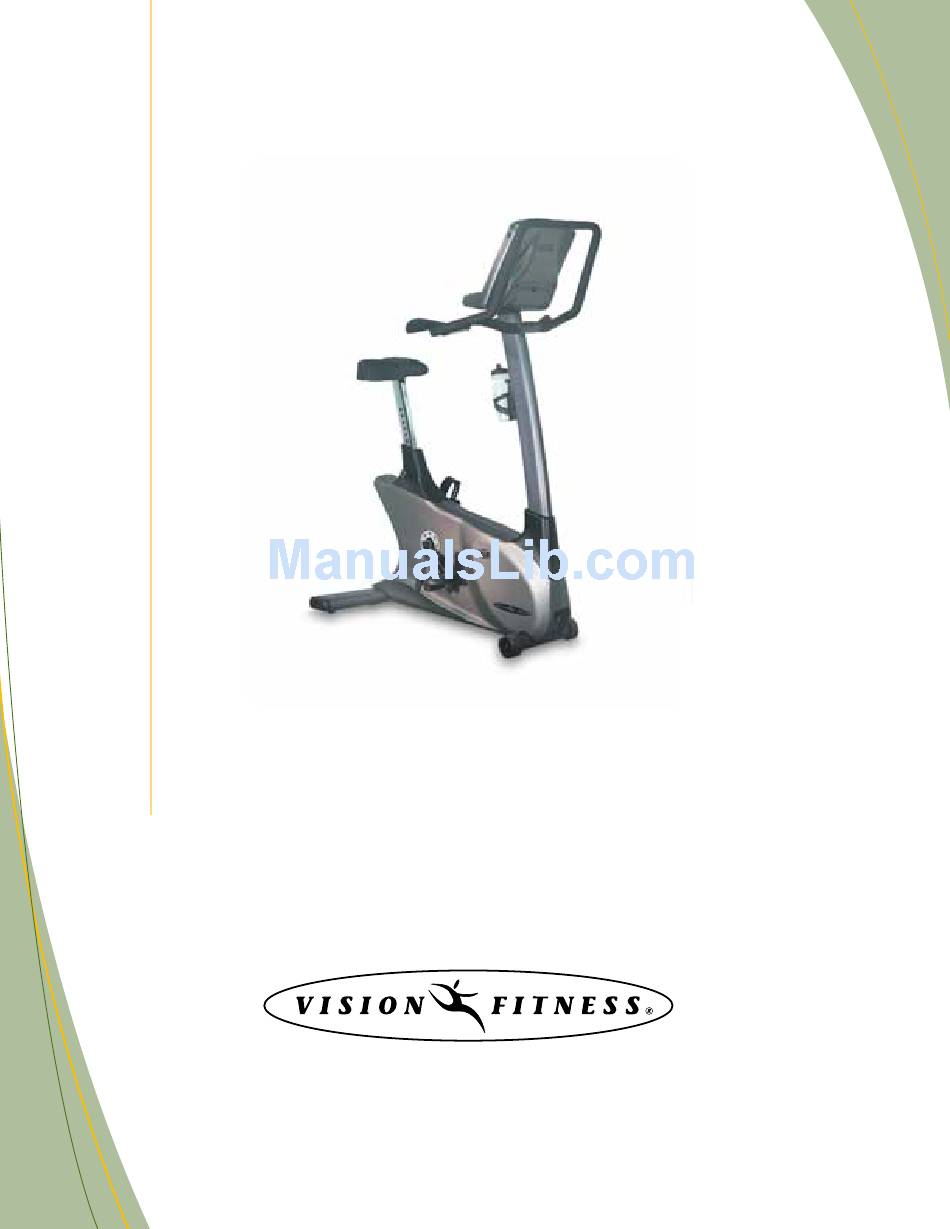

- Page 1 A s s e m b l y G u i d e E3600iNetTV COMMERCIAL FITNESS BIKE...
- Page 2 Also, during each assembly step, ensure that ALL screws are in place and partially threaded in before completely tightening any ONE screw. STEP A s s e m b l y G u i d e E3600iNetTV COMMERCIAL FITNESS BIKE STEP STEP STEP...
-
Page 3: Console Box
TOOLS & PARTS INCLUDED Screwdriver Pedal Wrench Allen Wrench PARTS BOX Console Mast Cover, Qty: 1 CONSOLE BOX Water Bottle & Cage, Qty: 1 Heart Rate Chest Strap, Qty: 1 Color-coded Hardware Bags iNetTV Console Assembly Guide Owner’s Guide Warranty Card... -
Page 4: Hardware Included
HARDWARE INCLUDED ORANGE BAG PINK BAG M8 x 65L Screw M8 x 20L Screw Quantity: 2 Quantity: 2 M8 Lock Washer M8 x 20L Screw Quantity: 4 M8 Lock Washer Quantity: 2 Quantity: 2 BLUE BAG M8 Lock Washer M8 x 15L Screw Quantity: 6 Quantity: 7... - Page 5 ORANGE BAG STEP • Install the rear foot with the four lock washers (M8), two inside screws (M8x65L), and two outside screws STEP (M8x20L). Tighten with the 5 Allen wrench.
- Page 6 BLUE BAG STEP STEP • Slide the rubber boot onto the console mast. • Locate the bundle of wires that comes from the bracket on top of the bike frame. Wrap these wires with the wire tie coming from the bottom of the console mast.
- Page 7 PINK BAG STEP • Feed the heart rate wires from the handlebars through the small hole located in the front of the console STEP mast. Pull these wires up through the hole at the top of the console mast. Attach the handlebar to the console mast using two lock washers (M8) and two screws (M8x20L).
- Page 8 Insert the water bottle. WIRES 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2002 Vision Fitness. All Rights Reserved. 8.02 Part #Z36CB40-AG1824PRD AG18.24PRD REV1...
