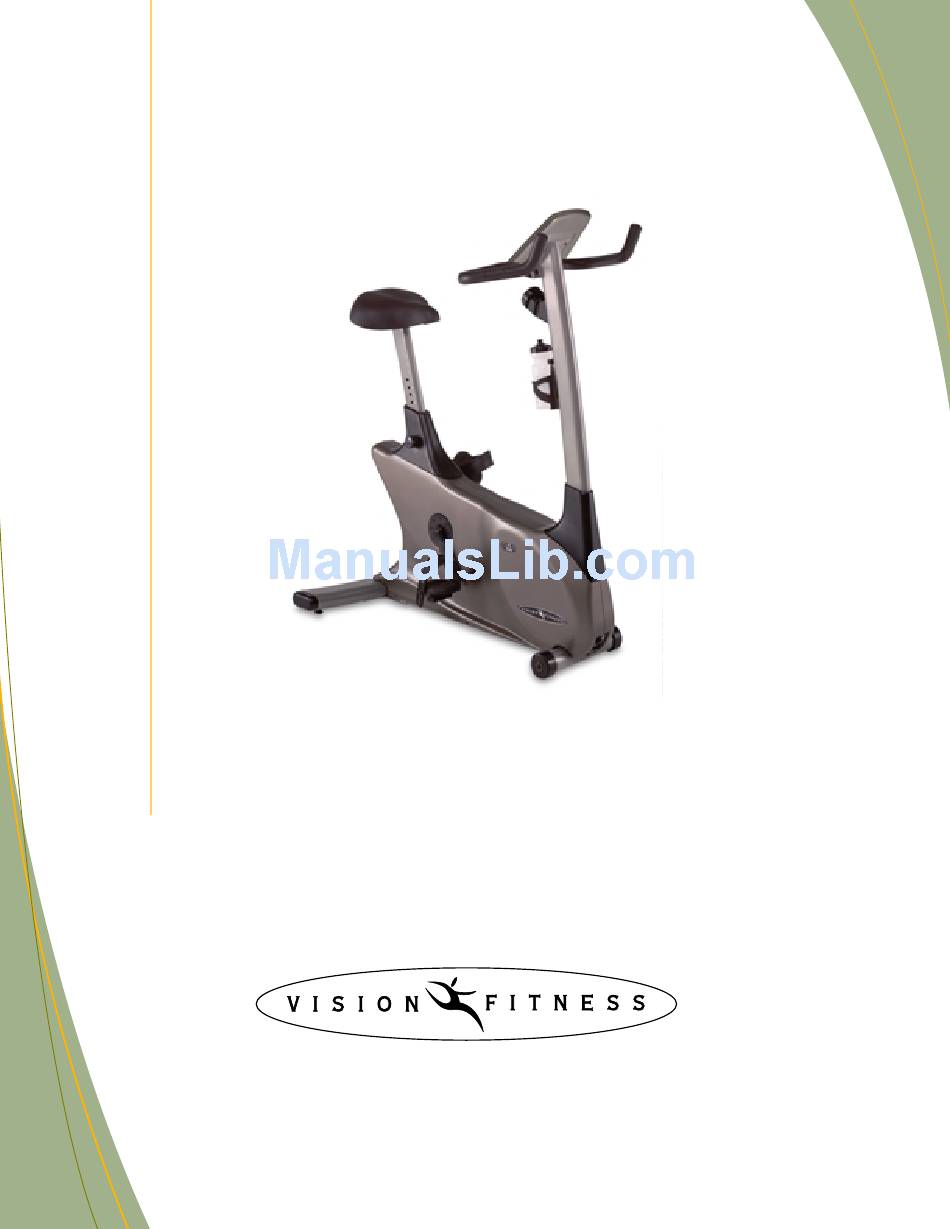

- Page 1 A s s e m b l y G u i d e E3100 E3000 UPRIGHT FITNESS CYCLES...
- Page 2 A s s e m b l y G u i d e E3100 E3000 UPRIGHT FITNESS CYCLES To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
- Page 3 Allen Wrench Screwdriver L-Shaped Wrench PARTS BOX Water Bottle & Bracket, Qty: 1 Power Supply, Qty: 1 (E3100 ONLY) Tension Control Knob and bracket, Qty: 1 (E3000 ONLY) Pedals, Qty: 2 Seat Post Knob, Qty: 1 Color-coded Hardware Bags, Qty: 1 Owner’s Guide, Qty: 1...
-
Page 4: Hardware Included
HARDWARE INCLUDED ORANGE BAG M8 Lockwasher M8 x 20L Screw Quantity: 4 Quantity: 2 M8 x 65L Screw Quantity: 2 PINK BAG M8 x 15L Screws M8 x 20L Screw M5 x 15L Screws Quantity: 7 Quantity: 2 Quantity: 2 M5 Washer M8 Lockwashers M5 x 70L Screws... - Page 5 ORANGE BAG STEP • Slide the rear foot into place and secure with two bolts (M8x20L) and two lock washers (M8) to the outside holes. Secure with two bolts (M8x65L) and two lock washers (M8) to the inside holes. Tighten with the 5 Allen wrench.
- Page 6 (M5x15L) using the E3100 ONLY screwdriver. Insert the water bottle into the cage. • MODEL E3100: Attach the water bottle cage to the console mast with two screws (M5x15L) using the screwdriver. Insert the water bottle into the cage.
- Page 7 GREEN BAG STEP • Slide the seat post cover onto the seat post • Slide the seat post into the frame and lower the seat post cover into place. • Screw the adjustment knob through the seat post cover and into place on the frame.
- Page 8 15 pedal wrench. STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2002 Vision Fitness. All Rights Reserved. 8.02 Part #Z30CB35-AG1818PRD AG18.18PRD REV1...
