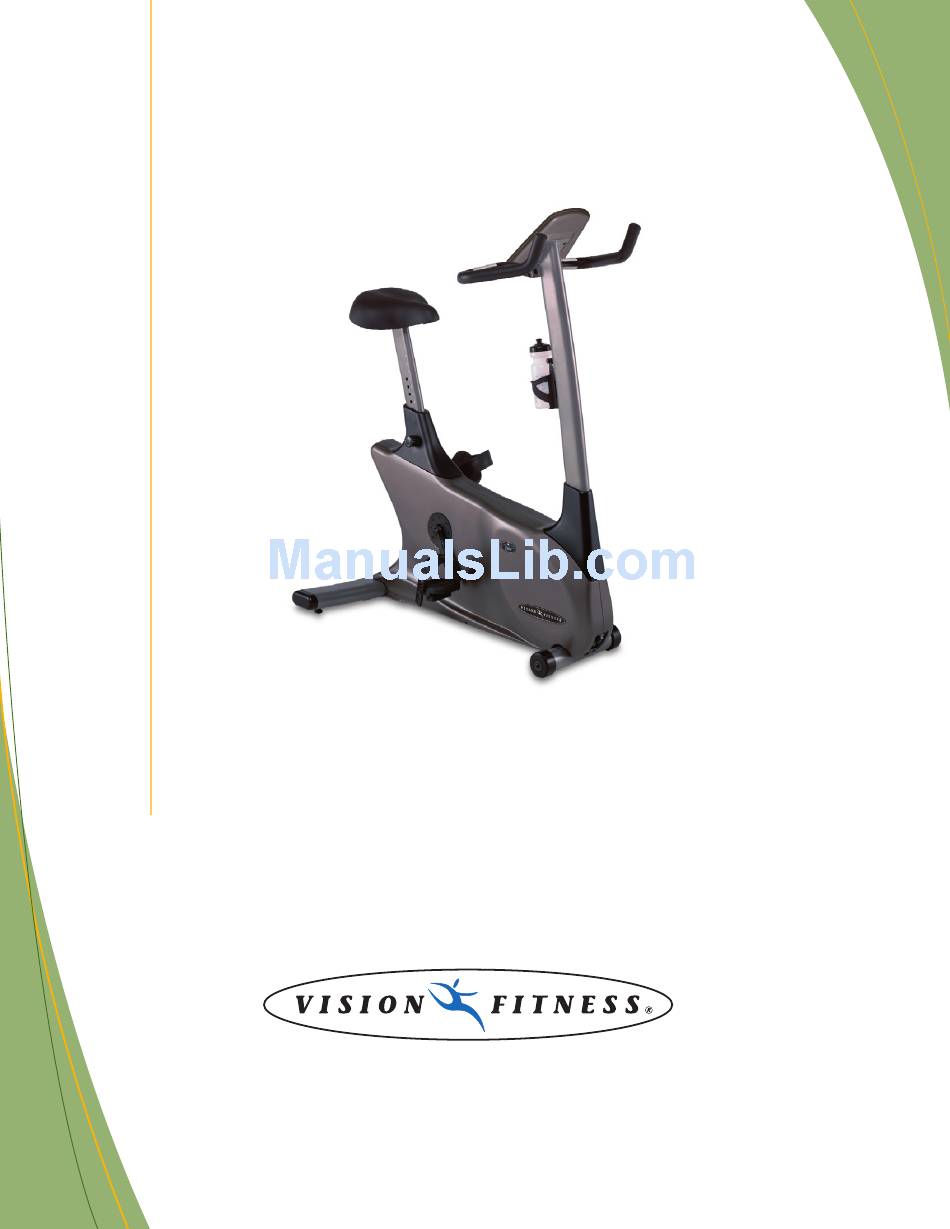

- Page 1 A s s e m b l y G u i d e E3100 E3000 UPRIGHT FITNESS CYCLES...
- Page 2 A s s e m b l y G u i d e E3100 AND E3000 UPRIGHT FITNESS CYCLES To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
- Page 3 5mm Allen Wrench Screwdriver 5mm L-Shaped Wrench PARTS BOX Water Bottle & Bracket, Qty: 1 Power Supply, Qty: 1 (E3100 ONLY) Tension Control Knob and bracket, Qty: 1 (E3000 ONLY) Pedals, Qty: 2 Seat Post Knob, Qty: 1 Color-coded Hardware Bags, Qty: 1 Owner’s Guide, Qty: 1...
-
Page 4: Hardware Included
HARDWARE INCLUDED ORANGE BAG M8 Lockwasher M8 x 20L Screw Quantity: 4 Quantity: 2 M8 x 65L Screw Quantity: 2 PINK BAG M8 x 15L Screw M8 x 20L Screw M5 x 15L Screw Quantity: 7 Quantity: 2 Quantity: 2 M5 Washer M8 Lockwashers M5 x 70L Screws... - Page 5 ORANGE BAG STEP • Slide the rear foot into place and insert screws (M8x20L) with lock washers (M8) to the outside holes. Insert two screws (M8x65L) with two lock washers (M8) to the inside holes. Tighten all screws with the 5mm Allen wrench. Rear Foot STEP...
- Page 6 Attach the console to the console mast using the four mounting screws that were just removed. Waterbottle Cage • Attach the water bottle cage to the console mast with two screws (M5x15L) using the screwdriver. Insert the water bottle into the cage. E3100 ONLY...
- Page 7 GREEN BAG STEP • Slide the seat post cover onto the seat post • Slide the seat post into the frame and lower the seat post cover into place. • Insert the adjustment knob through the Seat Post seat post cover and tighten in place. •...
- Page 8 15mm pedal wrench. STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2004 Vision Fitness. All Rights Reserved. 5.04 Part #Z30CB35D-AG AG18.18PRD REV3...
