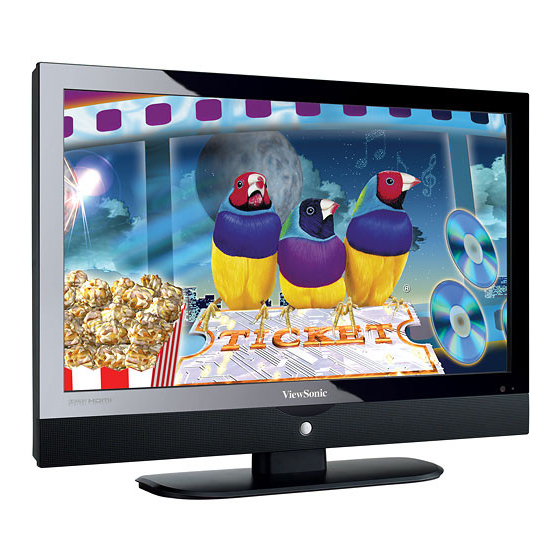

- Page 1 ViewSonic ® N4251w LCD TV - User Guide - Guide de l’utilisateur - Guía del usuario ViewSonic Model No. : VS11502-1M ®...
-
Page 2: Table Of Contents
Antenna Installation Instructions ... 5 Cleaning the LCD TV ... 5 Getting Started Package Contents ... 6 Fixing ViewSonic LCD TV to the Wall ... 6 Front View of the Product ... 7 Rear View of the Product ... 8 Remote Control ... 9 Installation ... -
Page 3: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE).The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic N4251w... -
Page 4: Declaration Of Rohs Compliance
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic Proposed Maximum Actual Concentration Concentration 0.1%... -
Page 5: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic N4251w... -
Page 6: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 7: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 8: Getting Started
3. Through the matching screw holes in the bracket, there are 6 screws mounted on the backside of the LCD TV. Loosen all 6 screws, and keep for future use. Use only approved wall-mounting brackets advised by ViewSonic or your local distributor. Notes: •... -
Page 9: Front View Of The Product
1. Press VOL+ and MENU buttons at the same time to lock power button, and press VOL+ and MENU buttons again to unlock it. 2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press VOL- and VOL+ buttons again to unlock it. ViewSonic N4251w... -
Page 10: Rear View Of The Product
Connect this port to the RCA audio output connectors of your A/V device. Audio output Connect this port to your A/V device with audio in (RCA) connectors or to audio amplifier. PC Audio input Connect this port to PC line out jack. Headphone Jack Connect this port to your headphone. ViewSonic N4251w... -
Page 11: Remote Control
Remote Control ViewSonic N4251w... - Page 12 S DISPLAY Note: PIP means Picture In Picture. * This feature may not be supported under all models. ** For use on other device. ViewSonic Select input source PIP: activate PIP feature PIP Source: change PIP source PIP Size: change PIP size...
- Page 13 000. • Replace batteries if remote control keys are not functioning properly, this is a normal behavior that indicates batteries are low. ViewSonic Default Setting ViewSonic Samsung Sony ViewSonic ViewSonic WMA-100 Sony Device Buttons N4251w...
-
Page 14: Basic Setup
3. Press and hold the button for the desire device for approximately six seconds. The top LED will turn on, enter pre-programmed code. LED will blink to indicate pre-programmed code was captured correctly. Pre-Programmed Code Notes Record the three digit codes for your device here: ViewSonic Device Buttons N4251w... -
Page 15: Aux Key Setup
6 seconds. The top LED will turn on, enter the pre-programmed code with the first digit to indicate the type of device. LED will blink to indicate pre-programmed code was captured correctly. ViewSonic AUX Button For example, to control a Sony DVD player with a code of 027 under the AUX key, a 2 must be added in the beginning of the pre-programmed code making it 2027. -
Page 16: Code Tables
Pre-Programmed Code Tables ViewSonic LCD TV’s and Plasmas BRAND CODE N1700W N1300 N1500 N1750W N2010 N2010-E N2700W N2750W N3020W N3200W N3200W-E VPW4255 VPW5500 N2000 N3000W DVD Players-1 BRAND CODE Aiwa 001, 033, 051, 118 Aiba 002, 037 Apex 046, 059, 060, 062, 063,... - Page 17 Finlandia Finlux 006, 013 Fuba 005, 012, 014, 015, 019 Fujitsu Galaxis 031, 040, 041 General Instruments 048, 049 Goodmans Granada ViewSonic Grundig 001, 006, 007, 015, 017, Hanseatic Hirschmann Hisawa Hitachi 006, 017, 053 Hughes Huth 010, 016 Intertronic...
- Page 18 Unisat Unitor Universum Visiosat Vortec Wewa Womersat Wisi 006, 014, 015 Zehnder 008, 012, 028 Zenith 033, 037, 052 ViewSonic Cable BRAND CODE 006, 067, 069, 105 Archer 072, 073 Cabletime Contec Eastern France Telecom Gemini 080, 081 General Instrument 066, 107...
- Page 19 Harman Kardon 117, 151 Harwood Hitachi 008, 009, 053, 062, 063, 088, 128, 129, 136, 139, 141 ViewSonic JC Penney 079, 085, 088, 090, 117, 118, 119, 120 121, 122, 124, 125, 128, 129, 130, 131, Jensen 128, 129, 139...
- Page 20 Sony 000, 001, 002, 003, 004, 045, 075, 080, 082, 084, 098, 099, 116, 134 124, 136 Sylvania 061, 112, 124, 125, 126, 131, 132, 151 ViewSonic Symphonic 077, 095, 104, 126 Tandy Tashiko Tatung Teac 126, 139, 148 Technics...
- Page 21 Sansui 013, 081 Sanyo 066, 068 Scientific Atlanta 027 Sharp 010, 084 Sherwood 011, 071 Sony 000, 012, 046, 060, 067 Starcom Technics 014, 043, 047, 074 ViewSonic Thomson 015, 016 Toshiba Uher Yamaha 017, 018, 061, 072,077 Zenith N4251w...
-
Page 22: Installation
TV system. This air input jack both support TV and DTV systems. Besides, the TV system (NTSC) and DTV system (ATSC) can be found by the scanning of “AIR” in the Auto Scan function. (See page 32.) RF Cable or Adapter (not supplied) ViewSonic N4251w... - Page 23 3. Connecting to DVD / Set Top Box Connect Video/ Audio cables from compatible devices into the back panel of LCD TV. 1) With AV cable: 2) With S-Video cable: ViewSonic RCA A/V Cable VCR or DVD Player S-Video Cable...
-
Page 24: Connecting To External Stereo System To Listen To Lcd Tv Sound
4. Connecting to External Stereo System to Listen to LCD TV Sound Connect the audio output terminal of the LCD TV to audio in terminal of the stereo system (stereo system sold separately). ViewSonic YPbPr Cable (not supplied) Audio Cable... -
Page 25: Connecting To The Headphone
LCD TV. VGA 15 Pin Cable 7. PC Audio In Connect the Audio cable (green) from audio output of your computer to the audio input terminal (green) of the LCD TV. PC Audio Connection (not supplied) ViewSonic Headphone (not supplied) N4251w... -
Page 26: Connecting With The Power Cord
Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket ViewSonic Audio Cable (not supplied) A/V Device... -
Page 27: Basic Operation
Press DISPLAY, and the current state will be displayed on the screen. (It shows all or some of the information about Input, Channel, Resolution, Audio Type, Smart Sound Modes, and Smart Picture Modes, depending on what input source it is in.) ViewSonic N4251w... - Page 28 Repeatedly press SLEEP button to set the off timer. The function is used to automatically shut off the LCD TV after a preset period of time passed. There are several times for choice – OFF, 30min, 60min, 90min, or 120min. ViewSonic N4251w...
- Page 29 • Use ▲▼ to select the control you want to adjust. • When selecting the control with Press <ENTER>, press ENTER to enable the function. • Press ◄► to adjust or select the settings. • Press MENU to exit from the OSD menu. ViewSonic N4251w...
-
Page 30: Osd Functions
• Digital Audio Language: To select the audio language of the digital TV. Note: To adjust the above controls in the Audio settings, Smart Sound Mode must be set to “User”. ＊ • Smart Sound Mode: To select sound mode between User, Rock, POP, Live, Dance, Techno, Classic, and Soft. ViewSonic N4251w... -
Page 31: Setup Menu
Channel Lock: To lock channels. Use ◄► to select the channel you want to lock, and then press ENTER to lock or unlock it. Change Password: To change the password, press ENTER and enter the password again. Press ENTER, and the following screen appears. ViewSonic N4251w... - Page 32 The movie Ratings in the US are defined as following. General audience Parental guidance suggested PG-13 Parents strongly cautioned Use ENTER button to block or unblock the ratings, and use MENU to exit. ViewSonic Restricted NC-17 No one 17 and under limited Adult audience only N4251w...
- Page 33 Use ENTER button to block or unblock the ratings, and use MENU to exit. • Canadian French Rating: To adjust blocking level in French-speaking region of Canada. You can select between CF_E, CF_G, CF_8ANS, CF_13ANS, CF_16ANS, and CF_18ANS. ViewSonic TV-PG Parental guidance suggested TV-14...
-
Page 34: Tv Menu
Cancel or exit without pressing OK. Note: When input source is DTV, “Channel Name” will not appear on the TV Menu. ＊ ViewSonic CF_13ANS This emission can not be appropriate to the children of less than 13 years CF_16ANS This emission is not appropriate for... -
Page 35: Vga Menu
• Fine Tune: To adjust the delay time of data and clock to reduce noise in picture. • Manual Clock: To adjust the horizontal pixel clock of the video. • H. Position: To adjust the horizontal position of the picture. • V. Position: To adjust the vertical position of the picture. ViewSonic N4251w... -
Page 36: Advanced Operation - Remote Control Pip/Pop
PIP. Note that the screen indexed with the pink frame is the screen you select to set up. Use ◄► to move the index between the main screen and the sub-screen. ViewSonic POP Screen Available Sub-Screen Input Source YPbPr / HDMI1 / HDMI2 / HDMI3 / VGA... -
Page 37: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV. Note: Product Specifications are subject to change without notice. ViewSonic 42.02” TFT Active Matrix RGB 0.68 (H) x 0.68 (V) mm pixel... -
Page 38: Troubleshooting
• CATV is connected improperly or not connected; please check all the CATV connections. • The cable TV service is interrupted; please contact your cable operator. Picture is cut off/with sidebar screen • Is the image positioned correctly? • Are screen mode adjustments such as picture size set correctly? ViewSonic N4251w... -
Page 39: Customer Support
Customer Support For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/ Web Site Region United States www.viewsonic.com/support/ Canada www.viewsonic.com/support/ ViewSonic T=Telephone Email F=Fax T= (800) 688 6688 service.us@viewsonic.com... -
Page 40: Limited Warranty
How long the warranty is effective: ViewSonic LCD TV are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 41 ViewSonic ®...
