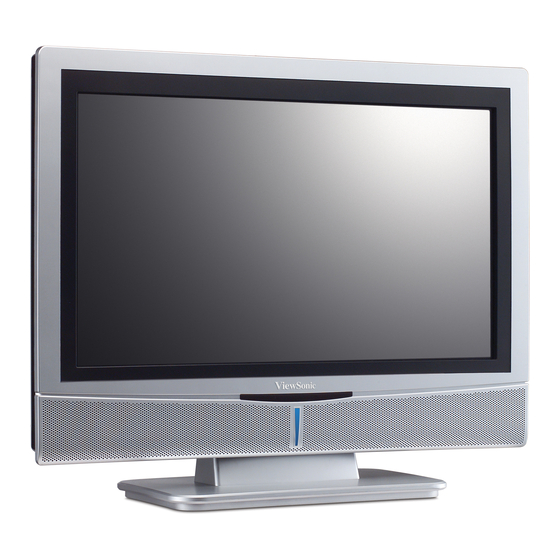

- Page 1 ViewSonic N2060w LCD TV ® - 使用手册 - 使用手冊 - User Guide Model No. : VS11287-1G...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions -------------------------------------------------- 1 Copyright Information ------------------------------------------------------------ 2 Antenna Installation Instructions---------------------------------------------- 3 Cleaning the LCD TV ------------------------------------------------------------ 3 CONNECT PERIPHERAL EQUIPMENT Front Panel Control Knobs ---------------------------------------------------- 4 Preparation ----------------------------------------------------------------------- 5 OPERATING INSTRUCTIONS Use of the remote control------------------------------------------------------- 6 remote control--------------------------------------------------------------------- 7 Preparation ----------------------------------------------------------------------- 8 To use the menus ---------------------------------------------------------------- 10... -
Page 3: Important Safety Instructions
ViewSonic moving the N2060w... -
Page 4: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 5: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 6: Connect Peripheral Equipment
Menu( Power（电源）⑦: Press to turn on or off the TV. Power Lock Press Source for 10 seconds can lock the function of Power button OSD Lock Press Menu for 10 seconds can lock the function of Menu button ViewSonic N2060w... -
Page 7: Preparation
5. AV signal input 6. Left audio track input (AV/S-Video) 7. Right audio track input (AV/S-Video) 8. S-Video signal input 9~11. YPbPr Component signal input 12. YPbPr left audio track input 13. YPbPr right audio track input 14. TV signal input ViewSonic N2060w... -
Page 8: Operating Instructions
To display the previously selected TV channel. Menu( 菜单 Press repeatedly to display OSD menu. Source(信号源) Select your input source: press repeatedly to select TV, Video AV, S-VIDEO, YPbPr or PC PC(电脑) Press this button to turn PC mode N2060w... -
Page 9: Remote Control
Dispose of batteries in accordance with local laws and regulations. Keep batteries away from children and pets. If the remote control will not be used for an extended period of time, remove the batteries. ViewSonic N2060w... -
Page 10: Preparation
Take out TV and base from carton, assembled by three pieces screws, which you could find from the accessory box. Shown in the figures below: ViewSonic Place the base on a solid surface Note: Lock the screw middle first, then the others, to avoid holes aiming incorrectly N2060w... - Page 11 You could turn on or off TV by the power key on the peak of TV, or by the power key on remote control. The indicator light in the front of TV is dark when the TV is ‘OFF’. The indicator light in the front of TV is blue when the TV is ‘ON’. ViewSonic N2060w...
-
Page 12: To Use The Menus
Setup, Picture Setup and Function Setup can be selected; shown in the figure below: When the input source is TV mode, the Sound Setup, Picture Setup, Function Setup and TV setup can be selected, shown in the figure below: ViewSonic N2060w... - Page 13 Equalizer in sound output mode according to your preference. 7. Equalizer: You can select and adjust the 100, 300, 1K, 3K and 8K respectively (the figures represent the sound frequency range). 8. Reset To Default: Reset the sound setting to the factory default value. ViewSonic N2060w...
- Page 14 Cold, normal and warm, or manually adjust manually red, green or blue in the personal setting (you can only adjust red, green and blue in the personal setting). 8. Reset to default: It is used to reset the picture settings to the factory default mode. ViewSonic N2060w...
- Page 15 Color Temp.: There are three options of color temperature provided for users - warm, normal and cold. Zoom: There are three options --4: 3, fullscreen and widescreen provided for zoom in/zoom out. Reset to default: It is used to reset the picture settings to the factory default mode. ViewSonic N2060w...
- Page 16 5 min. to 120 min. Count down shown on the screen when only one minute left before enter standby 2. Reminder timer: Could not be set by personal, to show the time after which the product will enter standby ViewSonic N2060w...
- Page 17 7. Skip can be set to ON or OFF. When it is set to ON, pressing the up key on the remote control or on the front panel can skip a channel. 8. Reset to default: Reset to the factory default value. ViewSonic N2060w...
-
Page 18: Headphone
At the end of its life specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old receiver according to local regulations. ViewSonic N2060w... -
Page 19: Appendix Specification
Component video*1 (YPbPr / YCbCr) Audio input*1 RCA*1 for AV and S-Video RCA*1 for YPbPr / YCbCr Up to 1360x768 Non-interlaced 640x480 @60Hz 800x600 @56Hz 800x600 @60Hz 1024x768@60Hz 1280x768@60Hz 1280x720@60Hz 1280x1024@60Hz 1360x768@60Hz 3W+3W 100-240VAC, 50/60Hz 5℃ to 35℃ 10% to 85%(no condensation) N2060w... - Page 20 10% to 85%(no condensation) 521.84mm(W) x 419.52mm(H) x 180.83mm(D) 20.55”(W) x 16.52”(H) x 7.12”(D) 595mm(W) x 512mm(H) x 226mm(D) 23.4”(W) x 20.2”(H) x 8.9”(D) 6.9Kg (15.2 Ib.) 9 Kg (19.9 Ib.) CB, CCC <90 W (Blue LED) <3 W N2060w...
-
Page 21: Troubleshooting
• CATV is connected improperly or not connected; please check all the CATV connections. • The cable TV service is interrupted; please contact your cable operator. Picture is cut off/with sidebar screen • Is the image positioned correctly? • Are screen mode adjustments such as picture size set correctly? ViewSonic N2060w... -
Page 22: Customer Support
Cusomer Support For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/ Web Site Region China www.viewsonic.com.cn ViewSonic Telephone Email 800 820 3870 service.cn@cn.viewsonic.com N2060w... -
Page 23: Limited Warranty
How long the warranty is effective: ViewSonic LCD TVs are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase.
