Adjust the Map Display Settings
When you install a CoastMaster Chart Card, menu options are added to your control head . You can show or hide contour lines,
highlight a depth range on the map, highlight shallow water, set safe depth levels and more .
Some of the menu options in this section may be displayed in other parts of the menu system so that you can access them quickly .
No matter where you make the change, the control head will update the setting across the system .
NOTE: With a few exceptions that are noted in this guide, changing a setting in the active preset will not affect that setting in the other
presets.
Open the Depth/Contours Menu
SOLIX
1 . From the Chart X-Press Menu, select Chart Options .
2 . Select Depths/Contours .

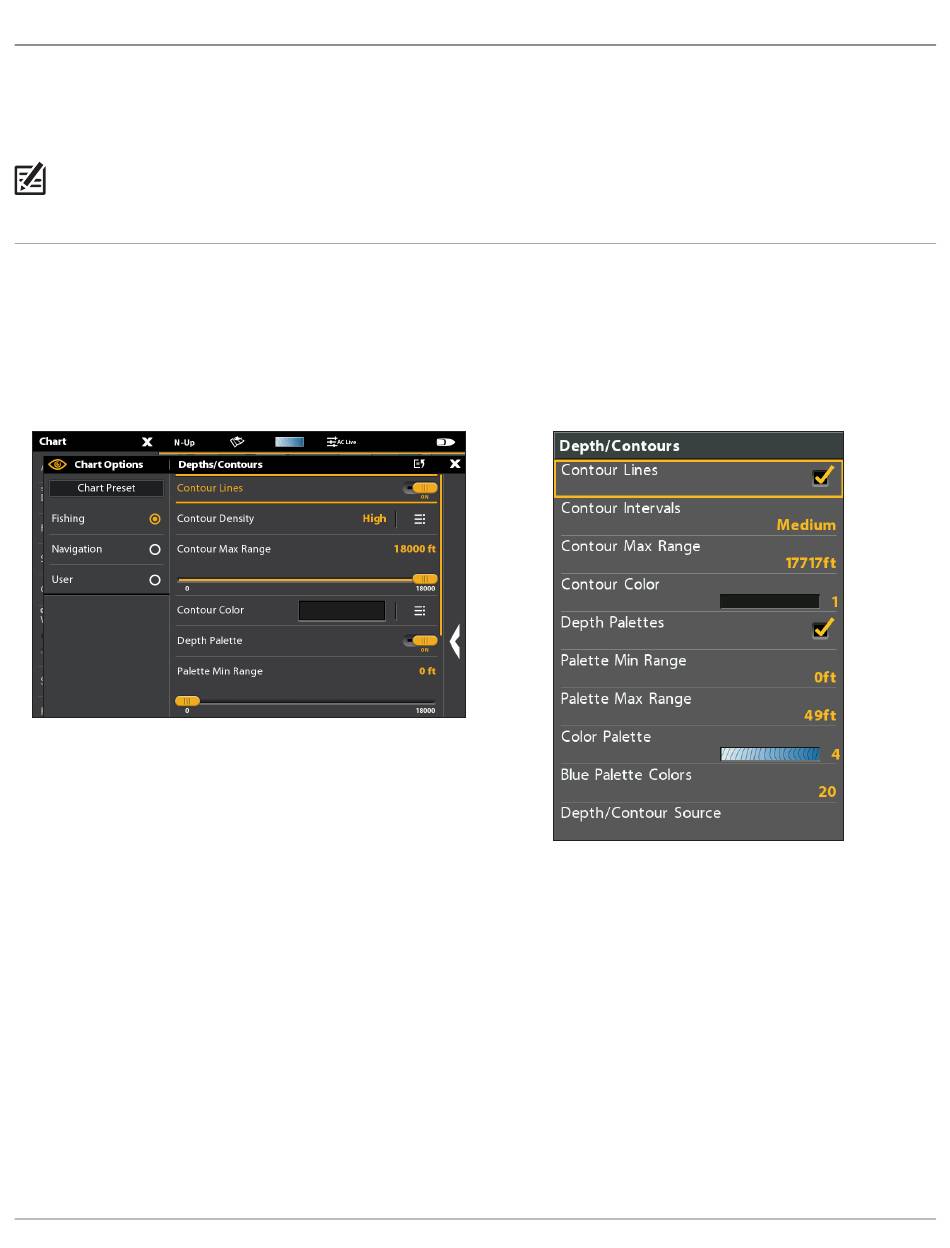

Depth/Contours Menu (SOLIX)
Adjust the Map Display Settings
HELIX
1 . Main Menu: Press the MENU key twice .
2 . Select the HB Chart tab .
3 . Select Depth/Contours .
Depth/Contours Menu (HELIX)
12
