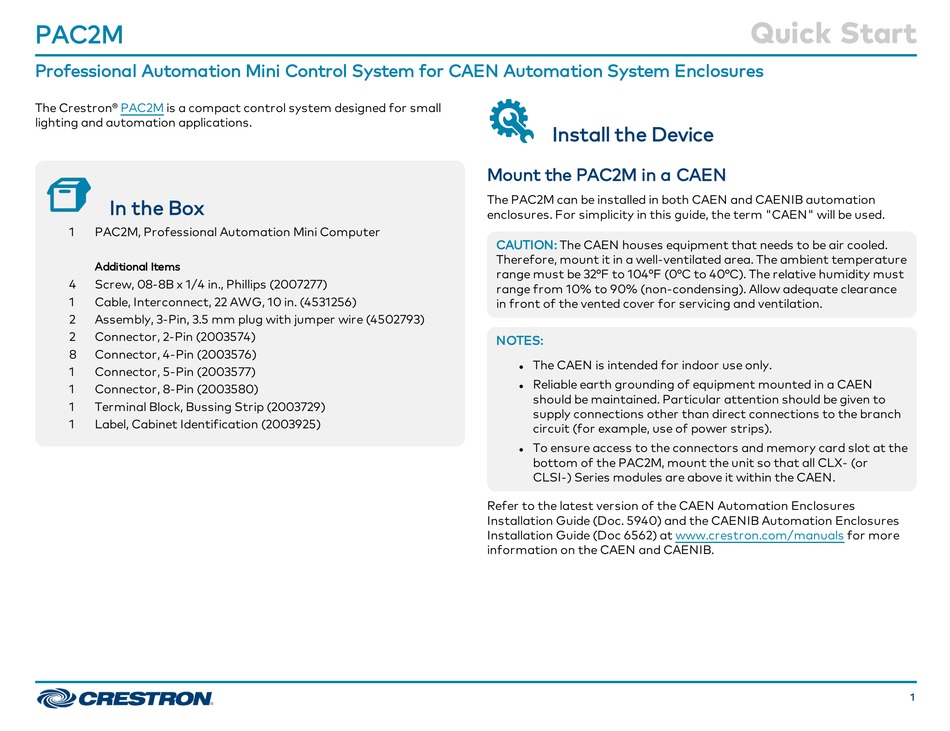

PAC2M
Professional Automation Mini Control System for CAEN Automation System Enclosures
The Crestron® PAC2M is a compact control system designed for small
lighting and automation applications.
In the Box
1 PAC2M, Professional Automation Mini Computer
Additional Items
4 Screw, 08-8B x 1/4 in., Phillips (2007277)
1 Cable, Interconnect, 22 AWG, 10 in. (4531256)
2 Assembly, 3-Pin, 3.5 mm plug with jumper wire (4502793)
2 Connector, 2-Pin (2003574)
8 Connector, 4-Pin (2003576)
1 Connector, 5-Pin (2003577)
1 Connector, 8-Pin (2003580)
1 Terminal Block, Bussing Strip (2003729)
1 Label, Cabinet Identification (2003925)
Install the Device
Mount the PAC2M in a CAEN
The PAC2M can be installed in both CAEN and CAENIB automation
enclosures. For simplicity in this guide, the term "CAEN" will be used.
CAUTION: The CAEN houses equipment that needs to be air cooled.
Therefore, mount it in a well-ventilated area. The ambient temperature
range must be 32°F to 104°F (0°C to 40°C). The relative humidity must
range from 10% to 90% (non-condensing). Allow adequate clearance
in front of the vented cover for servicing and ventilation.
NOTES:
The CAEN is intended for indoor use only.
l
Reliable earth grounding of equipment mounted in a CAEN
l
should be maintained. Particular attention should be given to
supply connections other than direct connections to the branch
circuit (for example, use of power strips).
To ensure access to the connectors and memory card slot at the
l
bottom of the PAC2M, mount the unit so that all CLX- (or
CLSI-) Series modules are above it within the CAEN.
Refer to the latest version of the CAEN Automation Enclosures
Installation Guide (Doc. 5940) and the CAENIB Automation Enclosures
Installation Guide (Doc 6562) at
information on the CAEN and CAENIB.
Quick Start
www.crestron.com/manuals for more
