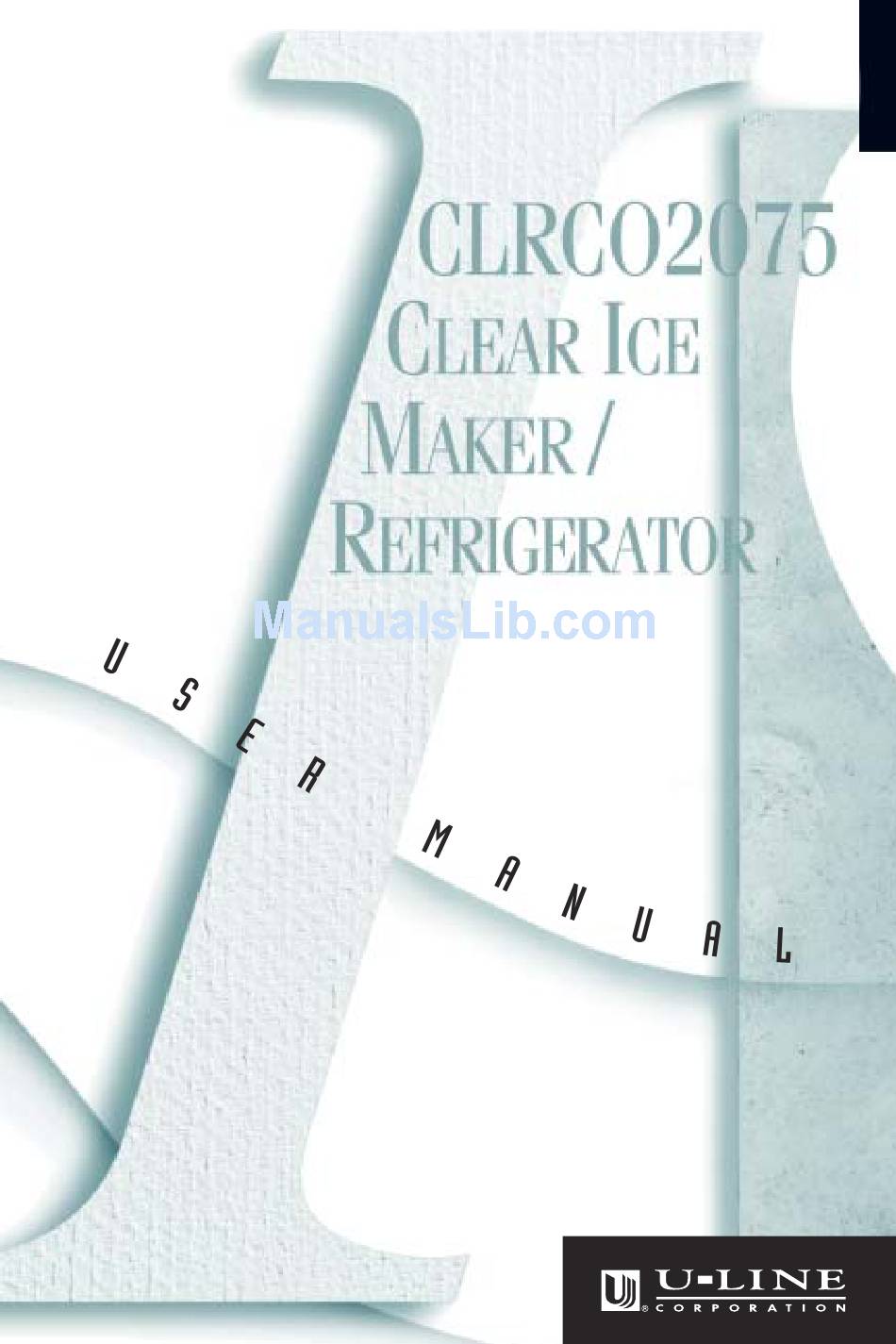

  • Page 1 É c h e l o n ™...
  • Page 2 (consisting of the compressor, the condenser, the evaporator, the hot gas bypass valve, the dryer and the connecting tubing) in each U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s...

  • Page 3: Introduction

    Congratulations on your purchase of U-Line CLRCO2075 Combination Ice Maker/Refrigerator. A pioneer in the field for nearly 40 years, U-Line is the world’s number one manufacturer of built-in, under- counter ice making and specialty refrigeration products. U-Line dedi- cates 100% of its research and development to these products. The result: U-Line technology leads the market with innovation, design, depth of product line and performance.

  • Page 4: Table Of Contents

    User’s Manual If you do not return your Product Registration Card, U-Line will use the date of sale to the U-Line distributor as the first date of warranty for your unit. Please also record the purchase date of your U-Line unit and your dealer’s name, address and telephone number.

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type. DEFINITIONS This is the safety alert symbol.
  • Page 6 • DO NOT use any type of heater to defrost. Using a heater to speed up defrosting can cause damage to the inner lining. • Use only genuine U-Line replacement parts. Imitation parts can damage the unit, and may void the warranty.

  • Page 7: Product Dimensions

    PRODUCT DIMENSIONS 23-15/16" (60.8) 34-1/8" (86.7) FULL RETRACT HEIGHT WATER CONNECTION DRAIN INSTALLATION PLEASE READ all instructions completely before attempting to install or operate the unit. All Ice Makers require a con- nection to the water supply and improper hook-up can result in substantial property damage! All water and drain connections MUST BE made by a licensed/qualified plumb- ing contractor.
  • Page 8 User’s Manual The CLRCO2075 can be installed using a gravity drain or can use a factory installed or equivalent drain pump. Follow these guidelines when installing drain lines to prevent water from flowing back into the ice maker storage bin and/or potentially flowing...
  • Page 9 3. Remove screws securing back panel. Check that the clamps and hose connections (Figure 3) are tight at the following areas: • Discharge tube (A) • Drain tube (B) • Vent tube (C) BACK VIEW 5. Place a suitable container beneath the pump’s discharge tube. (The bucket must be able to hold a minimum of one gallon.) Back panel serves as a guard.

  • Page 10: Connecting A Drain Pump

    If a gravity drain connection is not available, and you have not purchased the CLRCO2075 with factory installed pump, we strong- ly recommend the use of the U-Line P60 drain pump. The U-Line P60 drain pump is available through your Dealer, or direct from U-Line with complete installation instructions.

  • Page 11: Site Preparation

    SITE PREPARATION 1. Position the unit on a flat, level surface, capable of supporting the entire weight of the unit. Remember that the unit will be signifi- cantly heavier once it is fully loaded. It is extremely important that the unit is level. If it is not level, the water will not flow over the ice mold evenly.
  • Page 12 User’s Manual NOTE All U-Line units have a zero clearance for the door to open (Figure 4). See BUILT- IN INSTALLATION for addi- tional clearance require- ments. NOTE Stainless Steel require minimum 2-1/2" door handle clear- ance when installed against a wall.

  • Page 13: Built-In Installation

    BUILT-IN INSTALLATION Your U-Line product has been designed for either free-standing or built- in installation. When built-in, your U-Line product does not require addi- tional air space for top, sides or rear. However, the front grille must NOT be obstructed.

  • Page 14: Connecting The Water Supply

    • Connect sufficient tubing to the unit to allow the unit to be moved for cleaning and servicing. However, make certain that the tubing is not pinched or damaged during installation. • U-Line recommends the use of copper tubing for installation. 1. Locate compression fitting and ferrule packed in the unit.
  • Page 15 3. For recessed installations, allow extra water supply and drain line length to provide slack for easy removal from the recessed area (Figure 8). This will also safeguard against kinking the line. After completing the installation, turn on the water and recheck water and drain connection for leaks.

  • Page 16: Leveling The Unit

    User’s Manual LEVELING THE UNIT It is extremely important that the unit is level. If it is not level, the water will not flow over the ice mold evenly. This can cause a reduction in ice rate, uneven sized cubes or water spilling into the storage area which will cause the ice in the bin to melt prematurely.

  • Page 17: Reversing The Door

    REVERSING THE DOOR All U-Line units (except Stainless Steel models) may be left or right hand opening. The door opening is easily reversed by moving the hinge hard- ware to the opposite side (Figure 12). To reverse the door:...
  • Page 18 User’s Manual 1. Remove top hinge screw pin (7/64" Allen wrench) from cabinet (Figure 13). Remove door by tilting forward and lifting off bottom hinge pin. Figure 13 2. Remove plastic screw plugs (3 each, top and bottom) from new hinge location. Do not discard (Figure 14).
  • Page 19 5. Remove existing bottom hinge (3 screws) and remount on opposite side TOP . Remove hinge screw pin. 6. With bottom of door facing up, remove pivot plate (2 screws), flip over, and remount on opposite side of door (Figure 17). 7.

  • Page 20: Door Adjustment

    User’s Manual DOOR ADJUSTMENT Your door is aligned at the factory before shipment. Occasional re-adjustment may be necessary, especially if an Overlay Panel is installed. The following procedure will correct for up to 1/4" alignment. The door should never be flush with the top of the cabinet. Even when level, the top edge of the door will be 1/8"...
  • Page 21 4. If door edge opposite the hinges needs to move up, move plate toward outside of door. If door edge needs to move down, move plate toward inside of door (Figure 21). Repeat until top edge of door is parallel with top of cabinet and tighten screws securely. SLOTTED MOUNTING HOLES...

  • Page 22: Custom Door Panels

    User’s Manual CUSTOM DOOR PANELS Two types of custom door panels can be installed on your U-Line unit to harmonize with or accent the surrounding decor. FULL OVERLAY DOOR PANEL A full overlay door panel completely covers the door frame and handle to give a built-in appearance.
  • Page 23 Install the insert as follows: WARNING Insert edges SHARP! Use care when installing. 1. Remove top hinge screw pin (7/64" Allen wrench, Figure 24). Remove door by tilting forward and lifting off bottom hinge pin. 2. Pull door gasket out of groove (top edge of door only).

  • Page 24: Initial Start-Up

    3. Make sure the draining system is working properly and the drain hose is not pinched or kinked. Pour one gallon of cool, fresh water into the ice bin. The water should drain freely. If your CLRCO2075 is equipped with a drain pump, the pump should drain the ice bin.
  • Page 25 After the first slab of ice is produced, ice production will stop until the refrigerator side of the CLRCO2075 reaches the set point tempera- ture. After the refrigerator reaches temperature, ice production will begin again. It is possible that dirt or scale will dislodge in the water line.
  • Page 26 User’s Manual Refer to Table 1 to determine indicator light status. Status • Solid • Flashing • Solid • Flashing • Solid • Flashing Table 1. Indicator Light Status Indicates • Refrigerator Temperature displayed • Not Applicable • Service Menu – wait 10 seconds and it will exit automatically •...

  • Page 27: Clear Ice Maker Operation

    The refrigerator portion of the CLRCO2075 will take precedence over producing ice to protect any perishables.
  • Page 28 User’s Manual The ice cube thickness control is factory set for best overall perfor- mance. The factory setting is designed to maintain an ice bridge of approximately 1/16" to 1/8" under normal conditions resulting in a dimple of approximately 1/4" to 1/2" in depth (Figure 30). A fuller cube with less of a dimple results in a thicker ice bridge.
  • Page 29 2. Remove the screws securing the front access panel (Figure 31). 3. Locate the ice cube thickness adjustment dial on the control board (Figure 32). Turn the dial clockwise (+ number) to thicken or coun- terclockwise (- number) to thin the ice bridge. Ice thickness adjustment dial should be turned only one increment (number on dial) at a time.
  • Page 30 User’s Manual 4. Reinstall front access cover. 5. Reconnect power to ice maker. 6. Empty ice bucket. GLASS SHELF REMOVAL/INSTALLATION On units with right-hand hinges, open door fully, grasp shelf firmly, lift front edge slightly and pull straight out. On units with left-hand hinges, refer below.
  • Page 31 Adjustment/Installation 1. To move to a different position in the unit, insert shelf at an angle, approximately 15-20°, over the rib in the side of the unit where you want to place the shelf. The shelf must be started into the unit at an angle to clear the door.

  • Page 32: Periodic Cleaning And User Maintenance

    User’s Manual PERIODIC CLEANING AND USER MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets, the unit is used outdoors, or other special considerations. EXTERIOR CLEANING —...
  • Page 33 • DO NOT use solvent cleaning agents or abrasives on the interior. These cleansers may transmit taste to the ice cubes, or damage or discolor the interior. CONDENSER CLEANING — EVERY 3 MONTHS To maintain operational efficiency, clean the condenser every three months (depending on environment conditions, more or less frequent cleaning may be necessary).
  • Page 34 Wear rubber gloves and safety goggles and/or face shield when handling Ice Machine Cleaner. Use only U-Line Ice Machine Cleaner (part number 41978). It is a violation of Federal law to use this solution in a man- ner inconsistent with its labeling. Use of any other cleaner can ruin the finish of the evaporator and will void the war- ranty.
  • Page 35 6. Move the cycle selector switch to the CLN position. 7. When water begins to flow over the evaporator (approxi- mately minutes), one package of U-Line Ice Machine cleaner water reservoir. 8. Reinstall inside front cover. CAUTION FRONT COVER...
  • Page 36 User’s Manual 9. When the self-cleaning process stops (approximately 45 minutes), clean the storage bin. 10. Wipe down the interior and storage bin with a solution of non- abrasive mild soap or detergent and warm water. Rinse with clean water. 11.
  • Page 37 8. Make sure the drain system is working properly and the drain hose is not pinched or kinked. Pour one gallon of cool, fresh water into the ice bin. The water should drain freely. If your CLRCO2075 is equipped with a drain pump, the pump should drain the ice bin.

  • Page 38: Defrosting

    (Figure 40). 2. Replace bulb with genuine U-Line #31317 replacement. U-Line P/N 31317 3. Replace the light housing cover by inserting the tab FIRST, sliding the cover toward the tab and pushing up the other end.

  • Page 39: Storage, Vacation And Moving

    STORAGE, VACATION AND MOVING If the unit is to be stored, moved or not used for extended periods, it will be necessary to drain the system of water. Electrical Shock Hazard. Disconnect power before servicing. Before operating replace all panels. Failure to do so can result in death or electrical shock.
  • Page 40 User’s Manual FRONT COVER 7. Clean the ice maker and storage bin before next use. 8. Prop door open to allow for air circulation and prevent mold and mildew. It is possible that dirt or scale will dislodge in the water line. Always throw away all ice cubes made during the first 24 hours of operation when the unit is returned to service.

  • Page 41: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through NORMAL OPERATION first. If the problem persists, check the TROUBLE- SHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem could be something very simple which can be solved without a service call.
  • Page 42 User’s Manual Problem The unit is not cold enough. Temperature controller LED flashing. Noise during operation. Fresh food section on Combo units too cold. The unit does not operate. Unit runs but no ice is produced. Possible Cause Light staying on. Dirty condenser coils.
  • Page 43 Problem Unit runs but Dirty condenser coils. produces very little ice. High air temperature around unit. Scale and mineral buildup in unit. Inadequate airflow at the front of the unit. Cleaning Cycle recently performed. Ice is slow to Ice-making system release or does is dirty.

  • Page 44: If Service Is Required

    User’s Manual Problem Unit produces Low water level. shallow or incomplete cubes, or the ice fill Hot incoming water. pattern on the evaporator is incomplete. Incorrect incoming water pressure. Unit is not level. Water leaking Supply line leaking. from under the unit.
