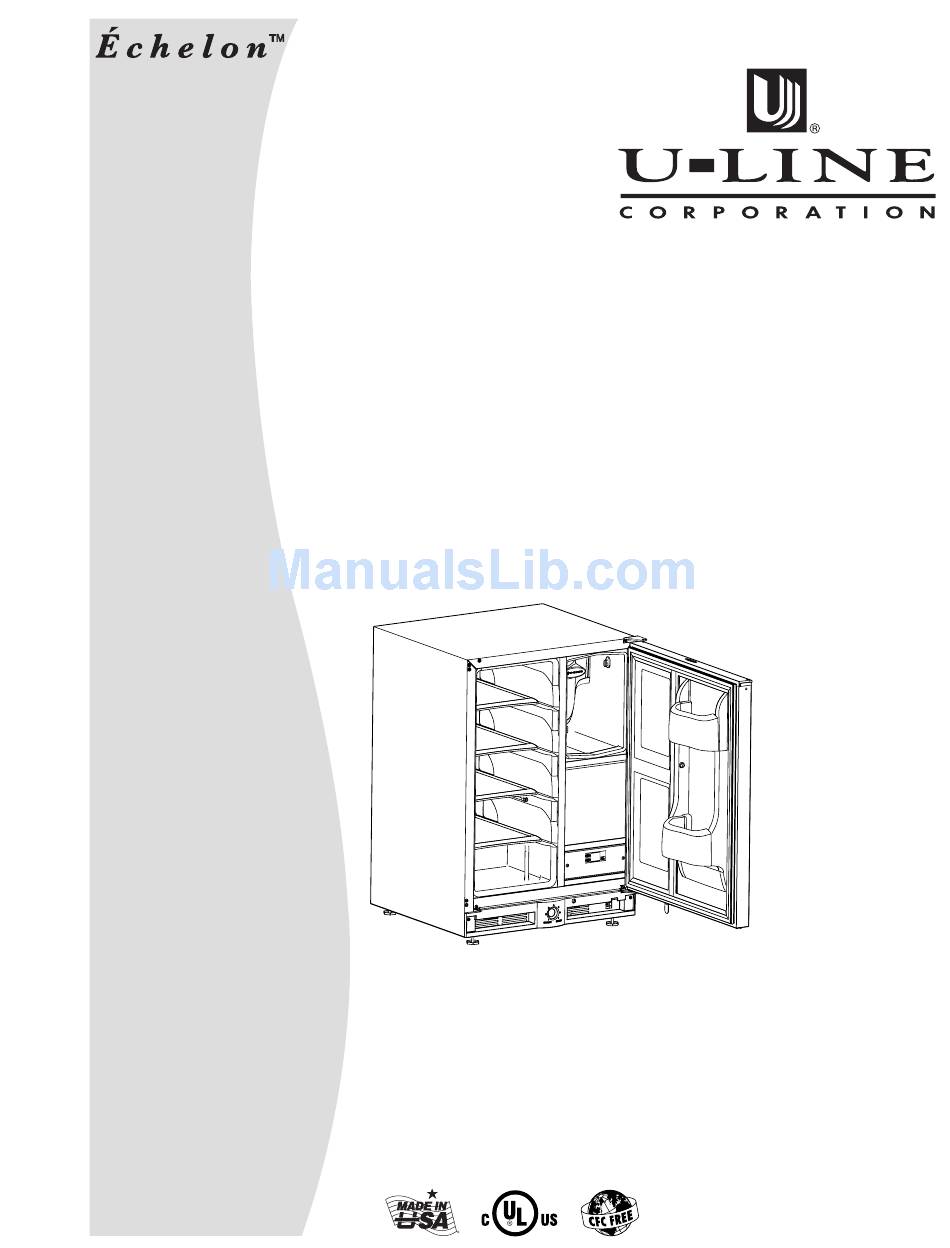

U-Line CLRCO2075 Service And Parts Manual Supplement

U-Line CLRCO2075 Service And Parts Manual Supplement

Echelon series
Hide thumbs Also See for CLRCO2075:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Service and Parts Manual
Supplement
For Model
CLRCO2075
U-Line Corporation
U-Line Corporation
8900 North 55th Street
PO Box 245040
Milwaukee, WI 53223
Milwaukee, WI 53224-9540
www.U-LineService.com
Phone (414) 354-0300 • FAX (414) 354-7905
Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696
R

Advertisement

Table of Contents
loading

Related Manuals for U-Line CLRCO2075

Summary of Contents for U-Line CLRCO2075

  • Page 1 Service and Parts Manual Supplement For Model CLRCO2075 U-Line Corporation U-Line Corporation 8900 North 55th Street PO Box 245040 Milwaukee, WI 53223 Milwaukee, WI 53224-9540 www.U-LineService.com Phone (414) 354-0300 • FAX (414) 354-7905 Service & Parts Tech Lines Phone (800) 779-2547 • FAX (414) 354-5696...

  • Page 2: Introduction

    Design Features Performance INTRODUCTION Three generations of pride and quality manufacturing and design improvements are built into all U-Line products. The result: U-Line leads the market with innovative technology and superior craftsmanship. This manual contains specific instructions for servicing the U-Line Échelon CLRCO2075.

  • Page 3: Serial Number Format

    The next four digits of the first segment, 5497, represents the shop order number. Order number 5497 is assigned for the Model CLRCO Black_00 units. The second two digit segment, 03, represents the month the unit was made. The third four digit segment, XXXX, is a factory internal control number used at U-Line Corporation. 035497-01-XXXX Month...
  • Page 4 INTRODUCTION Design Features Performance NOTES...

  • Page 5: Table Of Contents

    CLRCO2075 Control Board Diagnostics ........

  • Page 6: General Information

    U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s option, repair any product or replace any part of a product that breaches this warranty;...

  • Page 7: Warranty Claims Procedure

    Please be sure the claim is legible. If the claim form cannot be read, it will be returned, unpaid. U-Line will not cover part or labor claims for the replacement of a complete ice maker assembly. All ice maker parts are available as replacement parts and are stocked in our inventory. Remember: we do not pay customer education calls.

  • Page 8: Safety Precautions

    GENERAL INFORMATION Design Features Performance SAFETY PRECAUTIONS Do not attempt to service or repair the unit until you have read the entire procedure. Safety items through- out this manual are labeled with Warning or Caution. WARNING Warning means that failure to follow this safety statement may result in extensive product damage, serious personal injury, or death.

  • Page 9: Servicing

    SERVICING Design Features Performance ELECTRICAL SPECIFICATIONS OVERLOAD PROTECTOR STARTING RELAY RELAY COVER CLRCO036 Compressor Pins To measure start winding resistance, measure across the C-S pins. To measure run winding resistance, measure across the C-R pins. These pins should never measure any resistance to ground.

  • Page 10: Leveling And Installation Requirements

    SERVICING Design Features Performance LEVELING AND INSTALLATION REQUIREMENTS It is extremely important that the unit is level. If it is not level, the ice mold will not fill evenly. This can cause a reduction in ice rate, uneven sized cubes or water spilling into the storage area which will cause the ice in the bin to melt prematurely.

  • Page 11: Gravity Drain Installation

    SERVICING Design Features Performance GRAVITY DRAIN INSTALLATION Plumbing installation must observe all state and local codes. These guidelines must be followed when installing drain lines to prevent water from flowing back into the ice maker storage bin and potentially flowing onto the floor causing water damage: •...

  • Page 12: Connecting A Drain Pump

    If your CLRCO2075 is not equipped with a factory installed pump, a P60 drain pump is available through your Dealer, or direct from U-Line. If a pump other than the U-Line P60 drain pump is to be used, it must meet the following specifications: •...

  • Page 13: Self-Cleaning Cycle Instructions

    To maintain operational efficiency, clean unit every six months (depending on water conditions more or less frequent cleaning may be necessary). If the ice maker requires more frequent cleaning, consult a quali- fied plumber to test the water quality and recommend appropriate treatment. Use only U-Line Ice Machine Cleaner (part number 41978).

  • Page 14: Interior Storage Bin Cleaning

    6. Make sure the drain system is working properly and the drain hose is not pinched or kinked. Pour one gallon of cool, fresh water into the ice bin. The water should drain freely. If your CLRCO2075 is equipped with a drain pump, the pump should drain the ice bin.
  • Page 15 However, because there is no thermostat bulb directly on the evaporator as in the other U-Line refrigerators, the controller runs a thirty-minute refrigerator off-cycle, for every 12 hours of clock time. This means the refrigerator side of the unit will not cool during that period even if the refrigerator sensor is calling for cooling.

  • Page 16: Sequence Of Operation

    SERVICING Design Features Performance SEQUENCE OF OPERATION Mode 1: Ice Making and Refrigeration NO REFRIGERATION FLOW REFRIGERATION FLOW REF VALVE - HIGH PRESSURE REFRIGERATION VALVE (LOWER) LOW PRESSURE REFRIGERATOR EVAPORATOR TRANSITIONAL PRESSURE IN CAPILLARY TUBE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR...
  • Page 17 SERVICING Design Features Performance Mode 2: Ice Making and No Refrigeration NO REFRIGERATION FLOW REFRIGERATION FLOW REF VALVE - HIGH PRESSURE REFRIGERATION VALVE (LOWER) LOW PRESSURE REFRIGERATOR EVAPORATOR TRANSITIONAL PRESSURE IN CAPILLARY TUBE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN -...
  • Page 18 SERVICING Design Features Performance Mode 3: Refrigeration and No Ice Making NO REFRIGERATION FLOW REFRIGERATION FLOW REF VALVE - HIGH PRESSURE REFRIGERATION VALVE (LOWER) LOW PRESSURE REFRIGERATOR EVAPORATOR TRANSITIONAL PRESSURE IN CAPILLARY TUBE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN -...
  • Page 19 SERVICING Design Features Performance Mode 4: Ice Harvest (No Refrigeration Possible) REF VALVE - NO REFRIGERATION FLOW REFRIGERATION VALVE (LOWER) REFRIGERATION FLOW REFRIGERATOR FLOW DIRECTION EVAPORATOR UNIFORM PRESSURE DURING HOT-GAS HARVEST MODE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN - WATER...
  • Page 20 SERVICING Design Features Performance Mode 5: All Satisfied REF VALVE - REFRIGERATION VALVE (LOWER) NO REFRIGERATION FLOW REFRIGERATOR EVAPORATOR UNIFORM PRESSURE DURING SATISFIED MODE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN - WATER SUPPLY H2O PUMP - WATER CIRCULATION PUMP...
  • Page 21 SERVICING Design Features Performance Mode 6: Water Fill - No Refrigeration Required REF VALVE - REFRIGERATION VALVE (LOWER) NO REFRIGERATION FLOW REFRIGERATOR UNIFORM PRESSURE EVAPORATOR DURING FILL MODE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN - WATER SUPPLY H2O PUMP -...
  • Page 22 SERVICING Design Features Performance Mode 7: Cleaning (No Refrigerator Possible) REF VALVE - REFRIGERATION VALVE (LOWER) NO REFRIGERATION FLOW REFRIGERATOR UNIFORM PRESSURE EVAPORATOR DURING FILL MODE REF VALVE - REFRIGERATION BYPASS VALVE (UPPER) ICE MAKER EVAPORATOR ACCUMULATOR H2O IN - ON/OFF WATER SUPPLY...
  • Page 23 SERVICING Design Features Performance Mode 8: Water Fill with Refrigeration Required (Note: Normal Start-up with a warm refrigerator) NO REFRIGERATION FLOW REFRIGERATION FLOW REF VALVE - HIGH PRESSURE REFRIGERATION VALVE (LOWER) LOW PRESSURE REFRIGERATOR EVAPORATOR TRANSITIONAL PRESSURE IN CAPILLARY TUBE REF VALVE - REFRIGERATION BYPASS...

  • Page 24: Thermistors

    Thermistors generally fail due to moisture or physical damage. U-Line “high side” thermistors are encased in a specially-designed, moisture-resistant stainless cap. The thermistor is mounted to the “high side” or “dry”...

  • Page 25: Controller

    CONTROLLER IMPORTANT The display and control board on the CLRCO2075 model was designed to be a diagnostic tool. The first thing that should be looked at is the display. Check for flashing lights to indicate that there may be a drain problem or a thermistor problem. If the unit is working properly when you arrive (or when the customer calls to set up service) check the display.
  • Page 26 SERVICING Design Features Performance IMPORTANT 1. Be sure the cycle selector switch (located in the lower right side of the grille) is set to “ON”. Display can be on when selector switch is “OFF”. 2. The controller will be set at the default setting of 38°F when it is first powered up. This setting will display on the LED and should satisfy most customer applications.

  • Page 27: Clrco2075 Control Board Diagnostics

    7. COMP 4. H2O PUMP – (water circulating) CLRCO2075 CONTROL BOARD DIAGNOSTICS This section can be used to aid in pinpointing a problem when diagnosing a unit. Every component in the CLRCO unit can be energized separately and its operation verified by following the procedure below. In addition to verifying individual component operation the function of the circuit board can be checked as well.
  • Page 28 SERVICING Design Features Performance Compressor COMP To energize the compressor touch the previously disconnected pink lead back to the board. You should hear the compressor start up and the green COMP light will illuminate. If it does not start check voltage at the compressor and at the output from the board. If the green light does not illu- minate first remove both pink wires from the board and directly jump the two spade connectors together.

  • Page 29: Refrigeration System Diagnosis Guide

    SERVICING Design Features Performance...

  • Page 30: Ice Thickness Adjustment

    Do not touch electrical wires. Disconnect power to the ice maker before making any ice thickness adjustments. Your U-Line Clear Ice Maker uses advanced technology to make ice that is crystal clear. This technology cascades a flow of water over a chilled ice mold that is mounted vertically so no water sits in it.
  • Page 31 SERVICING Design Features Performance 1. Disconnect power to the unit. ACCESS PANEL SCREWS WARM ER TEMP COLD ER CLRCO030 Access Cover 2. Remove the screws securing the front access panel. ICE CUBE THICKNESS ADJUSTMENT DIAL DIAL IS FACTORY SET TO “0” CLRCO031 Ice Thickness Adjustment Dial...
  • Page 32 SERVICING Design Features Performance 3. Locate the ice cube thickness adjustment dial on the control board. Turn the dial clockwise (+ number) to thicken or counterclockwise (- number) to thin the ice bridge. IMPORTANT Ice thickness adjustment dial should be turned only one increment (number on dial) at a time.

  • Page 33: Troubleshooting

    SERVICING Design Features Performance WARNING TROUBLESHOOTING DO NOT service the unit until the main electrical power has been disconnected. Not refrigerating (compressor and fan are operating) CAUSE REMEDY a. Little or no frost pattern on evaporator a. Check for sealed system leak or restriction Not refrigerating (compressor not operating, fan operating) CAUSE REMEDY...
  • Page 34 SERVICING Design Features Performance No ice production CAUSE REMEDY a. No water supplied to unit a. Check that water is connected and turned on b. Stand pipe not inserted in water trough b. Insert stand pipe securely into water trough Low ice production CAUSE REMEDY...

  • Page 35: Clrco2075 Wiring Diagram

    SERVICING Design Features Performance CLR2075 Wiring Diagram Thermistors: Ice/Ref 1 and 2 Cond to 3 and 4 Ref to 5 and 6 -3 -4 -5 WHITE GREEN BLACK THIS SIDE BLACK CLRCO028 WHITE TO DISPLAY GREEN...

  • Page 36: Parts Listing

    It will be noted on your packing list if we require you to return a part or if you may field scrap it. If U-Line requires a defective part to be returned, a prepaid shipping label will be included with your new replacement part.
  • Page 37 CLRCO2075 MODEL Design Features Performance NOTES...

  • Page 38: Clrco2075 Model Parts

    CLRCO2075 MODEL PARTS Design Features Performance MODEL CLRCO2075 (1 OF 3) 11 12 CLRCO032...
  • Page 39 CLRCO2075 MODEL PARTS Design Features Performance MODEL CLRCO2075 (1 OF 3) Item Description White Black Stainless Steel Door Assembly 80-17019-02 80-17019-01 See Parts Not Shown Door Handle Top 11926-4-KIT 11926-4-BLK See Parts Not Shown Door Handle Bottom 11927-4-KIT 11927-4-BLK 11927-4-BLK...
  • Page 40 CLRCO2075 MODEL PARTS Design Features Performance MODEL CLRCO2075 (2 OF 3) CLRCO033...
  • Page 41 CLRCO2075 MODEL PARTS Design Features Performance MODEL CLRCO2075 (2 OF 3) Item Description White Black Stainless Steel Cover - Front 12070-01 12070-01 12070-01 Evaporator Assembly 2276-CLRCO-S 2276-CLRCO-S 2276-CLRCO-S Water Dispersion Receptacle 11812 11812 11812 Tube Retainer 26009 26009 26009 Pre-formed Tube - White...
  • Page 42 CLRCO2075 MODEL PARTS Design Features Performance ■ ■ MODEL CLRCO2075 (3 OF 3) CLRCO034...
  • Page 43 CLRCO2075 MODEL PARTS Design Features Performance ■ ■ MODEL CLRCO2075 (3 OF 3) Item Description White Black Stainless Steel Heat Exchanger Assembly 72006-S 72006-S 72006-S Back Panel 11969-02 11969-02 11969-02 Valve Manifold Assembly 80-37005-00-S 80-37005-00-S 80-37005-00-S Power Cord 2894 2894...
  • Page 44 Design Features Performance NOTES...
  • Page 45 Design Features Performance NOTES...
  • Page 46 Design Features Performance NOTES...
  • Page 47 FAX PARTS ORDER FORM FAX # 414-354-7905 Account# ____________________________________ Ship to:______________________________________ Bill to: ______________________________________ ____________________________________________ ____________________________________________ ____________________________________________ ____________________________________________ Attention: Date:________________________________________ P.O. ________________________________________ Phone#______________________________________ Fax# ________________________________________ PART# COLOR DESCRIPTION MODEL SERIAL UNIT IN NUMBER WARRANTY? SPECIAL INSTRUCTIONS: All part shipments will be sent ground delivery. We have air shipment available at an additional cost to you.
  • Page 48 P.O. Box 245040 Milwaukee, WI 53224-9540 Phone 414.354.0300 FAX 414.354.7905 Printed in U.S.A. – August 2003 ULIN 9332 P/N 30018...
