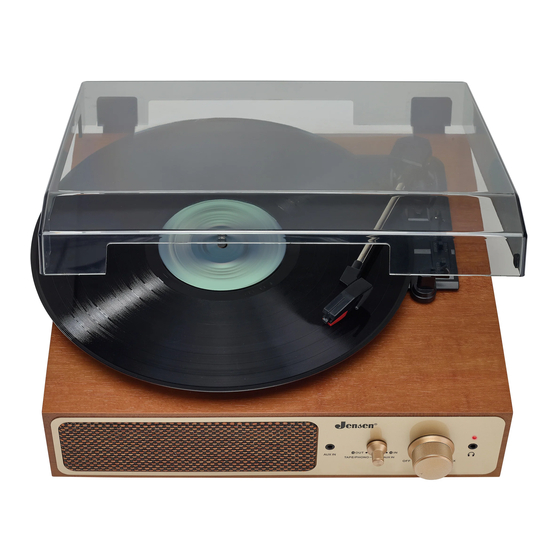

- Page 1 STEREO BLUETOOTH 3-SPEED TURNTABLE WITH CASSETTE PLAYER AND BUILT-IN SPEAKERS MODEL: JTA-245 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
- Page 2 WARNING TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The Rating plate is located at the back enclosure of the apparatus.
- Page 3 Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
-
Page 4: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS FCC ID: LMZ-50011 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Dear Jensen Customer
The serial number of this product is found on its bottom. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: JTA-245 Serial Number:... -
Page 6: Location Of Controls
LOCATION OF CONTROLS TURNTABLE PLATTER TURNTABLE SHAFT 45 RPM ADAPTOR TONE ARM LIFT LEVER TONE ARM LATCH AUTO STOP ON/OFF SELECTOR 33/45/78 RPM SELECTOR TONE ARM STYLUS CARTRIDGE FRONT SPEAKERS AUX IN JACK FUNCTION SELECTOR OUT, AUX IN, TAPE/PHONO, POWER / VOLUME CONTROL HEADPHONE JACK POWER/FUNCTION INDICATOR BACK... -
Page 7: Phono Operation
POWER SOURCE (AC ADAPTOR ONLY) The JTA-245 is powered by an external AC-DC adaptor with an output of DC 5V POWER CONNECTION Connect the cord of the power adaptor to the DC IN JACK (#18) at the back of the unit. -
Page 8: Bluetooth Operation
Place the Bluetooth device within 3 feet (1m) of the JTA-245 in order for them to pair correctly. • The JTA-245 stays in the pairing mode for 30 seconds. If pairing is not properly competed within 30 seconds, follow the above steps again from the beginning after turning all devices OFF. -
Page 9: Cassette Operation
Rotate the POWER / VOLUME CONTROL (#13) to turn on the unit The POWER/FUNCTION INDICATOR (#15) will turn on purple. The volume level can now be controlled using the POWER / VOLUME CONTROL (#13) on the JTA-245. Operate all other functions on the auxiliary device as usual. Notes: ... -
Page 10: Line Out Connection
Hi-Fi / AMPLIFIER system with RCA cables (not included). Note: The Volume control on the JTA-245 will not adjust the volume when using the RCA LINE OUT JACKS (#16). HEADPHONE OPERATION Plug your headphones (not included) into the HEADPHONE JACK (#14) on the front of the unit for private listening. -
Page 11: Specifications
SPECIFICATIONS AC/DC Adaptor Input: AC 100-240V ~, 50/60Hz, 0.5A Output: DC 5V Speaker Impedance 4 ohm, 3W Design and specification are subject to change without notice. TROUBLESHOOTING GUIDE If you experience difficulties in the use of this clock radio, please check the following or call 1-800-777-5331 for Customer Service and support. - Page 12 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A.
