- Page 1 Arriva 752 gas fireplace Operation guide...
- Page 2 Important Appliance must be installed with a Rinnai approved flue system. This appliance must be installed in accordance with: - Manufacturer’s installation instructions - AS/NZS 5601 Gas Installations - AS/NZS 5263 Gas appliance standards For use with Natural Gas or Universal LPG as indicated on the appliance.
-
Page 3: Table Of Contents
Purchase details ...........17 Register your Ariiva 752 online ......17 Limited Warranty ..........18 Servicing Gas fires, like cars, require regular maintenance and servicing. For reliable operation Rinnai gas fires should be serviced every two years, including inspection of the flue system. -
Page 4: Safety
Do not place anything on top of post articles into the louvres of the appliance is operating. Most the fire. heater. contain butane gas which can be a fire hazard if used near the appliance. 4 | Arriva 752 operation guide: 12219-C 03-20... -
Page 5: General Information
Before operation please read these instructions to get an overview of how to operate, maintain and service your Rinnai gas fire. Electrical connection Servicing The Arriva 752 is fitted with a 1.5 m Rinnai has a maintenance, service power cord and a 3-pin plug. The and spare parts network with... -
Page 6: About Your Arriva 752

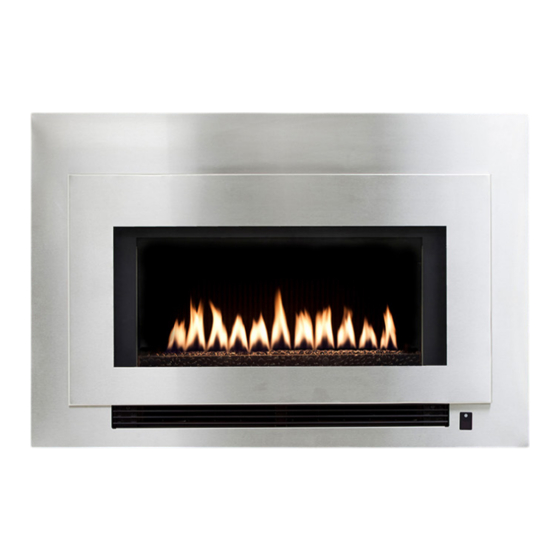

About your Arriva 752 Congratulations on the purchase of your Rinnai Arriva gas fireplace. We hope you love this product as much as we do, and on the off chance that something does go wrong, or if you need help, we’re only a phone call away. -
Page 7: Care Of Your Arriva 752
To restore normal operation after a filter blockage: 1. Press the On/Off button to turn off. 2. Clean the filters. 3. Press the On/Off button to turn on. 4. Use the remote control to resume normal operation. Arriva 752 operation guide: 12219-C 03-20 | 7... -
Page 8: Clearances
TV is not to be installed 350 mm 600 mm 400 mm 700 mm above a fireplace. For further information please contact Rinnai or refer to the installation guide, which includes a TV installation diagram. 8 | Arriva 752 operation guide: 12219-C 03-20... -
Page 9: Operation Without Remote
Do not unplug the main power supply to the fire as the convection fan is required to operate for several minutes after the unit is turned off to assist in cooling the fire down. Arriva 752 operation guide: 12219-C 03-20 | 9... -
Page 10: Operation Using Your Remote
After batteries H (high), continuous temperature by increments of are replaced the clock and combustion on high 1 °C, the temperature will be timers may need to be displayed on the remote. reprogrammed. 10 | Arriva 752 operation guide: 12219-C 03-20... - Page 11 40 °C, while the flame been received the remote programs will be cancelled. function is on, the fire will display will revert to time switch off—this is a safety mode. feature. Arriva 752 operation guide: 12219-C 03-20 | 11...
-
Page 12: Troubleshooting
Timer operates for a short time then cuts out. Room temperature may be higher than the set temperature. Increase set temperature if desired. Turn off the Extra Low button if on. 12 | Arriva 752 operation guide: 12219-C 03-20... - Page 13 Turn on the gas supply at the meter or cylinder Smell of gas Gas escape Isolate gas supply and contact a Rinnai Service Centre No display on remote Flat batteries Replace batteries in remote Arriva 752 operation guide: 12219-C 03-20 | 13...
-
Page 14: Error Codes
Service call Overheat temperature sensor faulty Service call Spark sensor faulty Service call Combustion fan motor faulty Service call Solenoids faulty Service call Flame detection circuit fault Service call Communication error Service call 14 | Arriva 752 operation guide: 12219-C 03-20... -
Page 15: Abnormal Flame Pattern
Abnormal flame pattern Each Rinnai flame fire has a distinct flame pattern. This should look the same every time you start your fire, after an initial warm up period of approximately 20 minutes. Abnormal flame performance and/or pattern can indicate a problem with your fire, such as blocked gas injectors, or shifting of burn media. -
Page 16: Installation Checklist And Installer Details
Checklist F Appliance positioned in a suitable location (clearances, mantels, surrounds etc.). F Rinnai flue system installed and tested to ensure effective draw. F Gas pressure checked and set according to the data plate. F Burn media installed as per instructions. -
Page 17: Purchase Details
Warranty claim To make a warranty claim, contact Rinnai on 0800 RINNAI (0800 746 624) or email info@rinnai.co.nz. Arriva 752 operation guide: 12219-C 03-20 | 17... -
Page 18: Limited Warranty
Rinnai brings you peace of mind with a: 5-year firebox warranty This warranty is applicable to all Rinnai gas fires manufactured from 01 May 2019. All terms of the warranty, subject to the conditions below, are effective from the date of first installation. The attending service person reserves the right to verify this by requesting a copy of the gas certificate of compliance prior to commencement of any warranty work. - Page 19 8. Rinnai reserves the right to have installed product returned to the factory for inspection. 9. Where the gas fire is installed outside the metropolitan area or further than 40 km from a Rinnai authorised service centre, travel costs shall be the owner’s responsibility.
- Page 20 Rinnai.co.nz 0800 746 624 http://www.youtube.com/rinnainz http://www.facebook.com/rinnainz Serial number Arriva 752 operation guide:12219-C...
