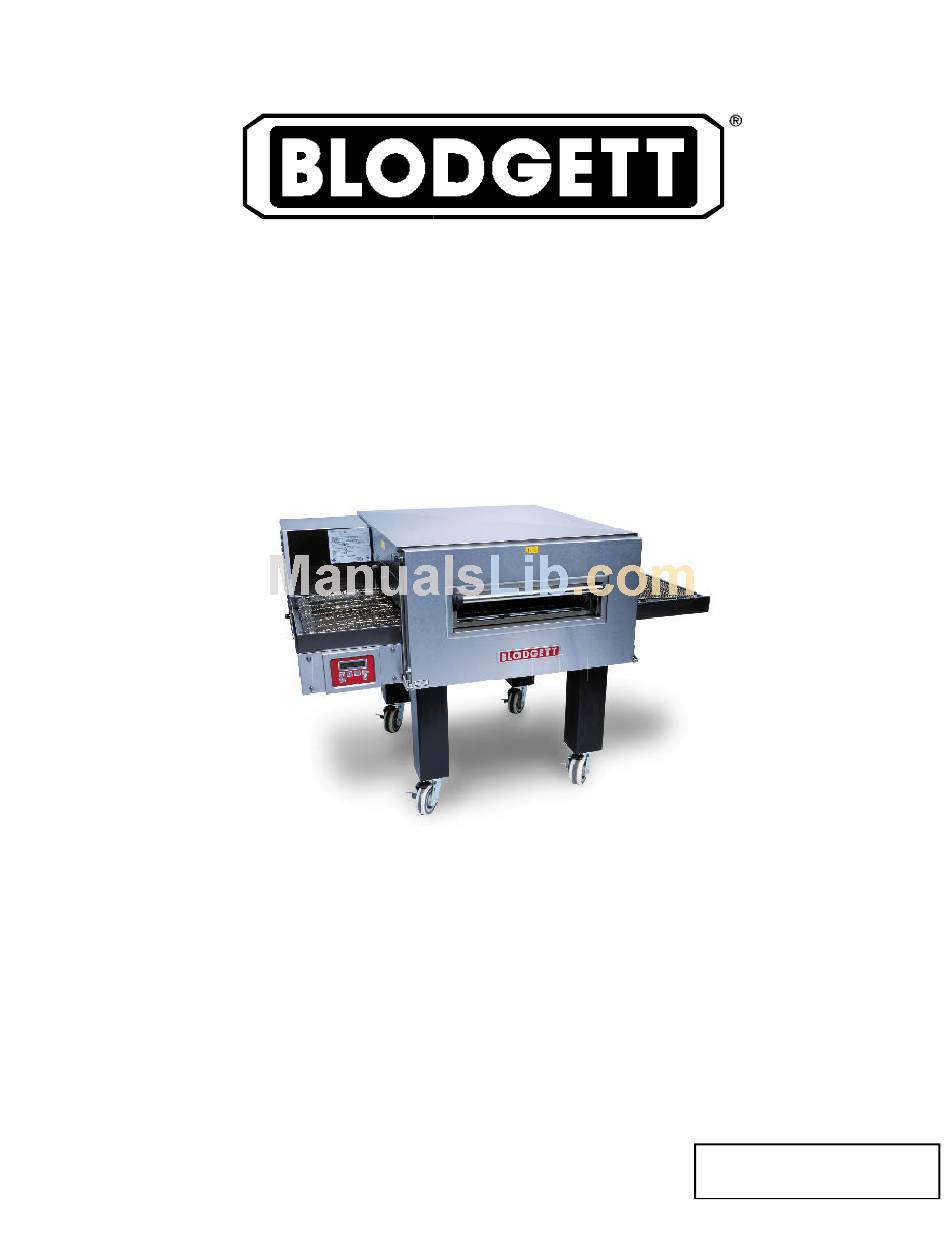

SG2136 E & G
CONVEYOR OVEN
REPLACEMENT PARTS LIST
EFFECTIVE AUGUST 29, 2001
Superseding All Previous Parts Lists.
www.blodgett.com
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
Advertisement
Table of Contents
Related Manuals for Blodgett SG2136 E & G
Summary of Contents for Blodgett SG2136 E & G
-
Page 1: Replacement Parts List
CONVEYOR OVEN REPLACEMENT PARTS LIST EFFECTIVE AUGUST 29, 2001 Superseding All Previous Parts Lists. www.blodgett.com The Company reserves the right to make substitution in the event that items specified are not available. ERRORS: Descriptive and/or typographic errors are subject to correction. - Page 2 SERIAL NUMBER LOCATION / KEY: IMPORTANT: When ordering parts, please provide the model, gas type and serial number of the oven. The identification plate is located on the front of the control box above the conveyor belt. SERIAL NUMBER IDENTIFICATION CODE:...
-
Page 3: Table Of Contents
AUGUST 29, 2001 CONTROL BOX, ELECTRIC INTERIOR VIEW ... CONTROL BOX, GAS INTERIOR VIEW ... INTERFACE BOARD, EXPLODED ... CONTROL BOX EXTERIOR & INTERIOR TOP VIEW ... GAS BURNER COMPONENTS, DOMESTIC ... GAS BURNER COMPONENTS, CE & EXPORT ... GAS BURNER COMPONENTS, FRANCE & BELGIUM ... CONVECTION COMPONENTS ... -
Page 4: Control Box, Electric Interior View
R0166 Terminal Ground Block, Qty 1 per oven M4542 Terminal Power Block, Qty 2 per oven R1580 End Stop, Terminal Block, Qty 1 per oven M9477 Din Rail, for Terminal Block mounting M10482 Contactor, 60 Amp, 24V, 3 PH M8991... -
Page 5: Control Box, Gas Interior View
Probe, RTD 20" 100 Ohms R0166 Terminal Ground Block, Qty 1 per oven R0164 Terminal Power Block, Qty 2 per oven R1580 End Stop, Terminal Block, Qty 1 per oven M9477 Din Rail, for Terminal Block mounting M8991 Probe Well Assy, EGO M10486... -
Page 6: Interface Board, Exploded
M9720 Relay, 2 Pole M10139 Heat Relay, 1 Pole Ref. Part Description M10139 Heat Relay, 1 Pole M9720 Relay, 2 Pole Qty 2 M10165 Pressure Switch M9705 Tubing Polyurethane for pressure switch M10278 Interface Board, Complete as shown above INTERFACE BOARD COMPONENTS M10165 Pressure Switch... -
Page 7: Control Box Exterior & Interior Top View
CONTROL BOX EXTERIOR & INTERIOR TOP VIEW NOTE: M10471, COMPLETE TOP ASSY M9611 Converter M10280 PLC Control M10277 Access Cover See Stack Assy part numbers on page 7-9 Ref. Part Description M9477 Din Rail M10488 Mounting Bracket R1580 End Stop M0593 Terminal Block M9659... -
Page 8: Gas Burner Components, Domestic
M0282 Gas Valve, Manual M8999 Gas Valve, Main LP & Nat 21225 Elbow 1/4 x 1/8 M0317 Elbow 1/2 NPT Street Qty 3 per oven R5347 Nipple 1/2 NPT x 3.00 Ell, Black 90º M9887 Blower Motor Assy M10211 Burner Assy... -
Page 9: Gas Burner Components, Ce & Export
Gas Valve, Manual M8999 Gas Valve, Main LP & Nat 21225 Elbow 1/4 T x 1/8 NPT M0317 Elbow 1/2 NPT Street Qty 3 per oven R5347 Nipple 1/2 NPT x 3.00 Ell, Black 90º M9887 Blower Motor Assy GAS BURNER COMPONENTS FOR EXPORT &... -
Page 10: Gas Burner Components, France & Belgium
M2841 Fitting, Pressure Tap M10507 Nipple & Orifice Assy M8999 Gas Valve, Main LP & Nat M0317 Elbow 1/2 NPT Street Qty 3 per oven R5347 Nipple Ell, 90º M9887 Blower Motor Assy GAS BURNER COMPONENTS FRANCE & BELGIUM OVENS ONLY... -
Page 11: Convection Components
Motor & Blower Assy, CCW CE, Gen Exp M2873 Motor & Blower Assy, CW CE, Gen Exp M10585 Blower Insulation Kit M10304 Air Slide, Qty 2 per oven M9829 Probe, RTD 2" 100 Ohms M10631 Air Plate Assy, LH L-R Belt Direction M10623... -
Page 12: Conveyor Components - Single Belt
CONVEYOR COMPONENTS-SINGLE BELT UNITS M10509 Retractable Locking Pin M10513 Pulley, Sprocket M0108 Shaft, Conveyor, Sprocket 3/4 Bore Qty 5 M0108 Sprocket 3/4 Bore Qty 5 Belt Tensioner Assy, contains spring, sleeve and shaft Ref. Part Description M10513 Pulley, Sprocket M10572 Belt, for pulley 16"... -
Page 13: Control Components
AUGUST 29, 2001 FRONT VIEW OF "MANUAL" CONTROL OPTION Manual Control Assy, Remote Menu Control Assy, Remote Ref. Part Description M10137 Control Assy, Manual M10138 Control Assy, Menu M9712 Docking Station, Remote Control M9828 Remote Mounting Bracket Assy NOTE: Decals are not available separately. You must purchase the entire control assy. -
Page 14: Control Components - Exploded Rear/Front Views
AUGUST 29, 2001 M10137 Control Assy, Manual M10138 Control Assy, Menu Ref. Part Description M10137 Control Assy, Manual M10138 Control Assy, Menu M0635 Thermal Switch, High Limit M3299 Bracket, for Switch M10418 Drip Shield M10415 Housing, Computer Display Integral Option CONTROL REAR &... -
Page 15: Door Components
M10257 Latch M10251 Latch Keeper M2398 Hinge Pin, LH M2399 Hinge Pin, RH (Kit M2801 includes 1 each) M7000 False Front, Solid Ref. Part Description M10257 Latch, Access Panel M10251 Latch Keeper, Access Panel M2398 Hinge Pin, LH M2399 Hinge Pin, RH M2801 Hinge Pin Kit, RH &... -
Page 16: Exterior View & Accessories
M10254 Access Panel Assy, Control M10419 Tunnel (under conveyor) NOTE: See page 12 for Controller breakdown Ref. Part Description M6220 Body Back M6255 Body Top M10254 Access Panel Assy, Control Box M10419 Tunnel Assy 21391 Legs, Set of 4, 23 1/4" Single Ovens 21390 Legs, Set of 4, 17 1/4"... -
Page 17: Stacking Kits
NOTE: STACKING KITS INCLUDE ALL COMPONENTS M10586 Stacking Kit, Remote Ovens Stacking Rails M10587 Stacking Kit, Integral Ovens NOTE: See page 16 for legs & casters and chimney kit breakdowns. Ref. Part Description M7887 Alignment Pins, Set of 4 M10586 Stacking Kit, Remote Computer Ovens M10587 Stacking Kit, Integral Computer Ovens...
