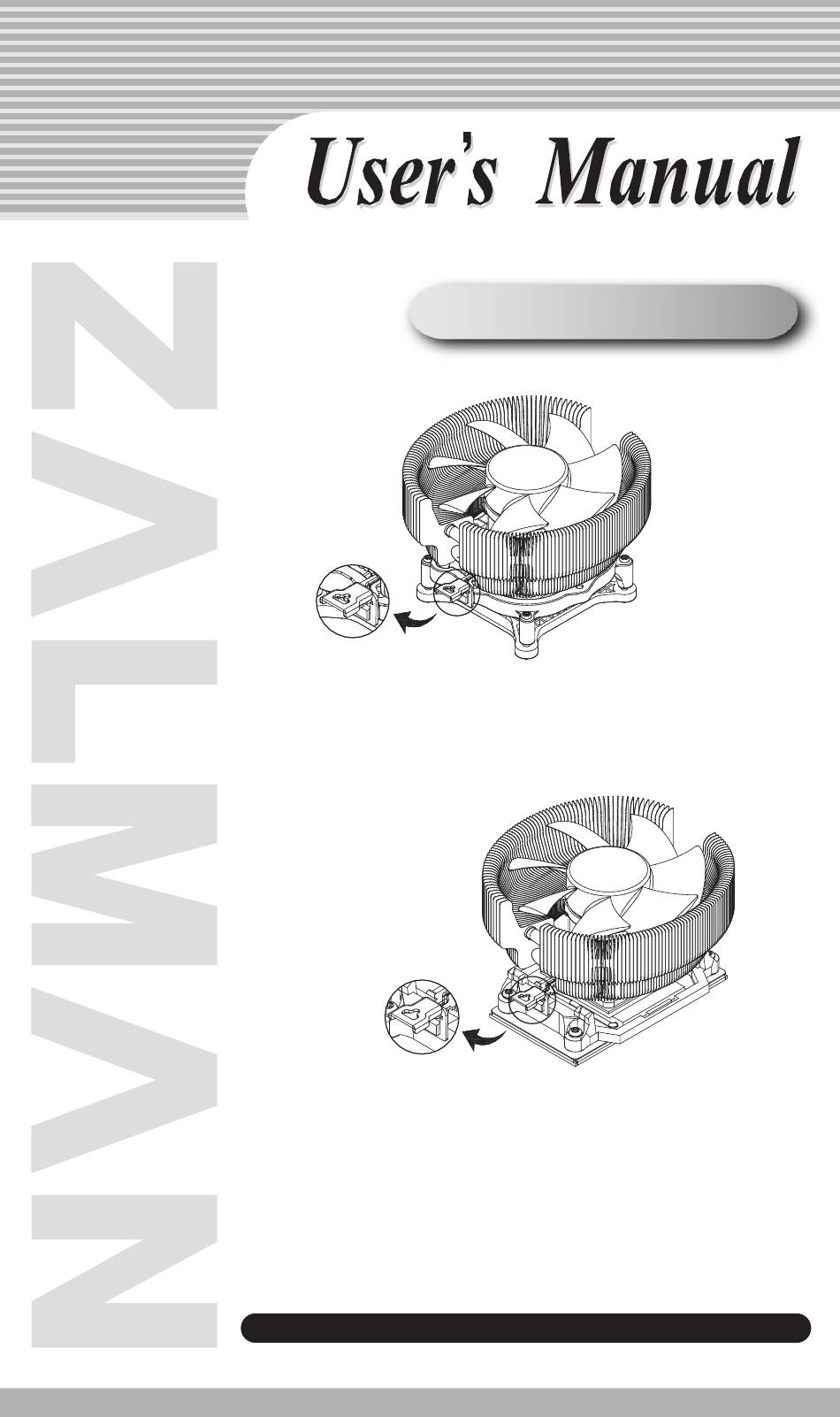

ZALMAN CNPS8700 NT User Manual
For intel socket 775 cpu, amd socket am2/754/939/940 cpu
Hide thumbs
Also See for CNPS8700 NT:
- User manual (8 pages) ,
- User manual (8 pages) ,
- User manual (9 pages)
Advertisement
Quick Links
(English version)
CNPS7500 LED
CNPS8700 NT
I I n n t t e e l l S S o o c c k k e e t t 7 7 7 7 5 5 C C P P U U
Core 2 Quad
Core 2 Extreme
Core 2 Duo
Pentium D
Pentium 4
Celeron D
A A M M D D S S o o c c k k e e t t A A M M 2 2 / / 7 7 5 5 4 4 / / 9 9 3 3 9 9 / / 9 9 4 4 0 0 C C P P U U
Athlon 64 FX
Athlon 64 X2 Dual-Core
Athlon 64
Opteron
Dual-Core Opteron
Sempron
* Please read this manual thoroughly before installation.
http://www.zalman.co.kr
http://www.zalmanusa.com
Advertisement
Related Manuals for ZALMAN CNPS8700 NT
Summary of Contents for ZALMAN CNPS8700 NT
- Page 1 (English version) CNPS7500 LED CNPS8700 NT I I n n t t e e l l S S o o c c k k e e t t 7 7 7 7 5 5 C C P P U U...
-
Page 2: Specifications
The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Sockets AM2/754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the specified weight limit. Zalman is not responsible for any damage that occurs when moving a computer. Note Measured at 1m distance away from the sound source. -
Page 3: Common Components
5) Do not ingest or put the thermal grease into the mouth. If ingested, get medical attention. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. - Page 4 7. Installation (Intel Socket 775) 1) Clip Support Installation Align the Clip Support for Socket 775(⑦) and the Backplate for Socket 775(⑧) with the mounting holes on the motherboard and fasten them together with the Clip Support Fixing Bolts(⑥). The Lever Slot on the Clip Support for Socket 775 should be properly oriented on the hinged side of the Socket Lever when installing.
- Page 5 4) Cooler Installation Slide the Clip Lever(④) onto the Clip’s(③) Groove for Intel. Align and connect the Clip’ s Lug Slot with the Arrow Marked Lug on the Clip Support for Socket 775. Press onto the Clip Lever when aligning the Clip Lever’...
-
Page 6: Power Connection
Clip Lever,④ 4) Power Connection ◆ Please refer to “9. Power Connection” on page 5. 9. Power Connection Connect the CNPS8700 NT’s Fan Connector to the Motherboard as shown in the diagram. Fan Connector (CNPS8700) Motherboard 10. Notes on Usage 1) Checking CPU Compatibility Please refer to “Compatible CPUs”... - Page 7 11. Zalman Computer Noise Prevention Systems Zalman's Noiseless Power Supplies, Fanless Northbridge Coolers, Heatpipe HDD Cooler, Noiseless Case Fans, VGA Coolers, and Fan Controllers facilitate stable performance and a noiseless computing environment. Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler...
