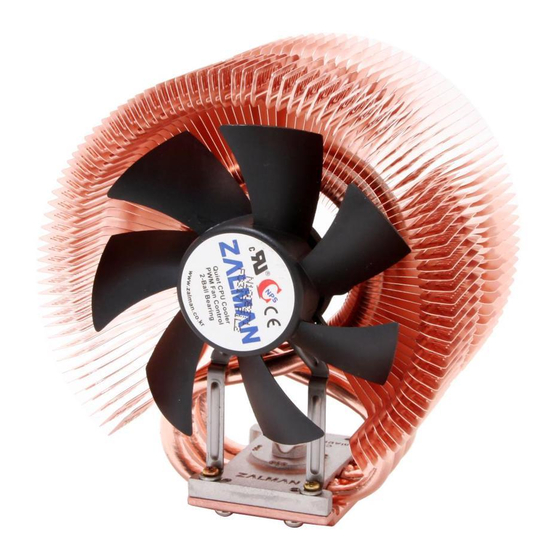

ZALMAN CNPS9500 AT User Manual
Cooler cnps9500 at
Hide thumbs
Also See for CNPS9500 AT:
- User manual (9 pages) ,
- User manual (7 pages) ,
- User manual (9 pages)
Related Manuals for ZALMAN CNPS9500 AT
Summary of Contents for ZALMAN CNPS9500 AT
- Page 1 (English version) (English version) CNPS9500 AT http://www.zalman.co.kr http://www.zalmanusa.com...
-
Page 2: Specifications
(Note 1) Maximum weight specified for a cooler is 450g for Intel socket 775. Special care and attention must be taken when moving a computer equipped with a cooler exceeding the specified weight limit. Zalman Tech Co., Ltd. Is not responsible for any damage that occurs when moving a computer. - Page 3 4) Check the components list and condition of the product before installation. If any problem is found, contact the place of purchase to obtain a replacement/refund. 5) Zalman Tech Co., Ltd. is not responsible for any damages arising from using the product outside of its intended purpose.
- Page 5 Install Cooler Insert two bolts ( ) into the holes on the clip ( ) and place CNPS9500 AT on the center of the CPU. CNPS9500 AT must be aligned with the backside system fan in the same flow direction.
- Page 6 Connect Fan Connector Connect the CNPS9500 AT’s Fan Connector to the Motherboard as shown in the diagram. Fan Connector (CNPS9500 AT) Motherboard 10. Notes on Usage 1) Cautions While Booting The operation of the PWM fan varies depending on the M/B setting. Please activate the PWM Control mode from BIOS after installing.
- Page 7 12. TNN (Totally No Noise) Computer Enclosures TNN 300 TNN 500 AF TNN Computer Enclosures are the world’s first environment-friendly noiseless computer enclosures that operate without the use of a fan. TNN Computer Enclosures use the aluminum enclosure itself as a heatsink. They are ideal for environments that require silence, as well as for home theatre systems and multi-media systems.
