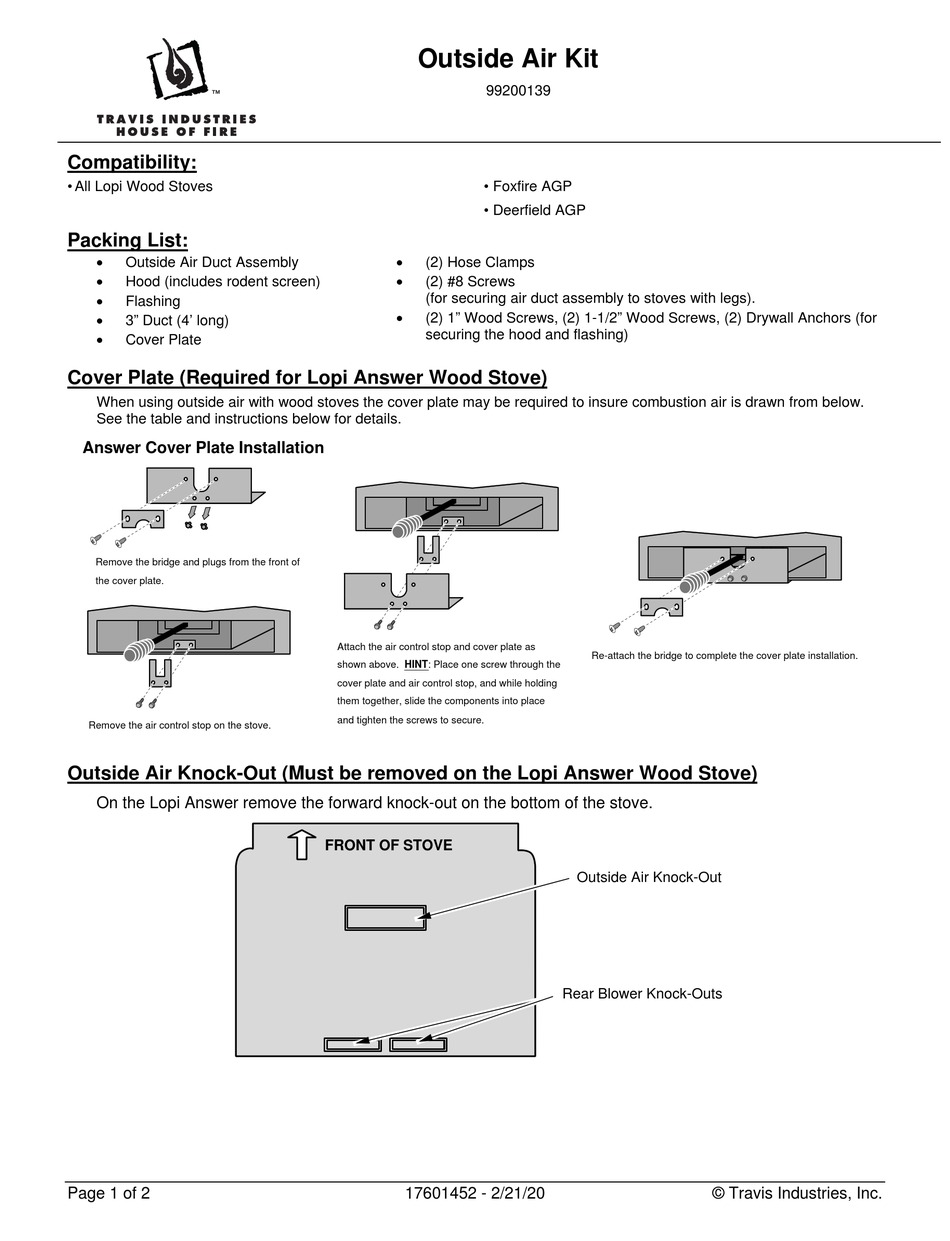

Travis Industries 99200139 Manual

Compatibility:
• All Lopi Wood Stoves
Packing List:

Outside Air Duct Assembly

Hood (includes rodent screen)

Flashing

3" Duct (4' long)

Cover Plate
Cover Plate (Required for Lopi Answer Wood Stove)
When using outside air with wood stoves the cover plate may be required to insure combustion air is drawn from below.
See the table and instructions below for details.
Answer Cover Plate Installation
Remove the bridge and plugs from the front of
the cover plate.
Remove the air control stop on the stove.
Outside Air Knock-Out (Must be removed on the Lopi Answer Wood Stove)
On the Lopi Answer remove the forward knock-out on the bottom of the stove.
Page 1 of 2
Outside Air Kit
99200139
• Foxfire AGP
• Deerfield AGP

(2) Hose Clamps

(2) #8 Screws
(for securing air duct assembly to stoves with legs).

(2) 1" Wood Screws, (2) 1-1/2" Wood Screws, (2) Drywall Anchors (for
securing the hood and flashing)
Attach the air control stop and cover plate as
shown above. HINT: Place one screw through the
cover plate and air control stop, and while holding
them together, slide the components into place
and tighten the screws to secure.
FRONT OF STOVE
17601452 - 2/21/20
Re-attach the bridge to complete the cover plate installation.
Outside Air Knock-Out
Rear Blower Knock-Outs
© Travis Industries, Inc.
