Featuring the
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the
type(s) of gas indicated on the rating
plate. A conversion kit is supplied with
the appliance.
· Tree of Life
Installer:
After installation give this manual to the homeowner and
explain the operation of this heater.
© Copyright 2013, T.I.
Burner
Owner's Manual
$10.00
100-01313

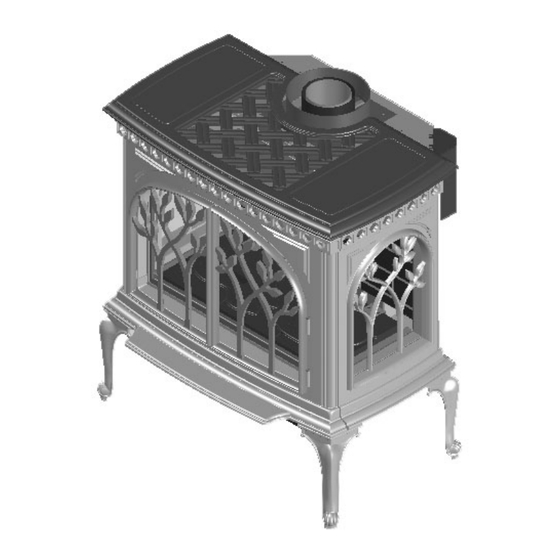

• Direct Vent Freestanding Stove
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
ANSI Z21.88 CSA 2.33
2 ·
www.travisproducts.com
4800 Harbour Pointe Blvd. SW
4121128
Mukilteo, WA 98275
Advertisement
Table of Contents
Related Manuals for Travis Industries Avalon Tree of Life GS2
Summary of Contents for Travis Industries Avalon Tree of Life GS2
- Page 1 • Direct Vent Freestanding Stove • Natural Gas or Propane • Vent Horizontally or Vertically • Standard Residential • Mobile Home Approved Tested and Listed by Featuring the Burner ANSI Z21.88 CSA 2.33 WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Introduction
Do not mail your Bill of Sale to us. Model: Avalon Tree of Life GS2 We suggest that you attach your Bill of Sale Serial Number: to this page so that you will have all the... -
Page 3: Table Of Contents
Class A Chimney Conversion Kit ....21 Order of Installation ..........51 Interior Masonry Chimney Conversions ..22 Wiring the Blower to the GSR2 IFC (Bypassing the Rheostat)............51 Steps for Finalizing the Installation .... 23 Air Shutter Adjustment...........24 © Travis Industries 4121128 100-01313... -
Page 4: If You Smell Gas
© Travis Industries 4121128 100-01313... - Page 5 Always follow the • If the fiber logs become instructions in this manual. damaged, replace with Travis Industries log set. • • Plug the heater into a 120V Travis Industries, Inc. grounded electrical outlet. grants no warranty,...
-
Page 6: Features
This heater is shipped in natural gas (NG) configuration but may be converted to propane (LP) using the included LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel. © Travis Industries 4121128... -
Page 7: Packing List
Packing List Additional Items Required • • Vent (see “Venting Requirements” for details) Propane Conversion Kit • • Log Set Gas Line Equipment (shutoff valve, pipe, etc.) • Touch-Up Paint Installation Overview © Travis Industries 4121128 100-01313... -
Page 8: Installation Hints
When the stove is installed in a mobile home, it must be bolted to the floor and the appliance grounded (use the optional blower with a grounded circuit or other suitable grounding method - current ANSI/NFPA 70 or CSA C22.1). © Travis Industries 4121128 100-01313... -
Page 9: Heater Placement Requirements
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. © Travis Industries 4121128 100-01313... -
Page 10: Optional Wall Switch Or Thermostat Installation
Heater is OFF Thermostat / Heater is OFF Heater is OFF Switch OFF External Switch OFF To wire the heater in parallel, follow the directions below: To wire the heater in series, follow the directions below: © Travis Industries 4121128 100-01313... -
Page 11: Gas Line Installation
Contact the local gas supplier if the regulator is at an improper pressure. Standard Input Pressure 7” W.C. (1.74 Kpa) Natural Gas 13” W.C. (3.23 Kpa) Propane © Travis Industries 4121128 100-01313... -
Page 12: Vent Requirements
If it does not, apply high temperature sealant to the joints of the affected sections. • Horizontal sections require a 1/4" rise every 12" of travel • Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape) © Travis Industries 4121128 100-01313... -
Page 13: Approved Vent Configurations
Depending upon the vent configuration, you may be required to adjust the restrictor position. The charts for approved vent configurations describe which position the vent restrictor must be in. Measuring Vent Lengths © Travis Industries 4121128 100-01313... -
Page 14: Vertical Terminations With Zero, Two, Or Four 45° Elbows
10’ Minimum System Height (with or without offsets) • 40’ Maximum System Height • 24’ Maximum Offset • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 15: Horizontal Termination With One 90° Elbow
If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations). • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 16: Horizontal Termination With Two Elbows (One 90° Vertical And One 90° Or 45° Horizontal Elbow)
If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations). • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 17: Horizontal Termination With Three 90° Elbows (All Vertical)
If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel terminations are used primarily for basement installations). • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 18: Vertical Terminations With Two 90° Elbows
Installation (for qualified installers only) Vertical Terminations with Two 90° Elbows • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 19: Vertical Terminations With Three 90° Elbows (Two 90° Vertical And One 45° Or 90° Horizontal Elbow)
(for qualified installers only) Vertical Terminations with Three 90° Elbows (Two 90° Vertical and One 45° or 90° Horizontal Elbow) • The termination must fall within the shaded area shown in the chart. Use the indicated restrictor position. © Travis Industries 4121128 100-01313... -
Page 20: Vent Termination Requirements (See Illustration Below)
Minimum 24” (610mm) horizontal clearance to any surface (such as an exterior wall) – for vertical terminations • Use the vinyl siding standoff when installing on an exterior with vinyl siding. • Vent termination must not be located where it will become plugged by snow or other material © Travis Industries 4121128 100-01313... -
Page 21: Class A Chimney Conversion Kit
American Metals 8" I.D. Air-Jet 8" I.D. Metal-Fab 8" I.D. American Metals 8" I.D. Each Kit Contains: Retro Connector Retro Vertical Top Additional Required Equipment: 4" Flex (#711 or U.L. 1777) Termination (#991) Co-Axial Sections © Travis Industries 4121128 100-01313... -
Page 22: Interior Masonry Chimney Conversions
• Minimum vertical rise is 10' • See the chart on page 18 for determining the correct restrictor position. NOTE: these restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly. © Travis Industries 4121128 100-01313... -
Page 23: Steps For Finalizing The Installation
(AC) power goes out. Install the 9v battery (included in the owner’s pack) into control panel light assembly (see the illustration below). Velcro is provided to secure the 9v battery. © Travis Industries 4121128... -
Page 24: Air Shutter Adjustment
The flames should burn off of each burner hole. If the heater does not work correctly, contact your Travis dealer for a remedy. 11. Give this manual to the home owner for future reference and fully explain operation of this heater. © Travis Industries 4121128 100-01313... -
Page 25: Face And Glass Removal
Finalizing the Installation (for qualified installers only) Face and Glass Removal Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service. © Travis Industries 4121128 100-01313... - Page 26 Glass Frame Removal and Installation (continued) The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 4121128 100-01313...
-
Page 27: Log Installation
(see photos below). Rear Log Placement The rear log has two holes on the bottom. Place the log so the pins on the burner insert into the holes on the log (see photos below). © Travis Industries 4121128 100-01313... -
Page 28: Left Log Placement
Right Log Placement The right log has two holes on the bottom. Place the log so the pin on the burner and the metal bracket insert into the holes on the log (see photos below). © Travis Industries 4121128 100-01313... -
Page 29: Right Twig Placement
The left twig has two holes in the bottom of it – for this model, place the log so the left pin on the rear log inserts into the lower hole (see photo below). The bottom of the log rests on the left log. Place the log as shown below. © Travis Industries 4121128 100-01313... -
Page 30: Front Ember Chunk Placement
Use a stiff brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause sooting or other adverse conditions. © Travis Industries 4121128 100-01313... -
Page 31: Before You Begin
This switch turns the rear burner on and off. AA Battery Holder This holder contains 4 AA batteries that allow the stove to operate during power outages. Main Burner This switch turns the stove burners on and off. © Travis Industries 4121128 100-01313... -
Page 32: Starting The Stove For The First Time
Adjusting the Flame Height This stove has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the flame adjust knob. © Travis Industries 4121128 100-01313... -
Page 33: Accent Light
Frequent On / Off Operation – if you are frequently turning the stove on and off, you may wish to leave it in continuous pilot. This allows the burner to turn on more quickly, without pilot ignition delay. © Travis Industries 4121128... -
Page 34: Normal Operating Sounds
This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create a burnt-paper smell. This is normal during startup. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 4121128 100-01313... -
Page 35: Maintaining Your Stove's Appearance
LED lights and a 9v battery are used to illuminate the control panel when the concealment cover is lifted. If the LED lights do not operate, replace the 9v battery (see the illustration below). Velcro is provided to secure the 9v battery. © Travis Industries 4121128... -
Page 36: Accent Light Replacement
Monitor blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Venting system should be examined by a qualified agency. © Travis Industries 4121128 100-01313... -
Page 37: Troubleshooting Table
Light Fuse Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. -
Page 38: Safety Label
Safety Label Safety Label The safety (listing) label is on the back of the stove. A copy is shown below. © Travis Industries 4121128 100-01313... -
Page 39: Burner Assembly
At that time, you may be asked to ship your appliance, freigh t charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, you r TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. -
Page 40: Lp Conversion Instructions
Remove the glass (see page 25). Remove the logs and embers (if installed - page 27) Remove the burner (see below). Grasp the burner with both hands and lift it straight up and out of the firebox. Remove the manifold cover to access the burner orifices (see below). © Travis Industries 4121128 100-01313... - Page 41 Follow the directions below to replace the orifices. Rear Burner Orifice Front Burner Orifice Thread Sealant 15/16" 24mm 1/2" Wrench Orifice ID ORIFICE SIZE Natural Gas LP (Propane) Front Burner Orifice #50 DMS #58 DMS Rear Burner Orifice #47 DMS #56 DMS © Travis Industries 4121128 100-01313...
- Page 42 Make the gas line connection, bleed the gas line (if applicable), start the heater and thoroughly leak-test all gas connections and the gas control valve. © Travis Industries 4121128 100-01313...
-
Page 43: Gs2 Remote Installation
If you need to replace dead batteries, make sure to turn the appliance off before removing the batteries. NOTE: If the batteries go dead, the system will operate normally as long as household power (120v AC) is present. © Travis Industries 4121128 100-01313... -
Page 44: Base Wiring Diagram
Ground 3.15A FUSE Base Pilot Sensor Integrated Flame Fireplace Detect Control Spark (IFC) Appliance Ground Comfort Control Valve IPI/CPI Switch Green White ON / OFF Black Comfort Control AA Battery Main Burner Switch Tray Switch © Travis Industries 4121128 100-01313... -
Page 45: Gs2 Remote Wiring Diagram
2.5 Amp Fuse 2.5 Amp Fuse Appliance Ground 3.15A FUSE Integrated Pilot Sensor Fireplace Flame Control Detect (IFC) Spark System Jumper Appliance Ground IPI/CPI JUMPER WIRE Comfort Control Valve Black (4) AA Batteries Battery Box (Manual On/Off) © Travis Industries 4121128 100-01313... -
Page 46: Installation
2. Remove the control panel and place face-down in front of the heater (keep the screws). 3. Disconnect the comfort control and battery backup wires. 4. Remove and place aside the Comfort Control-Battery Plate with harness (the batteries and assembly may be kept for spare parts). © Travis Industries 4121128 100-01313... - Page 47 5. Remove the rear panel from the heater and set aside. It is held in place with seven screws. Screw Locations 6. Disconnect input power. 7. Pull the base IFC to the rear of the stove to access the wiring (it is held in place with Velcro). © Travis Industries 4121128 100-01313...
- Page 48 9. Remove and place aside the base IFC (it may be kept for spare parts). 10. Remove the on/off switch by prying it out. Disconnect the wires. 11. Push the wires back into the holder to conceal them. © Travis Industries 4121128 100-01313...
- Page 49 SURE IT IS CORRECTLY ORIENTED. Secure using the screws included with the motor – tighten to 25 Lb-inches. Leak-test this area after installation to verify proper installation. Route the stepper motor wire near the IFC location. © Travis Industries 4121128 100-01313...
-
Page 50: Wiring The Blower To The Gsr2
(see “e”) to “FAN” lead on the fuse harness (pre-connected to the IFC). This circuit bypasses the rheostat and snap disc (these components included with the blower kit are not used and may be kept for replacement part purposes). © Travis Industries 4121128 100-01313... -
Page 51: Order Of Installation
Attach the quick-connects from the power lead to the accent light. (d) Attach the accent light power input (see “d”) to the molex from the IFC labeled “LIGHT” (pre- connected to the IFC). Accent Light (s) 3.15 15. Place the GSR2 IFC near the appliance. © Travis Industries 4121128 100-01313... - Page 52 (for qualified installers only) 16. Attach the following: (Black) (White) (Green) Pilot connections Power (3 wires – make sure orientation is correct) Comfort Control connection Make sure silicone tubing is pushed down Main Harness Stepper Motor © Travis Industries 4121128 100-01313...
- Page 53 18. Remove the IPI/CPI switch and place aside (may be kept for spare parts). 19. Connect the accent light wires to the GSR2 IFC. NOTE: If using a blower, connect the power input to the GSR2 IFC. © Travis Industries 4121128 100-01313...
- Page 54 22. Place the IFC in location inside the heater and attach using the supplied velcro tape. 23. Use the two included cable ties to make sure all wiring is secure and does not contact any hot or moving parts. © Travis Industries 4121128 100-01313...
- Page 55 Optional Equipment (for qualified installers only) 24. Re-attach the control panel. 25. Attach the battery box to the control panel using the screws removed in step 2. © Travis Industries 4121128 100-01313...
- Page 56 26. Re-connect the input power. 27. Replace the rear panel and restore the stove to the correct configuration (turn on power and gas). See the instructions included with the remote for synchronizing the remote and the operating instructions. © Travis Industries 4121128 100-01313...
- Page 57 Optional Equipment (for qualified installers only) © Travis Industries 4121128 100-01313...
- Page 58 Vertical Terminations with Two 90° Elbows..18 Horizontal Termination with Two Elbows ..16 Vertical Terminations with Zero, Two, or Four Important Information ........2 45° Elbows ..........14 Installation Hints ..........8 Yearly Service Procedure ......36 Installation Options: ........6 © Travis Industries 4121128 100-01313...
