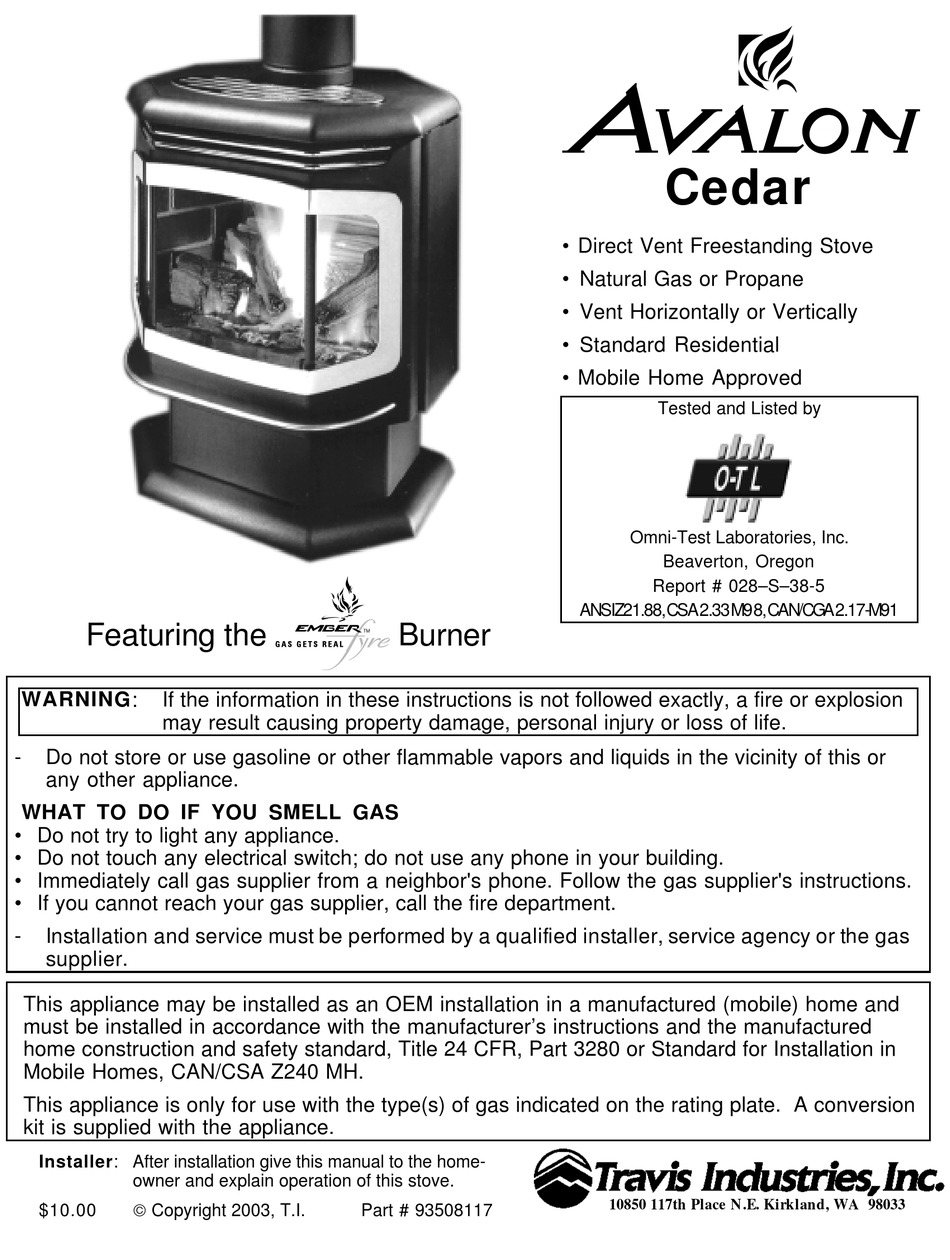

Featuring the
WARNING:
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and
must be installed in accordance with the manufacturer's instructions and the manufactured
home construction and safety standard, Title 24 CFR, Part 3280 or Standard for Installation in
Mobile Homes, CAN/CSA Z240 MH.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
Installer: After installation give this manual to the home-
owner and explain operation of this stove.
Copyright 2003, T.I.
$10.00
Burner
Part # 93508117
C e d a r
• Direct Vent Freestanding Stove
• Natural Gas or Propane
• Vent Horizontally or Vertically
• Standard Residential
• Mobile Home Approved
Tested and Listed by
Omni-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028–S–38-5
ANSI Z21.88, CSA 2.33 M9 8, CAN/CGA 2.17-M91
10850 117th Place N.E. Kirkland, WA 98033
Advertisement
Table of Contents
Related Manuals for Travis Industries Avalon Cedar
Summary of Contents for Travis Industries Avalon Cedar
- Page 1 C e d a r • Direct Vent Freestanding Stove • Natural Gas or Propane • Vent Horizontally or Vertically • Standard Residential • Mobile Home Approved Tested and Listed by Omni-Test Laboratories, Inc. Beaverton, Oregon Report # 028–S–38-5 ANSI Z21.88, CSA 2.33 M9 8, CAN/CGA 2.17-M91 Featuring the Burner WARNING:...
-
Page 3: Introduction
Bill of Sale to this page so that you will have all the information you need in one place should the need for service or information occur. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 4: Safety Precautions
• Keep all furniture or other combustible items at least 36” away from the front of the heater. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 5: Safety Precautions
Always follow the instructions in this manual. • If the fiber logs become damaged, replace with Travis Industries log set. • Do not touch the hot • Plug the heater into a 120V surfaces of the heater. -
Page 6: Table Of Contents
Index Termination Requirements ........16 Index...............40 Finalizing the Installation ........17 Installing the Control Box........17 Opening the Door ..........19 Log Set and Coal Installation ........20 Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 7: Specifications
LP conversion kit. The sticker on top of the gas control valve will verify the correct fuel. Electrical Specifications Electrical Rating (with optional blower)......115 Volts, 0.8 Amps, 60 Hz (92 watts on high) Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 8: Installation
When the stove is installed in a mobile home, it must be bolted to the floor and the appliance grounded (use the blower with a grounded circuit or other suitable grounding method - current ANSI/NFPA 70 or CSA C22.1). Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 9: Heater Placement Requirements
Standard Input Pressure Natural Gas 7” W.C. (1.74 Kpa) Pr o p an e 13” W.C. (3.23 Kpa) Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 10: Vent Requirements
• Horizontal sections require a 1/4" rise every 12" of travel • Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape) Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 11: Approved Vent Configurations
1-1/2" (37 mm) The starter section is 3/8" above the top Vent Length 1-1/2" (3', 4', etc.) (37 mm) (910, 1210 mm) Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 12: Vertical Term's With 0,2, Or 4 45° Elbows
Position # 5 20 feet 20 feet 15 feet 15 feet 10' (min.) 10' (min.) 5 feet 5 feet 0 feet 0 feet Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 13: Horizontal Terminations With One 90° Elbow
12" of travel. 5 feet 5 feet NATURAL GAS: Min. 2' Section Required PROPANE (LP): Min. 3' Section Required 0 feet 0 feet Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 14: Horizontal Terminations With Two 90° Elbows
(Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbows Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 15: Horizontal Terminations 3 90° Elbows
12" of travel. 0 feet 0 feet These are vertical elbows. This is a horizontal elbow - NOT ALLOWED FOR THIS VENT CONFIGURATION Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 16: Vertical Terminations With Two 90° Elbows
12" of travel. 5 feet 0 feet 0 feet These are vertical elbows. This is a horizontal elbow - NOT ALLOWED FOR THIS VENT CONFIGURATION Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 17: Vertical Term's With Three 90° Elbows
(Horizontal Length = H1 + H2). It may be a 45° or 90° elbow. This is considered a vertical elbow Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 18: Termination Requirements
Vent termination must not be located where it will become plugged by snow or other material • These clearances meet UMC-1994 and the CNA/CGA-B149 code standards. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 19: Finalizing The Installation
Clockwise thermopile (see the illustration below). Adjust the pilot up or lowers the flame while counter-clockwise raises it. down as necessary. Standard Screwdriver Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... - Page 20 Give this manual to the home owner and fully explain the operation of this heater. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7...
-
Page 21: Opening The Door
When securing the door, make sure the pawl fits over the strike before tightening. NOTE: Do not overtighten the pawl by screwing it in. This will permanently damage the latch. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 22: Log Set And Coal Installation
(instead of cast into the burner). Place it in the location shown (it should not cover any burner holes). Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 23: Operation
If using a remote control or thermostat, the On/Off Switch must be left “ON”. Turning the On/Off Switch “OFF” will keep the heater off always. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 24: Starting The Pilot Flame
Close and latch the door. Turn the gas control knob counter-clockwise to "ON". The pilot is now lit and the heater can be turned on and off. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 25: Starting The Heater For The First Time
Index Mark Flame Height Adjustment Knob Turn counter-clockwise to adjust the flame higher, clockwise to lower. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 26: Adjusting The Blower Speed
This is normal during startup. You may notice the smell is more acute if the appliance was left idol for a long period. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 27: Maintenance
Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 28: Troubleshooting Steps
Flames Are Too Short The flame height may be turned too low....Turn the flame height to “HI” - See “Adjusting the Flame Height” (Under 6”) Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 29: How This Heater Works
If the pilot flame tested to be extremely resistant to goes out, the gas valve automatically breakage from temperature changes. shuts off all gas. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 30: Wiring Diagram
Threaded Pipe Adapter - 1/2 x 3/8 98900747 On/Off Switch 93006920 Threaded Pipe Adapter - 5/8 x 1/2 98900717 Orifice, Burner, .0625 93006505 Wiring Harness Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 31: Safety Label
2000 Jan. Apr. Jul. Oct. Date: 2001 Feb. Aug. Nov. 10850 117th Pl. N.E. Kirkland, WA 98033 2002 Mar. Jun. Sep. Dec. 0398 Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 32: Warranty
TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. TRAVIS INDUSTRIES, INC. will return your appliance, freight charges (years 1 to 5) prepaid by TRAVIS INDUSTRIES, INC., to your regional distributor, or dealership. -
Page 33: Optional Equipment & Addenda
BURNER INSTALLATION WARNING: When replacing the burner, make sure Burner Tube this “O” ring seals the burner tube to the mixing tube. Mixing Tube Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... - Page 34 Screw the LP orifice in 5/16” The old NG so the orifice shoulder orifice has “37” protrudes 5/16” stamped on it. (indicating full insertion). Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7...
- Page 35 (or T-20 Torx) (or T-20 Torx) regulator gasket is correctly Remove and discard the aligned before installation. regulator, diaphram, spring and center post. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7...
-
Page 36: Fireback
Place the rear fireback on top of the clip (the side firebacks keep the rear fireback from falling forward). 1/4" Nutdriver 1/4" Nutdriver Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 37: Blower
IN UNTIL INSTALLATION IS from the control box to the two spacers inserted inside) onto the COMPLETE. block wires labeled “Rheostat”. fan mounting bracket. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... - Page 38 Plug the blower in. Let the heater achieve operating temperature and test blower operation. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7...
-
Page 39: Gold Door
Use denatured alcohol and a soft cloth to clean. Denatured Alcohol Soft Cloth 11/32" Nutdriver Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 40: Class A Chimney Conversion Kit
American Metals 8" I.D. Each Kit Contains: Retro Connector Retro Vertical Top Additional Required Equipment: 4" Flex (#711 or U.L. 1777) Termination (#991) Co-Axial Sections Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 41: Installation Addenda
1” clearance to any Connector (included in #934 combustible. The vent must be Masonry Conversion Kit) sealed air-tight. secured and sealed to block-off plate. Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7... -
Page 42: Index
Horizontal Vent Termination Requirements ..16 Yearly Service Procedure......25 How to Measure Vent Lengths ....9 Installation Options ........5 Installation Preparation........6 Leaking Gas .......See Inst. on Cover Travis Industries 4 0 3 0 2 0 6 9 3 5 0 8 1 1 7...
