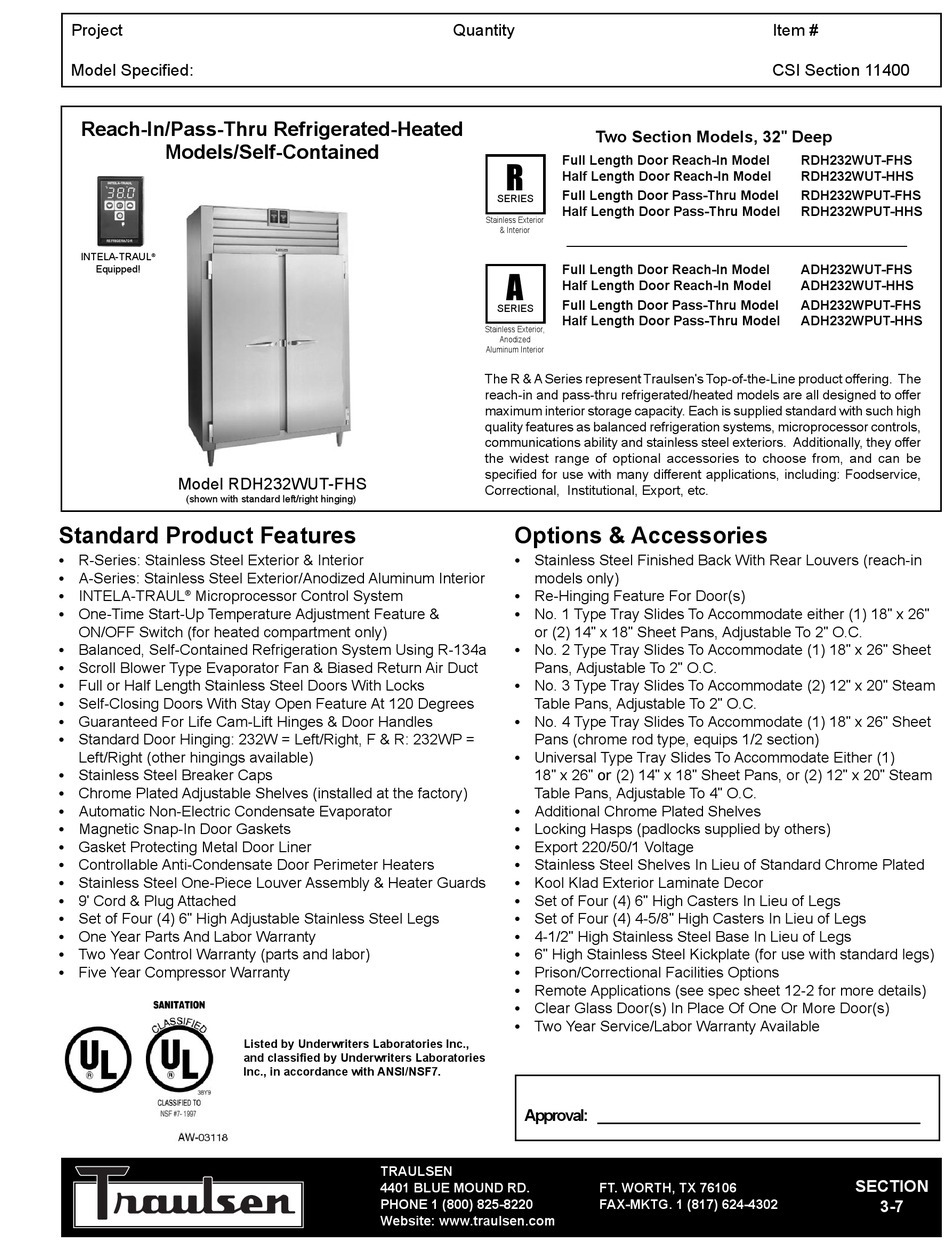

Traulsen RDH232WUT-FHS Specification Sheet

Project
Model Specified:
Reach-In/Pass-Thru Refrigerated-Heated
Models/Self-Contained
INTELA-TRAUL
®
Equipped!

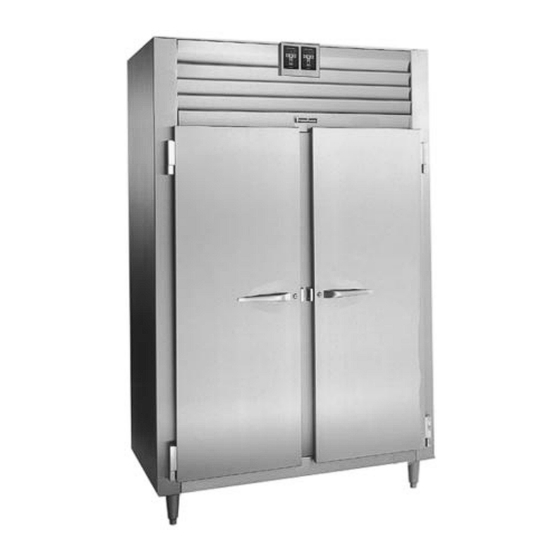

Model RDH232WUT-FHS
(shown with standard left/right hinging)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL Microprocessor Control System
®
• One-Time Start-Up Temperature Adjustment Feature &
ON/OFF Switch (for heated compartment only)
• Balanced, Self-Contained Refrigeration System Using R-134a
• Scroll Blower Type Evaporator Fan & Biased Return Air Duct
• Full or Half Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges & Door Handles
• Standard Door Hinging: 232W = Left/Right, F & R: 232WP =
Left/Right (other hingings available)
• Stainless Steel Breaker Caps
• Chrome Plated Adjustable Shelves (installed at the factory)
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Stainless Steel One-Piece Louver Assembly & Heater Guards
• 9' Cord & Plug Attached
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc.,
and classified by Underwriters Laboratories
Inc., in accordance with ANSI/NSF7.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
Two Section Models, 32" Deep
Full Length Door Reach-In Model
R
Half Length Door Reach-In Model
Full Length Door Pass-Thru Model
SERIES
Half Length Door Pass-Thru Model
Stainless Exterior
& Interior
Full Length Door Reach-In Model
A
Half Length Door Reach-In Model
Full Length Door Pass-Thru Model
SERIES
Half Length Door Pass-Thru Model
Stainless Exterior,
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
reach-in and pass-thru refrigerated/heated models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they offer
the widest range of optional accessories to choose from, and can be
specified for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.
Options & Accessories
• Stainless Steel Finished Back With Rear Louvers (reach-in
models only)
• Re-Hinging Feature For Door(s)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Table Pans, Adjustable To 4" O.C.
• Additional Chrome Plated Shelves
• Locking Hasps (padlocks supplied by others)
• Export 220/50/1 Voltage
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Kool Klad Exterior Laminate Decor
• Set of Four (4) 6" High Casters In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Prison/Correctional Facilities Options
• Remote Applications (see spec sheet 12-2 for more details)
• Clear Glass Door(s) In Place Of One Or More Door(s)
• Two Year Service/Labor Warranty Available
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RDH232WUT-FHS
RDH232WUT-HHS
RDH232WPUT-FHS
RDH232WPUT-HHS
ADH232WUT-FHS
ADH232WUT-HHS
ADH232WPUT-FHS
ADH232WPUT-HHS
SECTION
3-7
