Traulsen RDT132WPUT-HHS Specification Sheet

Project
Model Specified:
"W-Width" Pass-Thru Refrigerator-Freezer
Models/Self-Contained
INTELA-TRAUL
®
Equipped!

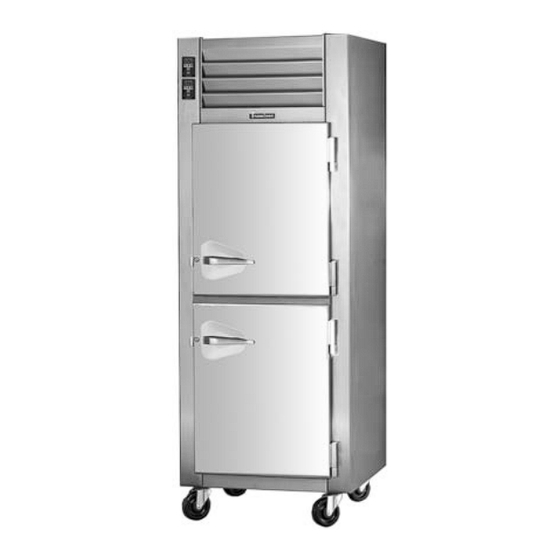

Model RDT132WPUT-HHS
(shown with optional casters)
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL Microprocessor Control System
®
• Balanced, Self-Contained Dual Refrigeration Systems Using
R-134a & R-404A Refrigerants
• Scroll Blower Type Evaporator Fan (2 & 3 section models only)
• Biased Return Air Duct (2 & 3 section models only)
• Full or Half Length Stainless Steel Doors With Locks (full-
length doors n/a on one-section models)
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handle
• Standard Door Hinging F & R: 132WP = Right, 232WP =
Left/Right, 332 = Left/Right/Right (other hingings available)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Chrome Plated Adjustable Shelves (installed at the factory)
• Automatic Non-Electric Condensate Evaporator (2 & 3 section
models only)
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• 9' Cord & Plug Attached (1 & 2 section models only)
• Set of Four (4) 6" High Adjustable Stainless Steel Legs
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
Listed by Underwriters Laboratories Inc., to
U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD.
PHONE 1 (800) 825-8220
Website: www.traulsen.com
Quantity
One, Two & Three Section Models, 32" Deep
2-Section Full Length Door Model
R
3-Section Full Length Door Model
1-Section Half Length Door Model
SERIES
2-Section Half Length Door Model
Stainless Exterior
3-Section Half Length Door Model
& Interior
2-Section Full Length Door Model
A
3-Section Full Length Door Model
1-Section Half Length Door Model
SERIES
2-Section Half Length Door Model
Stainless Exterior,
3-Section Half Length Door Model
Anodized
Aluminum Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The
"W-Width" pass-thru refrigerator/freezer models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they offer
the widest range of optional accessories to choose from, and can be
specified for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.
Options & Accessories
• Re-Hinging Feature For Door(s)
• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"
or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.
• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.
• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.
• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)
• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam
Table Pans, Adjustable To 4" O.C.
• Additional Chrome Plated Shelves
• Locking Hasps (padlocks supplied by others)
• Export 220/50/1 Voltage
• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1
• Stainless Steel Shelves In Lieu of Standard Chrome Plated
• Kool Klad Exterior Laminate Decor
• Set of Four (4) 6" High Casters In Lieu of Legs
• Set of Four (4) 4-5/8" High Casters In Lieu of Legs
• 4-1/2" High Stainless Steel Base In Lieu of Legs
• 6" High Stainless Steel Kickplate (for use with standard legs)
• Prison/Correctional Facilities Options
• Remote Applications (see spec sheet 12-2 for more details)
• Clear Glass Door(s) In Place Of One Or More Refrigerator
Section Door(s)
• Two Year Service/Labor Warranty Available
Approval: ___________________________________
FT. WORTH, TX 76106
FAX-MKTG. 1 (817) 624-4302
Item #
CSI Section 11400
RDT232WPUT-FHS
RDT332WPUT-FHS
RDT132WPUT-HHS
RDT232WPUT-HHS
RDT332WPUT-HHS
ADT232WPUT-FHS
ADT332WPUT-FHS
ADT132WPUT-HHS
ADT232WPUT-HHS
ADT332WPUT-HHS
SECTION
3-4
