Trane PKG-PRC002-EN Manual

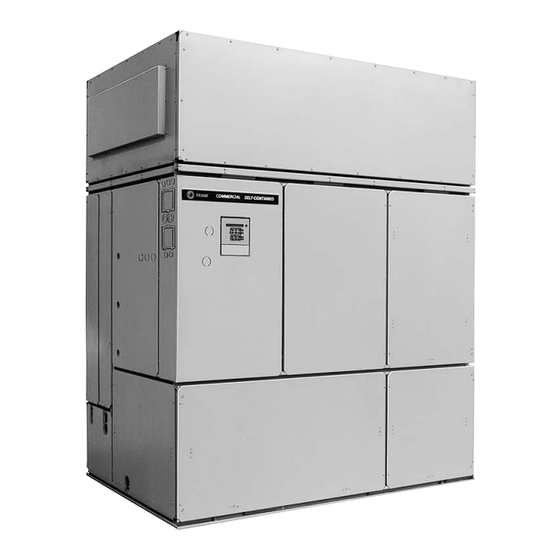

Trane 20-80 ton water-cooled air conditioners 20-60 ton air-cooled air conditioners remote air-cooled condensers manual pkg-prc002-en intellipak signature series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Commercial Self-Contained
®
IntelliPak
Signature Series
20-80 T on Water-Cooled Air Conditioners
20-60 T on Air-Cooled Air Conditioners
Remote Air-Cooled Condensers
PKG-PRC002-EN
December 2001

Advertisement

Table of Contents
loading

Related Manuals for Trane PKG-PRC002-EN

Summary of Contents for Trane PKG-PRC002-EN

  • Page 1 Commercial Self-Contained ® IntelliPak Signature Series 20-80 T on Water-Cooled Air Conditioners 20-60 T on Air-Cooled Air Conditioners Remote Air-Cooled Condensers PKG-PRC002-EN December 2001...

  • Page 2: Introduction

    Affordable Self-Contained Value from T rane… Trane’s advanced technology brings unmatched reliability, high performance, and affordable cost! Waterside economizer (cleanable option shown) 2-inch flat filter box inside unit casing Internally trapped drain for low cost installation Waterside valve package option to...

  • Page 3: Table Of Contents

    PKG-PRC002-EN Contents Introduction Features and Benefits Application Considerations Selection Procedure Model Number Description General Data Performance Data Airside Pressure Drops Waterside Pressure Drops Water-Cooled Units Air-Cooled Units Heating Coils Controls Electrical Data Dimensions and Weights Mechanical Specifications Options...

  • Page 4: Features And Benefits

    • Airside economizer with Traq™ damper allows direct measurement and control of outdoor air Enhanced Serviceability • Self-supporting removable panels • Quick access service panel fasteners • Eye level control/service center • Refrigerant line sight glasses in view during operation PKG-PRC002-EN...
  • Page 5 This decreases static pressure and horsepower. The unloading characteristics of a Trane FC fan with inlet guide vanes results in superior part load performance. Variable Frequency Drives (VFD)
  • Page 6 You can control, monitor, and service your facility—all from your personal computer. The IntelliPak ® self-contained unit, as part of Trane ICS, provides powerful maintenance monitoring, control, and ® reporting capabilities. Tracer places the self-contained unit in the appropriate...
  • Page 7 Trane 3-D scroll compressors have undergone more than 400,000 hours of laboratory testing and field operation. This work combined with over 25 patents makes Trane the worldwide leader in air conditioning scroll compressor technology. PKG-PRC002-EN Features and Benefits One of two matched scroll plates —...

  • Page 8: Application Considerations

    Using round supply duct and static regain allows maximum discharge air velocities up to 3,000 fpm. Lining round supply duct also substantially lowers frequency noise attenuation. However, flow regenerated noise potential increases dramatically at air velocities over 3000 fpm. PKG-PRC002-EN...
  • Page 9 Ductwork Design duct connections to the unit using a flexible material. Consult local codes for approved flexible duct material to prevent fire hazard potential. PKG-PRC002-EN Application Considerations Double Stud Offset Wall with Interwoven Insulation Piping Connections Rubber isolator connectors are...
  • Page 10 Signature Series self-contained units use fixed pitch sheaves. Adjust air balancing by obtaining alternate fixed pitch sheave selections from the local Trane sales office. Waterflow Use 3 gpm/ton for optimum unit capacity and efficiency. Use 2.5 or 2 gpm/ton to reduce pump energy, cooling tower and piping costs.

  • Page 11: Air Cooled Condenser

    Maximum ambient temperature operation of a standard condenser is 115 F (46.1 C). Operation at design ambient above 115 F can result in excessive head pressures. For applications above 115 F , contact the local Trane sales office.

  • Page 12: Selection Procedure

    Fan motor heat (MBh) = 2.8 x fan motor brake horsepower Determine net total and sensible capacity by subtracting fan motor heat from gross total and sensible capacity. Refer to the Trane psychometric chart to determine leaving air temperatures. PKG-PRC002-EN...
  • Page 13 T to reflect the higher cfm: design cfm 14840 = +6% of nom. cfm nominal 14000 PKG-PRC002-EN Selection Procedure Refer to Table PD-1 on page 31 to obtain the capacity correction factors for +6% of nominal cfm: Cooling capacity multiplier = 1.009...

  • Page 14: Model Number Description

    2 = Protective Coating 3 = Protective Coating w/ Finish Coat Digit 23 - Future Use 0 = None Digit 24 - Unit Connection 1 = Disconnect Switch 2 = Terminal Block 3 = Dual Point Power (2 Blocks) PKG-PRC002-EN...
  • Page 15 Digit 6 - Sensors (Field Installed) A = BAYSENS017 - Zone Temp Only (CV and VAV) B = BAYSENS013 - Zone Temp with Timed Override Button (CV and VAV) PKG-PRC002-EN Selection Procedure Digit 29 - Water Piping D = Left Hand Basic Piping...
  • Page 16 Digit 14 - Unit Isolators 0 = None A = Spring Isolators B = Isopads Digit 15 - Panels 0 = None 1 = Louvered Panels Digit 16 - Agency Listing 0 = None U = With UL Listing PKG-PRC002-EN...

  • Page 17: General Data

    (508 X 508 X 51) (508 X 508 X 51) Notes: 1. Compressors are Trane 3D ® scroll. 2. EER and IPV are rated in accordance to the ARI Standard 340/360-93. Based on 80/67 F (26.7/19.4 C) to the evaporator coil, nominal airflow and 85-95 F (29.4/35 C) condenser water.
  • Page 18 (508 X 635 X 51) Notes: ® 1. Compressors are Trane 3D scroll. 2. EER and IPV are rated in accordance to the ARI Standard 340/360-93. Based on 80/67 F (26.7/19.4 C) to the evaporator coil, nominal airflow and 85-95 F (29.4/35 C) condenser water.
  • Page 19 Size (mm) CCRC/CIRC Unit Match Notes: 1. Compressors are Trane 3D ® scroll. 2.EER and IPLV are rated in accordance to the ARI Standard 340/360-93. Based on 80/67 F (26.7/19.4 C) to the evaporator coil, nominal airflow and 95 F (35 C) ambient.
  • Page 20 2. Operating charge is for entire system, which includes the air–cooled self–contained, remote air–cooled condenser, and 25 feet of interconnecting refrigerant piping. 3. At conditions of 95 F (35 C), condenser storage capacity is 95% full. 4. To determine the correct amount of refrigerant needed for a particuliar application, reference the Trane Reciprocating Refrigeration Manual . General Data (157.7)
  • Page 21 1. Hot water and steam heating coils have Prima-Flo fins without turbulators. 2. For coil capacites, use TOPSS ™ (Trane Official Product Selection Program). 3. Full capacity coils consist of two coils stacked and piped in parallel. Heating Coil SCRF 20 - 35...

  • Page 22: Performance Data

    4. Refer to Page 24 for pressure drop through heating coils. Performance Data Chart PD-2. Airside Pressure Drop SCWF/SIWF 29, 32 and SCRF/SIRF 25, 29 Chart PD-4. Airside Pressure Drop SCWF/SIWF 42, 46 and SCRF/SIRF 40 Airside Pressure Drops PKG-PRC002-EN...
  • Page 23 2. Air pressure drop through electric heat is 0.5 inches WC. 3. Refer to Page 25-26 for pressure drop through flexible horizontal discharge plenum. 4. Refer to Page 24 for pressure drop through heating coils. PKG-PRC002-EN Performance Data Chart PD-6. Airside Pressure Drop Chart PD-8.
  • Page 24 Heating Coils Chart PD-9. Airside Pressure Drop Steam Coil 20 to 80-Ton Units For NS Coils Performance Data Chart PD-10. Airside Pressure Drop Hot Water Coil 20 to 80-Ton Units Airside Pressure Drops PKG-PRC002-EN...

  • Page 25: Discharge Plenum

    Note: “Primary” refers to the side where the static pressure drop was measured. This value must be added to the unit external static pressure for proper fan horsepower determination. PKG-PRC002-EN Performance Data Chart PD-11. Airside Pressure Drop Standard Height Discharge Plenum 42 to 80 Ton Unit Chart PD-13.
  • Page 26 Discharge Plenum Performance Data Chart PD-14. Airside Pressure Drop Extended Height Discharge Plenum 20 to 38-Ton Unit Chart PD-15. Airside Pressure Drop Extended Height Discharge Plenum 42 to 80-Ton Unit Airside Pressure Drops PKG-PRC002-EN...
  • Page 27 Airside Economizer with Standard Damper PKG-PRC002-EN Performance Data Chart PD-16. Airside Pressure Drop Airside Economizer with Standard Damper 20 to 38-Ton Unit Chart PD-17. Airside Pressure Drop Airside Economizer with Standard Damper 42 to 80-Ton Unit Airside Pressure Drops...
  • Page 28 Airside Economizer with T raq™ Damper Performance Data Chart PD-18. Airside Pressure Drop Airside Economizer with Traq™ Damper Air Flow Rate CFM Airside Pressure Drops PKG-PRC002-EN...

  • Page 29: Waterside Pressure Drops

    Chart PD-21. Waterside Pressure Drop SCWF/SIWF 35, 38 Note: Each curve provides total water pressure drop through the entire unit including all accessories and internal valves and piping. Do not add curves together. PKG-PRC002-EN Performance Data Chart PD-20. Waterside Pressure Drop Chart PD-22.
  • Page 30 Note: Each curve provides total water pressure drop through the entire unit including all accessories and internal valves and piping. Do not add curves together. Performance Data Chart PD-24. Waterside Pressure Drop Chart PD-26. Waterside Pressure Drop Waterside Pressure Drop SCWF/SIWF 65 SCWF/SIWF 80 PKG-PRC002-EN...

  • Page 31: Water-Cooled Units

    PKG-PRC002-EN Performance Data Table PD-1. CFM Capacity Correction Table Cfm Compared To Rated Quanitity -20% -10% DX Cooling -20% -10% Waterside Economizer Water-Cooled Cooling Sensible Capacity Capacity Multiplier Multiplier 0.970 0.910 0.985 0.955 1.000 1.000 1.005 1.014 1.009 1.027 0.970 0.910...
  • Page 32 165.0 104.8 59.7 52.3 139.3 139.3 60.6 51.3 144.1 144.1 59.8 50.6 147.6 147.6 59.2 52.5 139.6 139.6 60.6 51.6 144.4 144.4 59.8 50.9 147.9 147.9 59.2 53.9 151.1 134.6 61.0 53.0 159.8 137.4 60.3 52.2 166.7 139.7 59.8 PKG-PRC002-EN...
  • Page 33 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-4. SCWF/SIWF 20 Gross Cooling Capacity - 8,000 cfm, 60 gpm...
  • Page 34 175.3 112.4 59.6 52.2 149.5 149.5 60.4 51.2 154.4 154.4 59.7 50.4 158.1 158.1 59.1 52.3 149.7 149.7 60.4 51.4 154.7 154.7 59.7 50.7 158.4 158.4 59.1 53.7 161.4 145.1 60.9 52.8 170.1 147.9 60.2 52.0 177.3 150.2 59.6 PKG-PRC002-EN...
  • Page 35 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-7 — SCWF/SIWF 22 Gross Cooling Capacity - 8,800 cfm, 66 gpm...
  • Page 36 184.6 121.6 59.6 51.9 163.9 163.9 60.2 50.9 168.9 168.9 59.5 50.6 170.6 170.6 59.3 52.0 164.2 164.2 60.2 51.1 169.2 169.2 59.5 50.8 170.9 170.9 59.3 53.3 175.9 160.0 60.6 52.4 184.5 162.8 59.9 52.1 187.7 163.8 59.7 PKG-PRC002-EN...
  • Page 37 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-10. SCWF/SIWF 25 Gross Cooling Capacity - 10,000 cfm, 75 gpm...
  • Page 38 235.0 150.0 59.6 52.2 199.5 199.5 60.5 51.3 205.9 205.9 59.7 50.5 211.0 211.0 59.1 52.4 199.9 199.9 60.5 51.5 206.3 206.3 59.7 50.7 211.5 211.5 59.1 53.8 216.1 193.2 60.9 52.9 227.6 196.9 60.2 52.1 237.6 200.2 59.7 PKG-PRC002-EN...
  • Page 39 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-13. SCWF/SIWF 29 Gross Cooling Capacity - 11,600 cfm, 87 gpm...
  • Page 40 242.5 158.7 59.8 52.0 214.0 214.0 60.3 51.1 220.9 220.9 59.6 50.8 223.0 223.0 59.4 52.2 214.4 214.4 60.4 51.3 221.3 221.3 59.6 51.0 223.5 223.5 59.4 53.5 230.4 208.3 60.8 52.6 242.5 212.2 60.1 52.3 246.5 213.5 59.8 PKG-PRC002-EN...
  • Page 41 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-16. SCWF/SIWF 32 Gross Cooling Capacity - 12,800 cfm, 96 gpm...
  • Page 42 241.0 158.6 59.6 51.5 250.1 161.5 59.2 51.4 215.0 215.0 59.9 50.6 221.3 221.3 59.2 50.0 225.3 225.3 58.8 51.6 215.4 215.4 59.9 50.8 221.7 221.7 59.2 50.2 225.7 225.7 58.8 52.9 232.4 209.6 60.3 52.0 243.8 213.2 59.6 PKG-PRC002-EN...
  • Page 43 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-19. SCWF/SIWF 35 Gross Cooling Capacity - 14,000 cfm, 105 gpm...
  • Page 44 256.4 168.9 59.3 51.3 227.1 227.1 59.8 50.4 233.8 233.8 59.1 50.2 235.3 235.3 59.0 51.4 227.5 227.5 59.8 50.6 234.2 234.2 59.1 50.4 235.7 235.7 59.0 52.7 244.3 222.3 60.1 51.8 256.2 226.2 59.5 51.6 259.0 227.1 59.4 PKG-PRC002-EN...
  • Page 45 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-22. SCWF/SIWF 38 Gross Cooling Capacity - 15,200 cfm, 114 gpm...
  • Page 46 335.5 213.5 59.7 52.2 286.7 286.7 60.5 51.2 295.0 295.0 59.7 50.6 299.9 299.9 59.2 52.4 287.3 287.3 60.5 51.5 295.6 295.6 59.7 50.9 300.5 300.5 59.2 53.9 313.2 276.2 61.0 52.9 328.7 281.3 60.2 52.3 338.5 284.5 59.8 PKG-PRC002-EN...
  • Page 47 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-25. SCWF/SIWF 42 Gross Cooling Capacity - 16,800 cfm, 126 gpm...
  • Page 48 345.2 224.7 59.9 52.0 305.3 305.3 60.3 51.0 314.0 314.0 59.6 50.9 315.3 315.3 59.4 52.2 305.9 305.9 60.3 51.2 314.6 314.6 59.6 51.1 315.9 315.9 59.4 53.6 331.7 295.6 60.8 52.6 347.6 300.7 60.0 52.5 350.0 301.5 59.9 PKG-PRC002-EN...
  • Page 49 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-28. SCWF/SIWF 46 Gross Cooling Capacity - 18,400 cfm, 138 gpm...
  • Page 50 423.9 267.8 59.7 52.3 357.9 357.9 60.5 51.2 368.3 368.3 59.7 50.5 376.1 376.1 59.1 52.5 358.6 358.6 60.5 51.5 369.0 369.0 59.7 50.8 376.9 376.9 59.1 54.0 391.6 344.3 61.0 53.0 411.1 350.7 60.3 52.1 427.1 355.9 59.7 PKG-PRC002-EN...
  • Page 51 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-31. SCWF/SIWF 52 Gross Cooling Capacity - 20,800 cfm, 156 gpm...
  • Page 52 441.8 285.6 59.8 52.0 386.1 386.1 60.3 51.0 397.1 397.1 59.6 50.7 400.8 400.8 59.3 52.2 386.8 386.8 60.3 51.3 397.9 397.9 59.6 50.9 401.6 401.6 59.3 53.7 419.7 373.6 60.8 52.7 439.8 380.2 60.1 52.3 447.0 382.5 59.8 PKG-PRC002-EN...
  • Page 53 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-34. SCWF/SIWF 58 Gross Cooling Capacity - 23,200 cfm, 174 gpm...
  • Page 54 482.5 312.3 59.3 51.8 417.1 417.1 60.1 50.8 428.5 428.5 59.4 50.1 436.9 436.9 58.9 51.9 417.9 417.9 60.1 51.0 429.3 429.3 59.4 50.3 437.7 437.7 58.9 53.3 450.5 406.1 60.5 52.3 470.8 412.7 59.8 51.6 486.9 417.9 59.3 PKG-PRC002-EN...
  • Page 55 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-37 . SCWF/SIWF 65 Gross Cooling Capacity - 26,000 cfm, 196 gpm...
  • Page 56 497.3 330.0 59.4 51.5 445.6 445.6 60.0 50.6 457.8 457.8 59.2 50.4 460.6 460.6 59.1 51.7 446.4 446.4 60.0 50.8 458.6 458.6 59.2 50.6 461.4 461.4 59.1 53.0 478.3 436.6 60.3 52.0 499.3 443.4 59.6 51.8 504.4 445.1 59.5 PKG-PRC002-EN...
  • Page 57 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-40. SCWF/SIWF 72 Gross Cooling Capacity - 28,800 cfm, 216 gpm...
  • Page 58 514.6 340.1 59.1 51.1 460.4 460.4 59.6 50.2 472.2 472.2 58.9 50.1 474.1 474.1 58.8 51.2 461.2 461.2 59.6 50.4 473.0 473.0 58.9 50.2 475.0 475.0 58.8 52.5 496.6 450.0 60.0 51.5 517.0 456.6 59.3 51.4 520.6 457.8 59.2 PKG-PRC002-EN...
  • Page 59 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-43. SCWF/SIWF 80 Gross Cooling Capacity - 29,800 cfm, 240 gpm...

  • Page 60: Air-Cooled Units

    123.3 288.7 118.4 272.9 273.1 263.2 263.3 252.7 252.7 290.4 228.6 278.0 223.7 264.8 218.5 316.2 176.8 302.7 172.0 288.4 167.1 288.7 288.7 278.5 278.6 267.6 267.7 292.7 275.9 280.9 270.2 268.5 263.6 316.0 225.3 302.5 220.5 288.2 215.5 PKG-PRC002-EN...
  • Page 61 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal and heat discharge pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-45. SCRF/SIRF 25 Gross Cooling Capacity - 11,600 cfm...
  • Page 62 159.5 367.9 153.0 354.5 354.6 341.1 341.1 326.8 326.8 372.8 304.2 356.1 297.5 338.7 290.5 405.0 233.0 386.7 226.6 367.6 220.1 375.1 375.2 361.1 361.1 346.3 346.3 377.6 367.3 362.5 356.6 346.8 344.2 404.8 299.9 386.7 293.4 367.7 286.8 PKG-PRC002-EN...
  • Page 63 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-47 . SCRF/SIRF 30 Gross Cooling Capacity - 14,000 cfm...
  • Page 64 425.0 273.4 404.2 265.4 197.5 462.9 190.2 440.4 182.5 422.4 406.7 406.7 389.9 390.0 360.2 425.5 352.5 405.0 344.3 276.5 462.5 269.1 440.1 261.4 446.9 430.7 430.7 413.3 413.3 435.8 431.7 426.0 413.2 413.3 355.1 462.3 347.7 440.1 339.8 PKG-PRC002-EN...
  • Page 65 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-49. SCRF/SIRF 40 Gross Cooling Capacity - 18,400 cfm...
  • Page 66 635.4 401.1 605.3 389.4 293.5 693.1 282.6 660.5 271.3 623.8 601.1 601.1 577.2 577.3 525.3 634.9 514.0 604.7 502.2 406.1 692.5 395.1 659.9 383.7 660.0 636.5 636.5 611.7 611.8 635.9 641.1 622.9 613.1 608.0 518.2 691.9 507.1 659.3 495.7 PKG-PRC002-EN...
  • Page 67 To determine static pressure to be used with these curves, add filter, economizer, flexible horizontal discharge and heat pressure drops to external duct static pressure. PKG-PRC002-EN Performance Data Table PD-51. SCRF/SIRF 60 Gross Cooling Capacity - 29,800 cfm...

  • Page 68: Heating Coils

    85.4 379.3 87.3 369.9 84.4 397.3 86.2 385.4 83.4 414.0 85.1 528.1 89.0 567.1 91.1 555.7 87.8 596.8 89.9 594.1 86.3 638.1 88.3 629.3 85.0 675.9 86.9 666.7 83.6 716.2 85.4 700.7 82.4 752.8 84.1 712.1 82.0 765.1 83.7 PKG-PRC002-EN...

  • Page 69: Controls

    New modular DDC controls with human interface (HI) panel make self-contained units more flexible and easier to operate. Controls are Trane-designed to work with Trane equipment for optimum efficiency. The factory installs and commissions each control component to ensure simple and reliable operation.
  • Page 70 This information can be edited only if certain options are field- installed or deleted from the unit. For example, if a Trane communication interface (TCI) module or ventilation override module (VOM) were field- installed, the unit configuration will require editing to reflect those options for proper unit operation.

  • Page 71: Sequence Of Operation

    If more than one VOM sequence is being requested, the sequence with the highest priority is initiated first. Priority schedule PKG-PRC002-EN Controls is that sequence “A” (unit off) is first, with sequence “E” (purge with duct pressure control) last.
  • Page 72 The generic building automation system module (GBAS) provides broad control capabilities for building automation ® systems other than Trane’s Tracer system. A field provided potentiometer or a 0-5 vdc signal can be applied to any of the inputs of the GBAS to provide the following inputs and outputs.
  • Page 73 PKG-PRC002-EN Controls Inlet guide vane assemblies installed on the supply fan inlet regulate fan capacity and limit horsepower at lower system air requirements.
  • Page 74 Unoccupied Zone Temperature Control Cooling and Heating Both cooling and heating modes can be selected to maintain unoccupied zone temperature deadbands. For unoccupied periods, heating, economizer operation, or compressor operation can be selectively locked out at the human interface panel. PKG-PRC002-EN...
  • Page 75 On units with an airside economizer, a call for cooling will modulate the fresh air dampers open. The rate of economizer PKG-PRC002-EN Controls modulation is based on deviation of the discharge temperature from setpoint, i.e., the further away from setpoint, the faster the fresh air damper will open.
  • Page 76 VAV boxes to the unoccupied output relay contacts on the unit’s RTM module board or by using changeover thermostats. Either of these methods will assure adequate airflow through the unit and satisfactory temperature control of the building. PKG-PRC002-EN...
  • Page 77 • Dual temperature setpoint levers allow you to set different cooling (blue lever) and heating setpoints (red lever). • Thermometer to indicate temperature in the zone. PKG-PRC002-EN Controls Dual setpoint, manual/automatic changeover sensor with system function lights, Accessory Model Number Digit 6 = F,...
  • Page 78 • Remote temperature sensing in the zone • A timed override button to move an ICS or building management system from it unoccupied to occupied mode. • Cancel button to cancel the unoccupied override command. PKG-PRC002-EN...

  • Page 79: Electrical Data

    1) fans and 2) compressors. If the rating value calulation does not equal a standard over current protective device rating, use the next lower standard rating as the maximum. PKG-PRC002-EN Electrical Data Table ED-1. Number of Compressors per Unit SCRF/SIRF 25 - 29...
  • Page 80 Amps 21.7 21.7 21.7 63.8 27.7 63.8 27.7 32.5 32.5 87.4 37.9 87.4 37.9 108.3 46.9 108.3 46.9 133.2 57.7 133.2 57.7 133.2 57.7 MFS. LRA (ea.) 20.7 17.43 7.65 5.95 20.7 25.63 11.25 8.75 20.7 33.83 14.85 11.55 PKG-PRC002-EN...

  • Page 81: Dimensions And Weights

    20-38 Ton Self-Contained PKG-PRC002-EN Dimensions and Weights Self-Contained 20-38 Tons...
  • Page 82 40-80 Ton Self-Contained Dimensions and Weights Self-Contained 40-80 Ton PKG-PRC002-EN...
  • Page 83 Detail A Electrical Connections Detail B Discharge Dimensions PKG-PRC002-EN Dimensions and Weights 40 3/8” (20-38 Ton) (1026 mm) Discharge Dimensions - English - (inches) Unit Tons SXWF 20-25 SXRF 20 SXWF 29-32 SXRF 25-29 SXWF 35-38 SXRF 30-35 SXWF 42-80...
  • Page 84 (Optional) Low Ambient Damper (One Damper Per Circuit) Refrigerant Line Connections Frontal View (Optional) Low Ambient Damper (One Damper Per Circuit) Refrigerant Line Connections Frontal View (Optional) Low Ambient Damper (One Damper Per Circuit) Refrigerant Line Connections Frontal View PKG-PRC002-EN...
  • Page 85 Refrigerant and Electrical Connections PKG-PRC002-EN Dimensions and Weights CIRCUIT 2 Front View Looking at Control Panel Electrical Connections - English - (inches) Unit CCRC/CIRC 20-32 CCRC/CIRC 35-40 CCRC/CIRC 50-60 Electrical Connections - Metric - (mm) Unit CCRC/CIRC 20-32 CCRC/CIRC 35-40...

  • Page 86: Hot Water Coil

    NPT fittings. Main Control Panel Vacuum Trap Connection Notes: Condensate Return 1. All coils are factory Vacuum Trap Connection mounted, piped, and wired. Steam Inlet Connection 2. All piping connections are 1- ” (38.1mm) Condensate Return female NPT fittings. PKG-PRC002-EN...
  • Page 87 Flexible Horizontal Discharge Plenum PKG-PRC002-EN Dimensions and Weights Plenum Dimensions - English - (inches) Unit Sizes 20-38 Std. Ext. Unit Sizes 42-80 Std. Ext. Plenum Dimensions - Metric - (mm) 1648 Unit Sizes 20-38 Std. 1648 Ext. 1648 2042 Unit SizesI 42-80 Std.
  • Page 88 Airside Economizer Dimensions and Weights Airside Economizer PKG-PRC002-EN...
  • Page 89 2651 40 SXRF 1457 2197 2651 46 SXWF 50 SXRF 1457 2197 2651 60 SXRF 52-80 SXWF PKG-PRC002-EN Dimensions and Weights F (1) F (2) G (1) G (2) H (1) F (1) F (2) G (1) G (2) H (1)
  • Page 90 (114 mm) (70 mm) Dual Setpoint, Manual/Automatic Changeover Sensor BAYSENS008 Field-Installed Zone Sensors (114 mm) (70 mm) Zone Temperature Sensor W/Timed Override Buttons BAYSENS013 (114 mm) (70 mm) Zone Temperature Sensor W/Timed Override Buttons and Local Setpoint Adjustment BAYSENS014 PKG-PRC002-EN...
  • Page 91 PKG-PRC002-EN Dimensions and Weights (114 mm) (70 mm) Zone Temperature Sensor Only BAYSENS017 (95mm) (140mm) Programmable Night-Setback Sensor BAYSENS020B Field-Installed Zone Sensors (114 mm) (70 mm) Single Setpoint Sensor With System Function Lights BAYSENS021 (95 mm) (140 mm) Programmable Night Setback Sensor...

  • Page 92: Service Clearances

    NEC code requirement Fan service/removal Filter, refrigeration and waterside component service Non VFD w/ open return Non VFD w/ ducted return w/ VFD 7.5 to 20 HP w/ VFD 25 to 50 HP Provides uniform airflow 18” (457.2mm) Minimum See Table PKG-PRC002-EN...
  • Page 93 CCRC/CIRC 20, 29 48” (1066 mm) Top View CCRC/CIRC 35, 40 96” (2132 mm) Top View CCRC/CIRC 50, 60 48” (1066 mm) PKG-PRC002-EN Dimensions and Weights 96” (2132 mm) 96” (2132 mm) 96” (2132 mm) 96” (2132 mm) 96” (2132 mm) 96”...
  • Page 94 200V 26 (12) 460V 26 (12) 200V 75 (34) 460V 26 (12) 200V 75 (34) 460V 31 (14) 200V 126 (57) 460V 75 (34) 200V 126 (57) 460V 75 (34) 200V 126 (57) 460V 75 (34) 460V 126 (57) PKG-PRC002-EN...

  • Page 95: Mechanical Specifications

    The evaporator coil shall be seamless copper tubes expanded into aluminum fins. Tubes shall be ½-inch (13mm) OD with internally enhanced surfaces. Coil shall have staggered tube arrangement PKG-PRC002-EN Mechanical Specifications with intertwined circuiting and no more than 12 fins per inch.
  • Page 96 The damper is controlled by the air-cooled unit’s DDC controller. Louvered Coil Guards Option The unit coils shall be covered with a factory installed decorative louvered grill type panel for protection. Agency Listing The unit shall have the US/Canada Underwriter’s Laboratory agency listing. PKG-PRC002-EN...

  • Page 97: Options

    (VFD). The VFD safely varies the fan motor speed to allow PKG-PRC002-EN Mechanical Specifications the motor to meet the dynamic requirements at the motor shaft and meet the system static.
  • Page 98 35 F (2 C). The minimum valve position to maintain minimum condenser flow rates is user-defined at the human interface. This valve drives closed if the unit shuts down or if a power failure occurs. PKG-PRC002-EN...
  • Page 99 A three-way modulating valve, actuator, manifold piping, and automatic air vent are also factory installed. The coil is a Trane type WC, constructed of -inch (16 mm) OD copper tubes arranged in a parallel pattern.
  • Page 100 VOM to close, thus causing the programmed sequence to occur. Trane Communication Interface (TCI) The TCI provides interface to a Trane Integrated Comfort™ system (ICS). It allows remote control and monitoring of the self-contained unit using a personal computer with Tracer ®...
  • Page 101 File Number www.trane.com Supersedes For more information contact Stocking Location your local Trane office or e-mail comfort@trane.com TheTrane Company has a policy of continuous product improvement and reserves the right to change design and specifications without notice. PKG-PRC002-EN PL -UN-PKG-PRC002-EN-1201...
