Summary of Contents for Blaupunkt DENVER Denver CD70

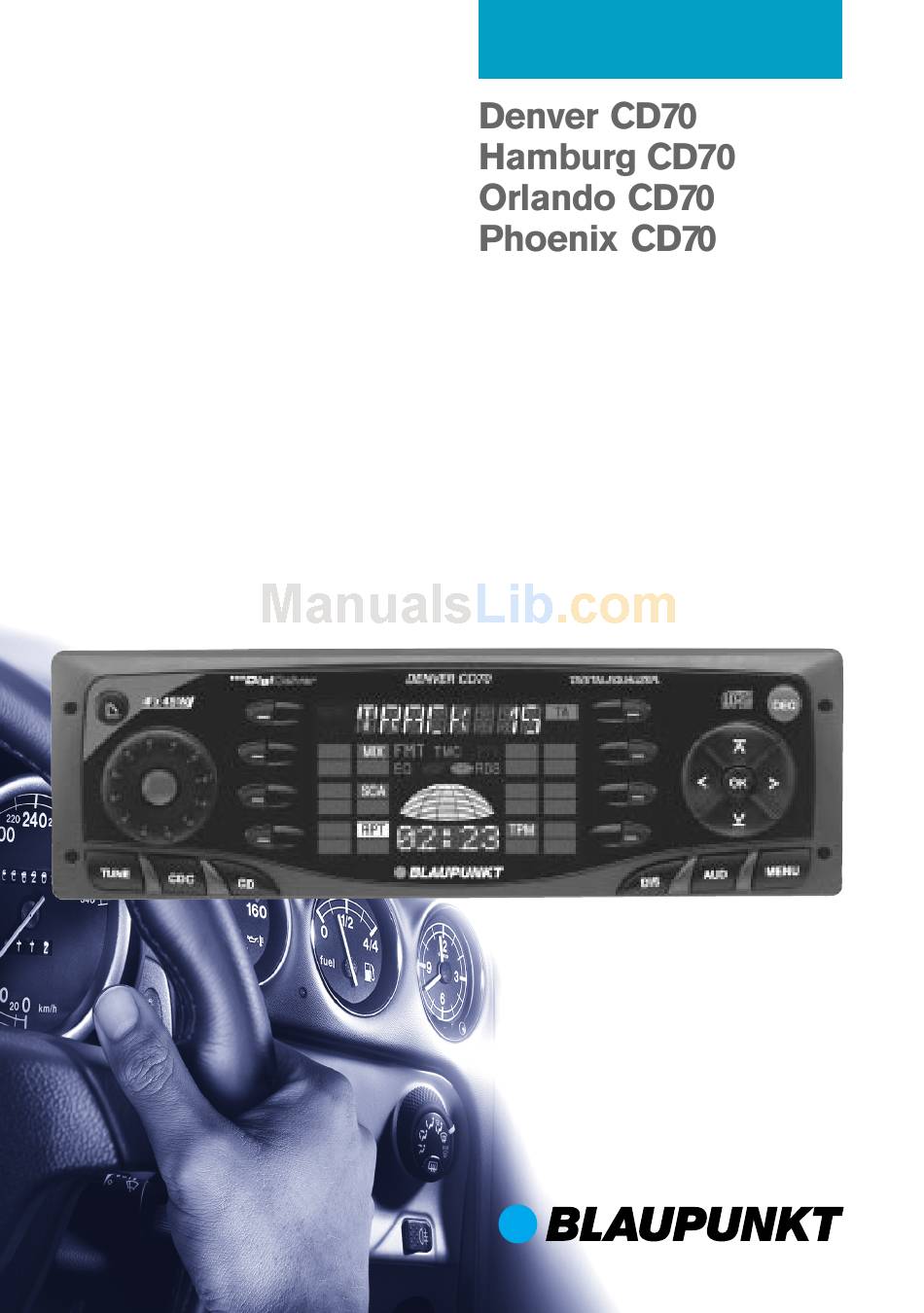

- Page 1 Radio / CD Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
- Page 4 button for opening the control unit Button for switching the device on and off and for muting the device Volume control Softkeys. The function of the Softkeys depends on the contents of the dis- play at the time OK button for confirming menu entries and for leaving the menu DEQ button for calling up the equaliz- er menu...
-
Page 5: Table Of Contents
Note ... 34 Road safety ... 34 Fitting ... 34 Accessories ... 34 Guarantee ... 34 International telephone information ... 34 KeyCard Theft Protection ... 35 Inserting the KeyCard ... 35 Removing the KeyCard ... 35 “Training” a second KeyCard / Replacing the KeyCard ... -
Page 6: Note
CDC A 06, CDC A 08, CDC A 072 or IDC A 09. If an adapter cable is used (Blaupunkt no. 7 607 889 093) the CDC A 05 or CDC A 071 CD changers can also be connected. - Page 7 A KeyCard is included with your car radio. The radio can also be operated with a sec- ond KeyCard. If one KeyCard becomes lost or damaged you can obtain a replacement through your Blau- punkt dealer. If you use two KeyCards, the settings of the first KeyCard are adopted by the first Key- Card.
- Page 8 button, 7, until Press the “LEARN KC” appears in the display. button, 7. Press the “CHANGE” appears in the display. Remove the first KeyCard. Insert the new KeyCard. “LEARN OK” appears in the display. To leave the menu Press the MENU button, 8. The radio can now be operated with the new KeyCard.
-
Page 9: Keycard Theft Protection
Using the supplied KeyCard you can show the Radio Passport data such as the device name, type number (7 6 ...) and the device number in the display. Press the MENU button, 8. button, 7, until Press the “LEARN KC” appears in the display. button, 7. - Page 10 The volume can be adjusted in steps from 0 (off) to 66 (maximum). To increase the volume, turn the volume control to the right. To reduce the volume, turn the volume control to the left. The volume level of the device when it is switched on can be adjusted.
-
Page 11: Tone And Volume
Note: You can make separate adjustments to the bass, treble and loudness for each audio source. Press the AUD button, 9. “BASS” appears in the display. buttons, 7, in order Press the to adjust the bass. When you have finished the adjustment Press the AUD button, 9. - Page 12 You can adjust the display to its location in your vehicle and to your taste. Press the MENU button, 8. button, 7, as often Press the as is necessary for “ANGLE” to appear in the display. Adjust the viewing angle with the key, 7.
-
Page 13: Radio Operation
This device is equipped with an RDS radio receiver. Many of the FM stations that can be received transmit a signal in addition to the program itself that contains information such as the name of the station and the type of program (PTY). - Page 14 This radio receives stations in the VHF (FM) waveband as well as MW and LW (AM) sta- tions. Three memory levels are available for the FM waveband, and one memory level is available for each of the MW and LW bands. Six stations can be stored on each memory level.
-
Page 15: Setting The Station
Choose the desired memory level from FM I, FM II, FMT or one of the other wavebands, MW or LW. Tune in the desired station as described under “Setting the station”. Hold down the softkey, 4, indicating the station “ST1” - “ST6” in which the station is to be stored for longer than two seconds. - Page 16 Press the softkey, 4, indicating “SCA” again. The scanning process is stopped, and the last station sampled remains active. Press the MENU button, 8. button, 7, as often Press the as is necessary for “SCANTIME” to ap- pear in the display. Adjust the desired sampling time with key, 7.
- Page 17 Note: If no station is found with the chosen program type, a beep is sounded, and the display brief- ly shows “NO PTY”. The tuner returns to the most recently received station. Select a program type with the button, 7. In order to save a program type, hold down one of the softkeys, 4, indicating “ST1”...
-
Page 18: Traffic Information
When radio reception is poor you can switch the mode to mono. The changeover from ster- eo to mono is executed smoothly. The radio plays in stereo after being switched on. The selection of stereo or mono is made via the menu. - Page 19 You can play 12 cm-diameter commercial CDs on this device. So-called CD-Rs (“home-made” CDs) can also usually be played. However, because of the varying CD quality, Blaupunkt cannot buttons, guarantee correct function. Rewritable CDs (CD-RWs) cannot be played! There is a risk of damaging the CD...
-
Page 20: Cd Operation
button, 1. Press the The control unit opens to the front. Press the button on the opened con- trol unit. The CD is ejected. Carefully remove the CD. Note: If you do not remove the CD within 30 sec- onds it will be drawn back into the drive. Press one of the buttons in the arrow button group, 7, as often as needed for the number of the desired track to... -
Page 21: Naming Cds
Note: It is only possible for a CD name to be dis- played if the inserted CD has been provided with a name. Read the section on “Naming CDs”. If you wish to receive traffic announce- ments during CD operation, press the softkey, 4, indicating “TA”. - Page 22 In order to recognise your CDs more effec- tively, the car radio allows you to give individ- ual names to up to 30 CDs. The names may have a maximum of eight characters. If you attempt to assign more than 30 names, the display will show “FULL”.
- Page 23 On page 34 of this guide you can find which CD changers can be used with this device. You can also refer to your Blaupunkt dealer. Note: The operating instructions for your CD chang- er will provide information about handling CDs, inserting them and operating the CD changer.
- Page 24 In order to play the tracks on all the inserted CDs in a random sequence Press the softkey, 4, indicating “MIX” again. “MIX MAG” appears briefly on the display. Note: The CDC A 08 and the IDC A 09 will make random selections from all the CDs and all the tracks in the changer.
- Page 25 Hold down the OK button, 5. After four seconds “DELETING” appears on the display. Release the OK button 5. The CD name has been deleted. Press the MENU button, 8, or OK, 5. Listen to a CD in CD changer mode. Press the MENU button, 8.
- Page 26 You can delete all the programmed lists of favourite tracks for all CDs. A CD for which favourite tracks are pro- grammed must be inserted. Switch TPM on. Hold down the softkey, 4, indicating “CLR” for about eight seconds. “ALL CLR” appears briefly on the display, and all programmed lists have been cleared.
-
Page 27: Equalizer
Adjust the minutes with the ton, 7. Press the OK button, 5 or the MENU button, 8, to leave the menu. The set- tings are then saved. Press the MENU button, 8. button, 7, as often Press the as is necessary for “24 H MODE” or “12 H MODE”... - Page 28 Press the DEQ button, 6. Select the “LOW EQ”, “MID EQ” or “HIGH EQ” filter with the To select the frequency, press the button, 7. Adjust the level with the In order to select the next filter, first press the OK button, 5, then the button, 7.
- Page 29 Tone impression/problem Bass too quiet Bass sounds muddy Booming tone Unpleasant pressure Tone lacks depth, is aggressive, no stereo effect. Muffled tone Lack of clarity Instruments have no brightness Action Bass boost with Filter: “LOW EQ” Frequency: 50 to 100 Hz Level :+4 to +6 dB Reduce lower middle tones with Filters: “LOW EQ”, “MID EQ”...
-
Page 30: External Audio Sources
Your car radio has a TMC output that can be connected to Blaupunkt navigation systems. Your Blaupunkt dealer can tell you which nav- igation systems can be used with your car radio. If a navigation system is connected and a TMC station is received, TMC will light up in the display. - Page 31 We recommend that you use matching prod- ucts from the Blaupunkt or Velocity ranges. You can set a switch-on delay for connecting a pre-amplifier via the Pre-amp Out connec- tion. The maximum delay is four seconds.
