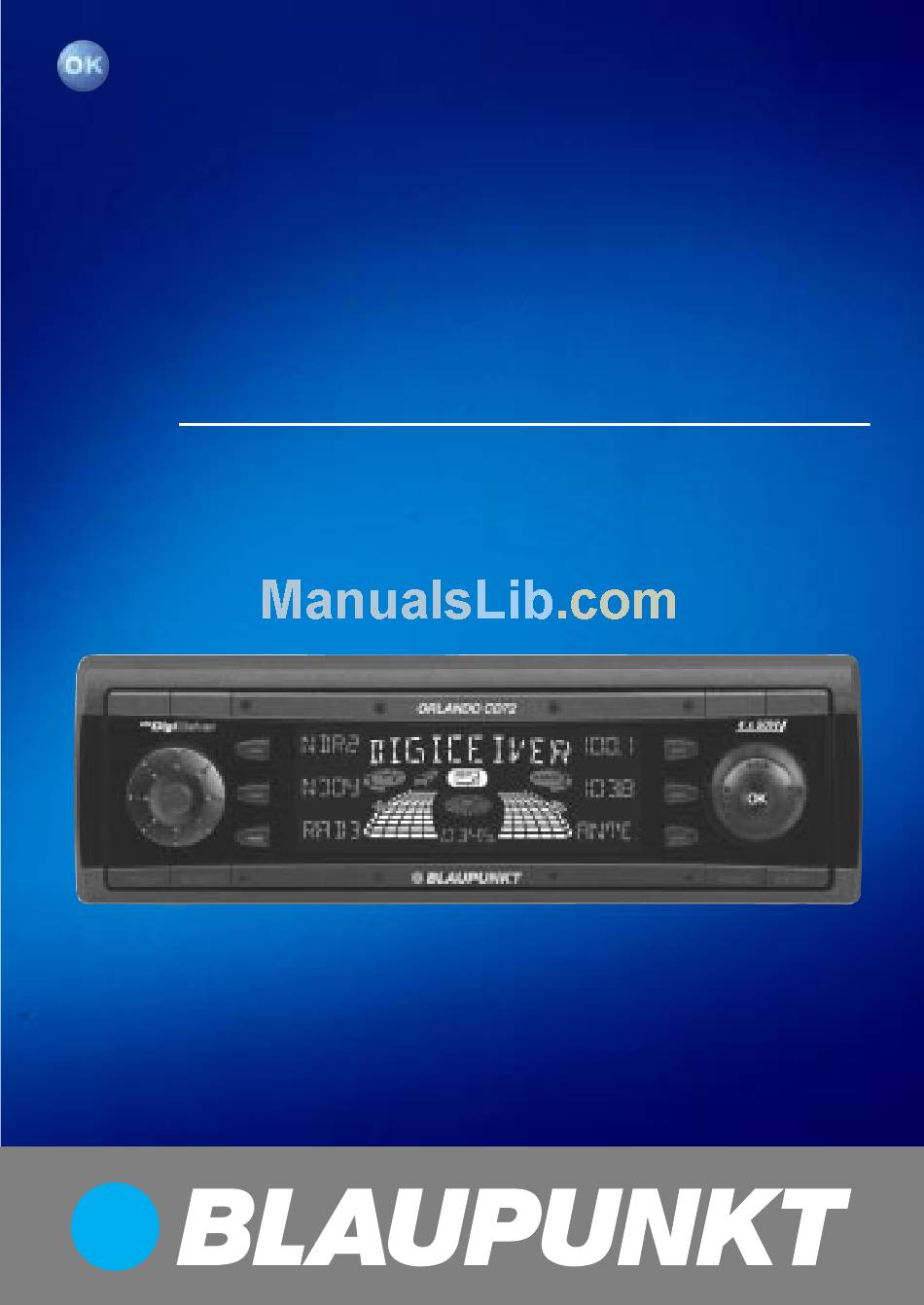

- Page 1 Radio / CD Radio / CD Miami CD72 Orlando CD72 Montreal CD73 US version Operating instructions 7 642 800 310 7 642 802 310 7 643 811 310 http://www.blaupunkt.com http://www.blaupunkt.com http://www.blaupunkt.com...
- Page 2 Open here...
- Page 4 CONTROLS Button, to switch the unit on/off, adjust the volume Button, to unlock the remov- able control panel (release pan- NEXT button to display the other pages in a menu and to switch to a different memory bank in ra- dio mode Softkeys: the function of the soft- keys depends on the current dis-...
-
Page 5: Table Of Contents
Notes and accessories ... 6 Road and traffic safety ... 6 Safety information ... 6 Installation ... 6 Accessories ... 6 Removable control panel ... 7 Switching on/off ... 8 Adjusting the volume ... 9 Sound and volume distribution settings ... 11 Adjusting the bass ... -
Page 6: Notes And Accessories
Amplifier All Blaupunkt amplifiers can be used. Calibration microphone You can use the calibration microphone (available as an accessory) for the equalizer’s automatic sound calibration feature. -
Page 7: Removable Control Panel
NOTES AND ACCESSORIES Compact Drive MP3 As an alternative to a CD changer, you can connect a Compact Drive MP3 to access MP3 music tracks. If you con- nect a Compact Drive MP3, you will first need to use a computer to store the MP3 music tracks on the Microdrive(tm) hard disk inside the Compact Drive MP3. -
Page 8: Switching On/Off
THEFT PROTECTION button 2. Press the The control panel latch mechanism opens. First, pull the control panel straight off the unit and then out towards the left. (For further details, read the safety information in the “Notes and accessories” chapter)! The unit switches off after the con- trol panel is removed. -
Page 9: Adjusting The Volume
You can find out from your Blaupunkt dealer which navigation systems can be used with your car radio. You can set the volume level at which telephone calls and the navigation voice output will be heard. - Page 10 ADJUSTING THE VOLUME Press the softkey 4 that is as- signed to the “TEL” display item for the telephone volume or “NAVI” display item for the voice output. Set the required volume using the volume control 1. Press the joystick OK 7 or the MENU button 8 to close the menu.
-
Page 11: Sound And Volume Distribution Settings
SOUND AND VOLUME DISTRIBUTION SETTINGS Sound and volume distribution settings Note: You can adjust the bass, treble and X- BASS individually for each audio source. Adjusting the bass Press the AUDIO button 9. “AUDIO 1” appears in the display. Press the softkey 4 assigned to the “BASS”... -
Page 12: Adjusting The Front/Back Volume Distribution (Fader)
VOLUME DISTRIBUTION Adjusting the front/back volume distribution (fader) To adjust the fader, press the AU- DIO button 9. “AUDIO 1” appears in the display. Press the softkey 4 assigned to the “FADE” display item. Move the joystick 7 up/right or down/left to adjust the front/back volume distribution. -
Page 13: Setting The Button Illumination Colour
Move the joystick 7 up/right or down/left to adjust the brightness. Press the joystick OK 7 or the MENU button 8 to close the menu. The settings are saved. Night-time display brightness Press the MENU button 8. Press the softkey 4 assigned to the “DISP”... -
Page 14: Radio Mode
RADIO MODE Radio mode Setting the tuner To ensure that the tuner works proper- ly, the device must be configured for your region. You can choose between Europe and the USA. By default, the tuner is set to the region in which the device was sold. -
Page 15: Selecting The Waveband / Memory Bank
To return to the main radio menu, press the TUNER button < or the joystick OK 7. The settings are saved. Selecting the waveband / memory bank This unit can receive programmes broadcast over the FM and AM wave- bands. There are four memory banks (FM1, FM2, FM3 and FMT) for the FM waveband and three memory banks (AM1, AM2 and AMT) for the AM wave-... -
Page 16: Setting The Sensitivity Of Station Seek Tuning
RADIO MODE Setting the sensitivity of station seek tuning You can choose whether to only tune into stations with a strong reception or to also tune into those with a weak re- ception. press the TUNER button < in ra- dio mode. -
Page 17: Programme Type (Pty)
Programme type (PTY) Besides transmitting the station name, some FM stations also provide informa- tion on the type of programme that they are broadcasting. Your radio can receive and display this information. For exam- ple, the programme types can be: CULTURE TRAVEL SPORT... -
Page 18: Optimising Radio Reception
RADIO MODE Optimising radio reception Treble reduction feature during interference (HICUT) The HICUT function improves the sound during poor radio reception. If interfer- ence occurs, the treble is automatically reduced thus reducing the interference level. Activating HICUT press the TUNER button < in ra- dio mode. -
Page 19: Cd Mode
CD-Rs (CDs that you have “burned” yourself) and CD-RWs can generally also be played. Due to the varying qual- ity of CDs, Blaupunkt cannot guaran- tee that this will work properly. To ensure the system functions proper- ly, only use CDs labelled with the com- pact disc logo. -
Page 20: Fast Searching (Audible)
CD MODE Fast searching (audible) To fast search backwards or forwards, Press and hold the joystick 7 in one direction (up and right for the next track or down and left for the previous track) until fast searching backwards/forwards begins. Random track play (MIX) Press the softkey 4 assigned to the “MIX”... -
Page 21: Cd Changer Mode (Optional)
To find out which CD changers / Com- pact Drive can be used with this unit, please refer to the "Accessories" chap- ter in these instructions or contact your Blaupunkt dealer. Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions supplied with your CD changer. -
Page 22: Repeating Individual Tracks Or Whole Cds (Repeat)
CD CHANGER MODE Repeating individual tracks or whole CDs (REPEAT) Press the MENU button 8. Press the softkey 4 assigned to the “CDC” display item. The CD changer functions menu opens. Press the softkey 4 assigned to the “RPT” display item. “RPT TRCK”... -
Page 23: Cd Changer Mode
Press the softkey 4 assigned to the “NAME” display item. You will now enter edit mode. If your chosen CD does not have a name yet, eight underscores will appear in the dis- play. The current input position flashes. Move the joystick 7 up or down to select the character you want. -
Page 24: Clock - Time
CLOCK - TIME CLOCK - Time Setting the clock To set the time, press the MENU button 8. Press the softkey 4 assigned to the “VARI” display item. Press the softkey 4 assigned to the “CSET” display item. The “CLOCK SET” menu appears. Press the softkey 4 assigned to the “HOUR”... - Page 25 Switching the equalizer on/off To switch the equalizer on/off, press the DEQ+ button 5. The equalizer menu is displayed. To activate the equalizer, Press the softkey 4 assigned to the “USER” or “PRE” display item and select an equalizer. To deactivate the equalizer, Press the softkey 4 assigned to the “OFF”...
- Page 26 EQUALIZER Selecting sound presets You can select sound presets for the following music types. VOCAL (“VOCL”) DISCO (“DISC”) ROCK TECHNO (“TECH”) CLASSIC (“CLAS”) The settings for these music styles have already been programmemed. Press the DEQ+ button 5. Press the softkey 4 assigned to the “PRE”...
- Page 27 Making adjustments Press the DEQ+ button 5. Press the softkey 4 assigned to the “USER” display item. Press the softkey 4 assigned to the display item of the equalizer that you want to configure. Press the softkey 4 assigned to the display item of the equalizer band that you want to configure.
-
Page 28: Preamplifier
The car radio provides connections for connecting an external preamplifier and a subwoofer. We recommend you use well-matched products from the Blaupunkt or Veloci- ty product ranges. EXTERNAL AUDIO SOURCES External audio sources In addition to the CD changer, you can also connect another external audio source equipped with a line output. -
Page 29: Specifications
Specifications Amplifier Output power: 4 x 26 watts sine in accordance with DIN 45 324 at 14.4 V 4 x 50 watts max. power Tuner Wavebands: 87.5 – 107,9 MHz AM : 530 – 1 710 kHz FM frequency response: 20 - 16,000 Hz Frequency response: 15 - 20,000 Hz... - Page 30 09-435 99236 01-4010 7320 01-89583 8394 01-4598830 02-369 6464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +55-19 3745 2773 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 260 WWW: http://www.blaupunkt.com...
