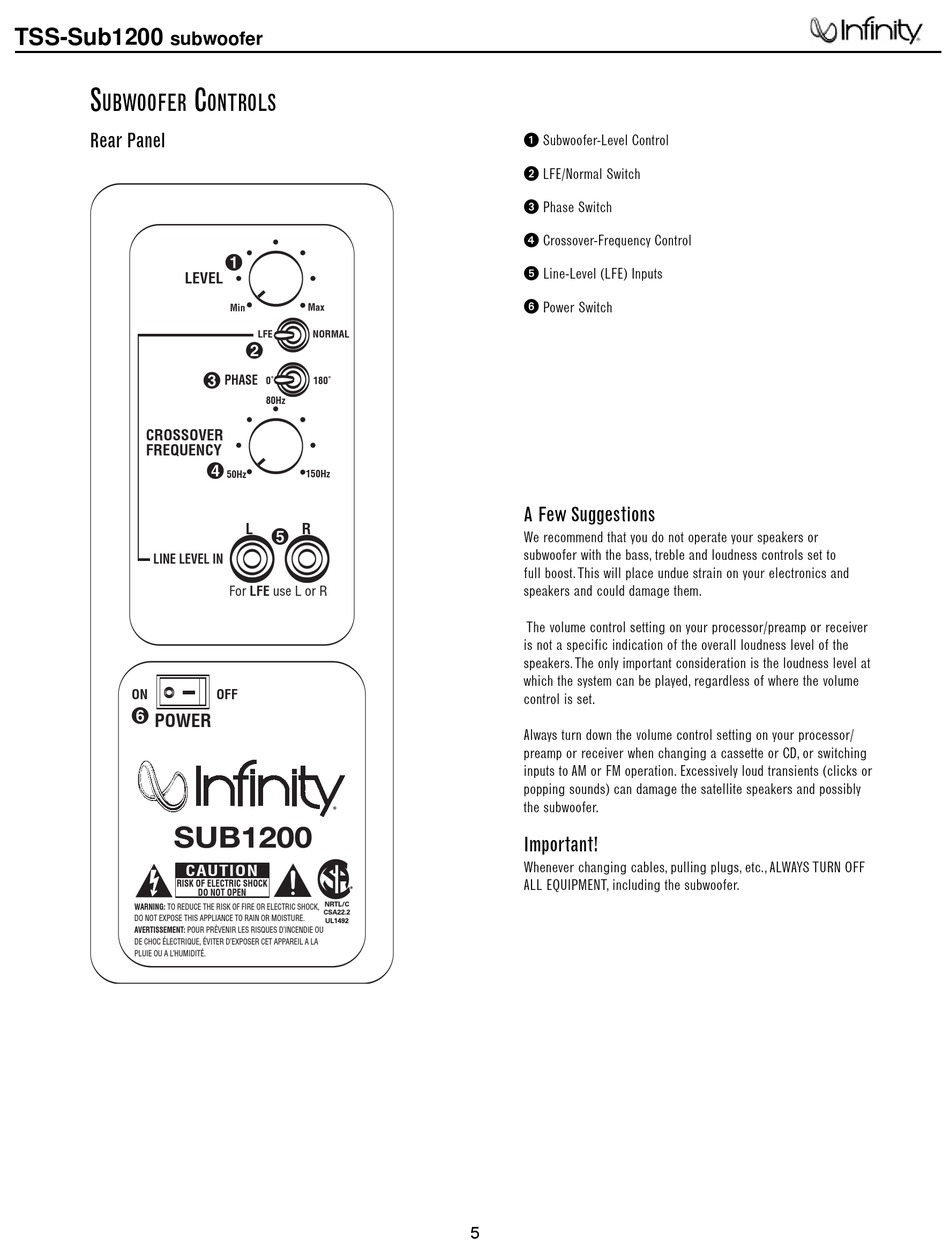

Controls - Infinity TSS-Sub1200 Service Manual

TSS-Sub1200
subwoofer
S C
UBWOOFER
Rear Panel
LEVEL
CROSSOVER
FREQUENCY
LINE LEVEL IN
ON
POWER
CAUTION
RISK OF ELECTRIC SHOCK
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
AVERTISSEMENT: POUR PRÉVENIR LES RISQUES D'INCENDIE OU
DE CHOC ÉLECTRIQUE, ÉVITER D'EXPOSER CET APPAREIL A LA
PLUIE OU A L'HUMIDITÉ.
ONTROLS
Max
Min
LFE NORMAL
PHASE
0˚ 180˚
80Hz
150Hz
50Hz
L R
For LFE use L or R
OFF
®
®
DO NOT OPEN
NRTL/C
CSA22.2
UL1492
Subwoofer-Level Control
LFE/Normal Switch
Phase Switch
Crossover-Frequency Control
Line-Level (LFE) Inputs
Power Switch
A Few Suggestions
We recommend that you do not operate your speakers or
subwoofer with the bass, treble and loudness controls set to
full boost.This will place undue strain on your electronics and
speakers and could damage them.
The volume control setting on your processor/preamp or receiver
is not a specific indication of the overall loudness level of the
speakers.The only important consideration is the loudness level at
which the system can be played, regardless of where the volume
control is set.
Always turn down the volume control setting on your processor/
preamp or receiver when changing a cassette or CD, or switching
inputs to AM or FM operation. Excessively loud transients (clicks or
popping sounds) can damage the satellite speakers and possibly
the subwoofer.
Important!
Whenever changing cables, pulling plugs, etc., ALWAYS TURN OFF
ALL EQUIPMENT, including the subwoofer.
