TSS-Sub1200
subwoofer

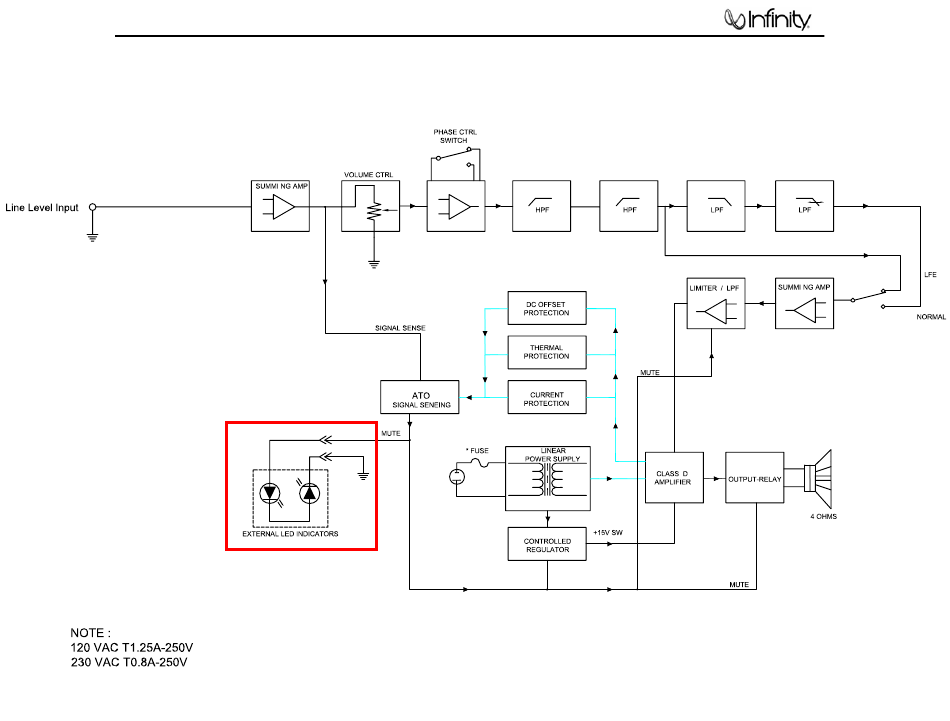

TSS SUB1200 BLOCK DIAGRAM
NOTE THIS LED IS NOT PRESENT ON EARLY VERSIONS OF THE TSS SUB1200
10
